PE54.30-U-2058RAA Electrical Function Schematic For Compass Indication

PE54.30-U-2058RAA Electrical Function Schematic For Compass Indication
- with CODE (528) COMAND with DVD changer
- with CODE (245) Electronic compass
- as of Model Year 2009

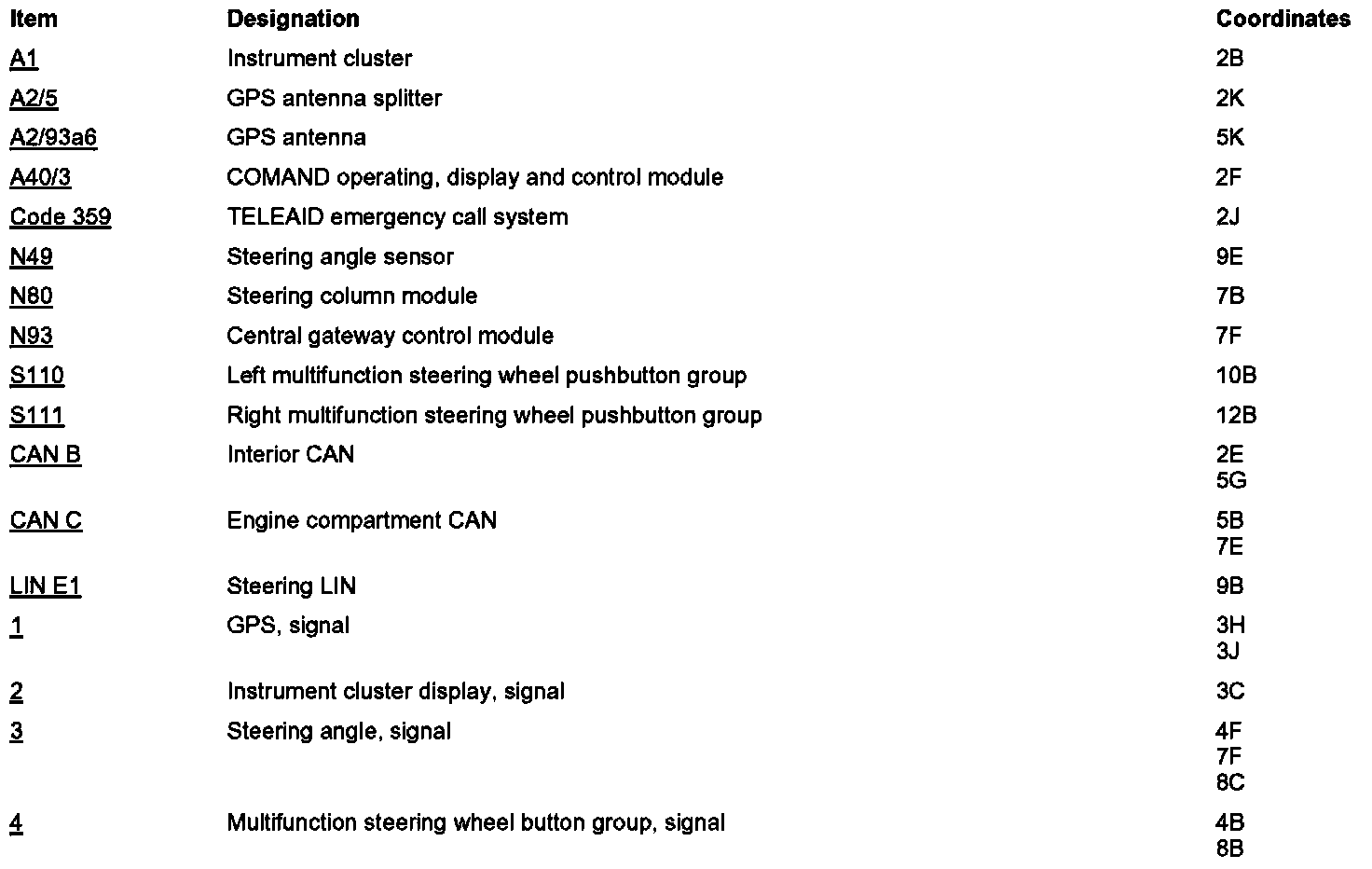

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
