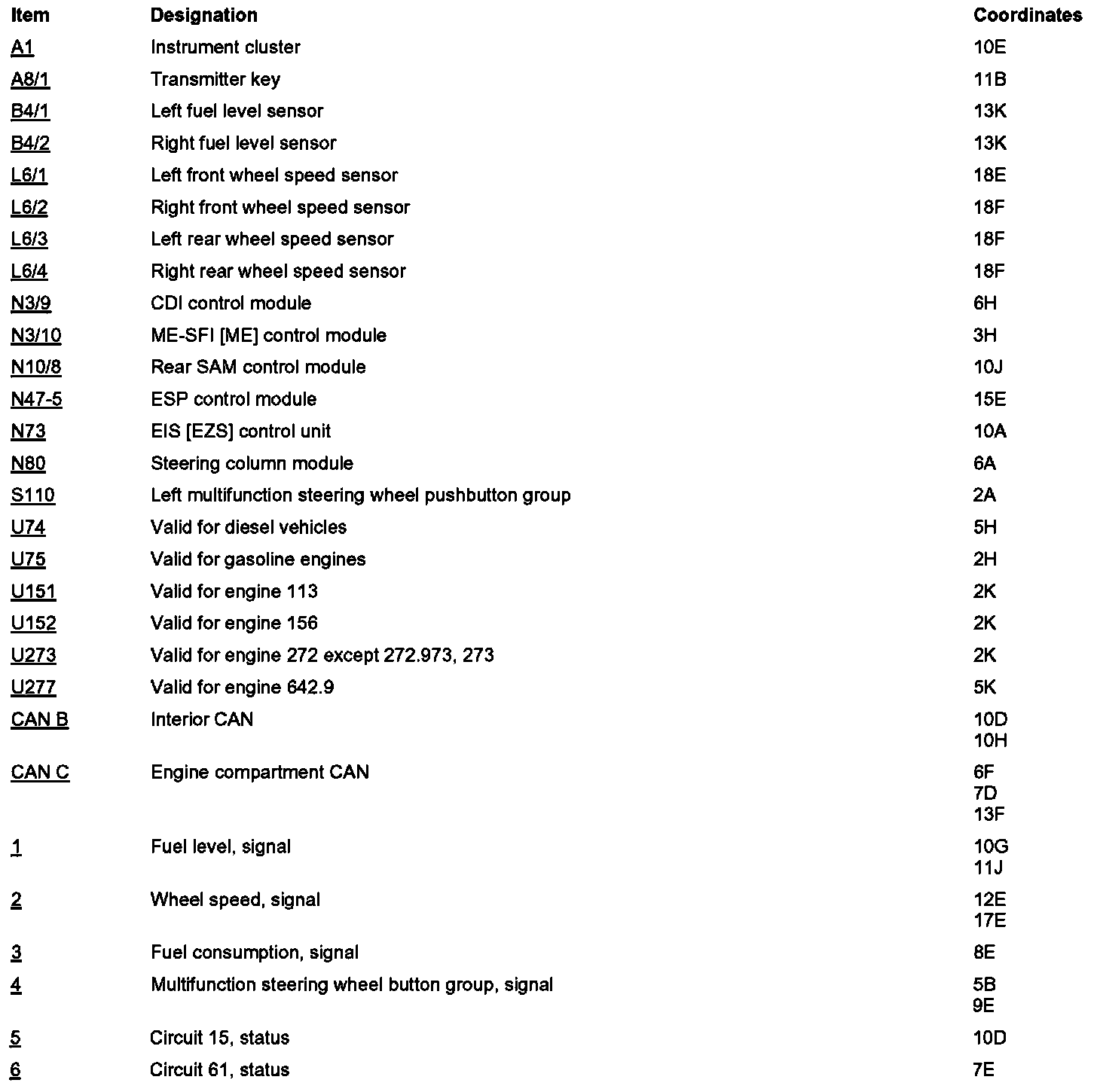

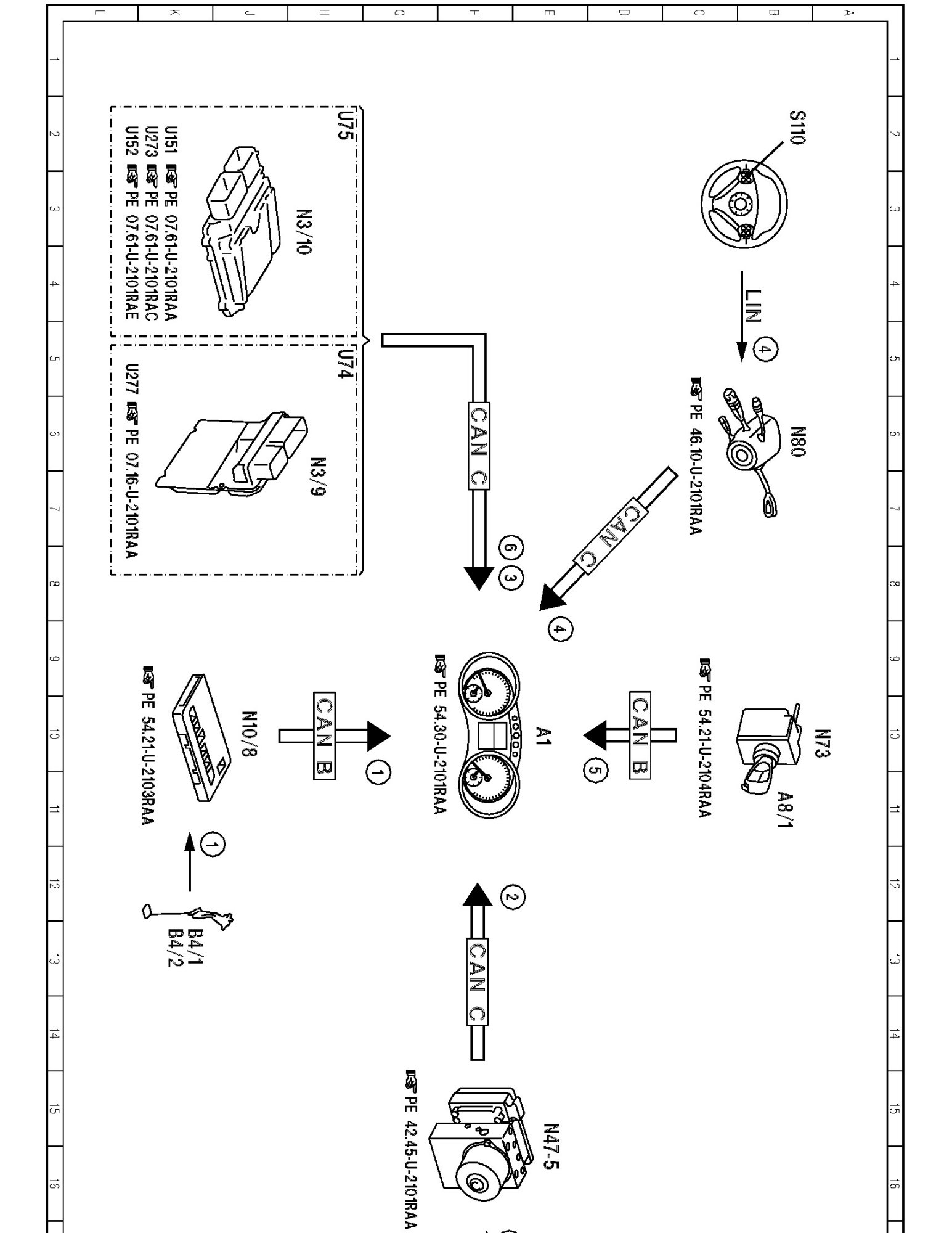

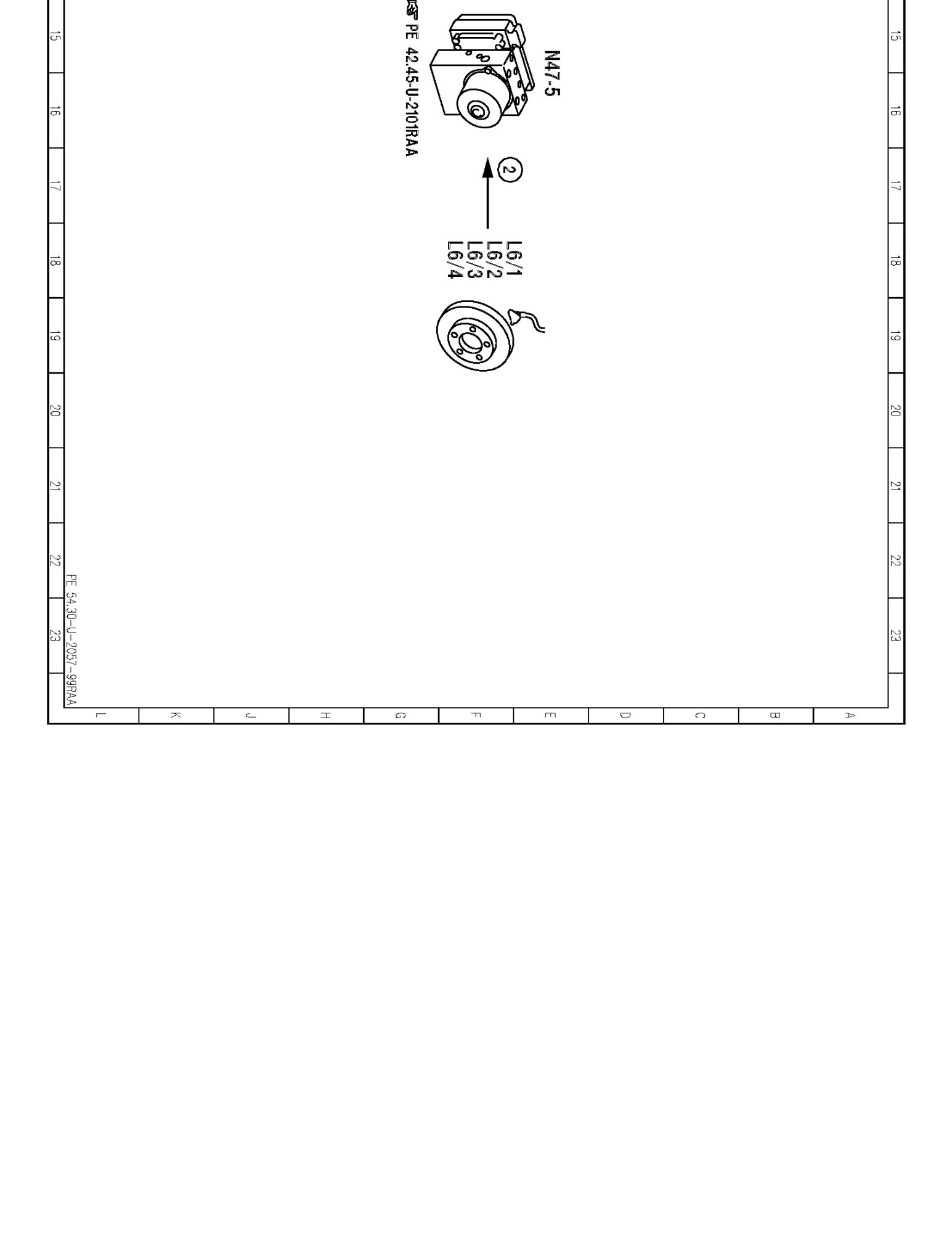

PE54.30-U-2057RAA Electrical Function Schematic For Instrument Cluster, Trip Computer

PE54.30-U-2057RAA Electrical Function Schematic For Instrument Cluster, Trip Computer
- as of model year 2009














Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
