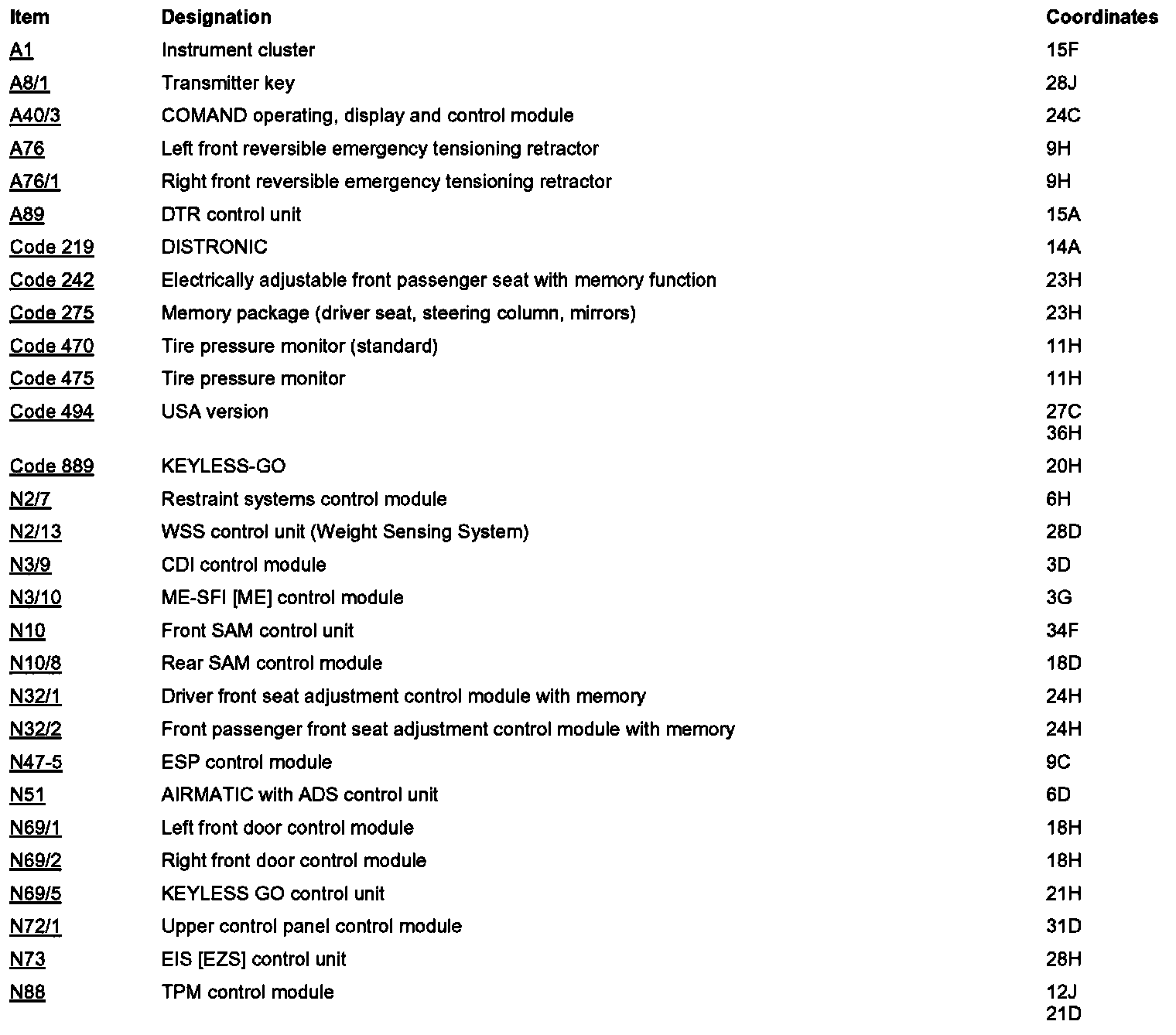

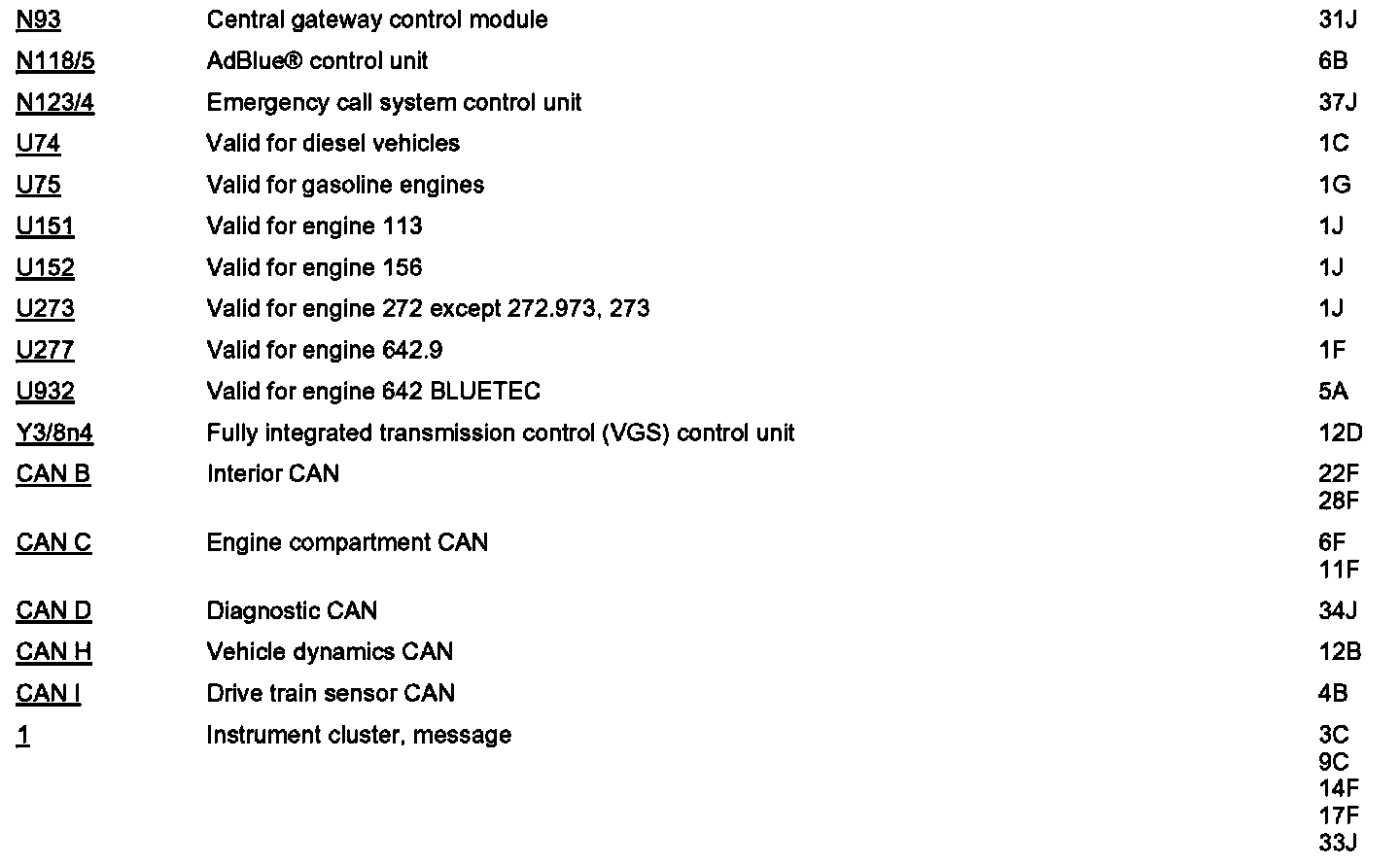

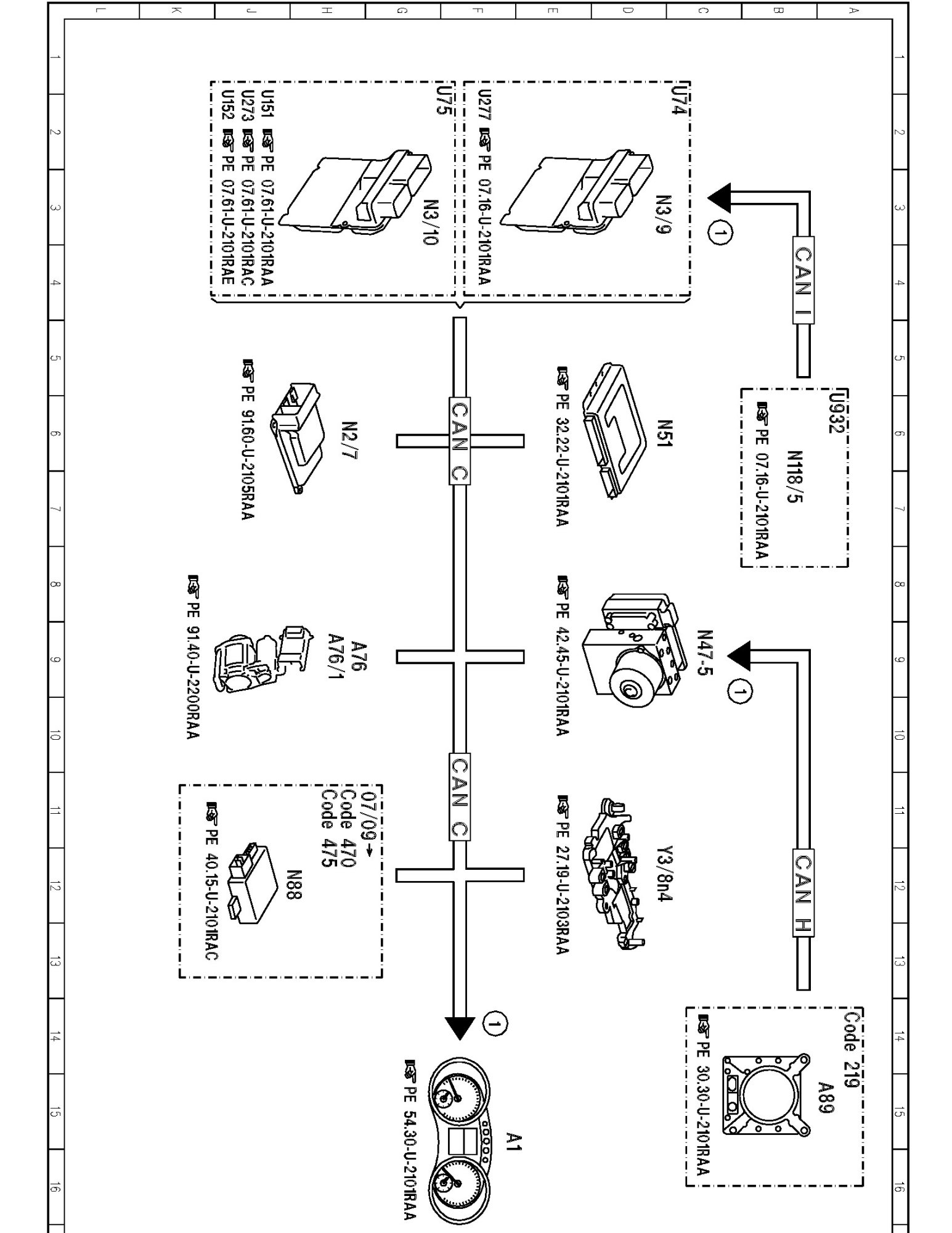

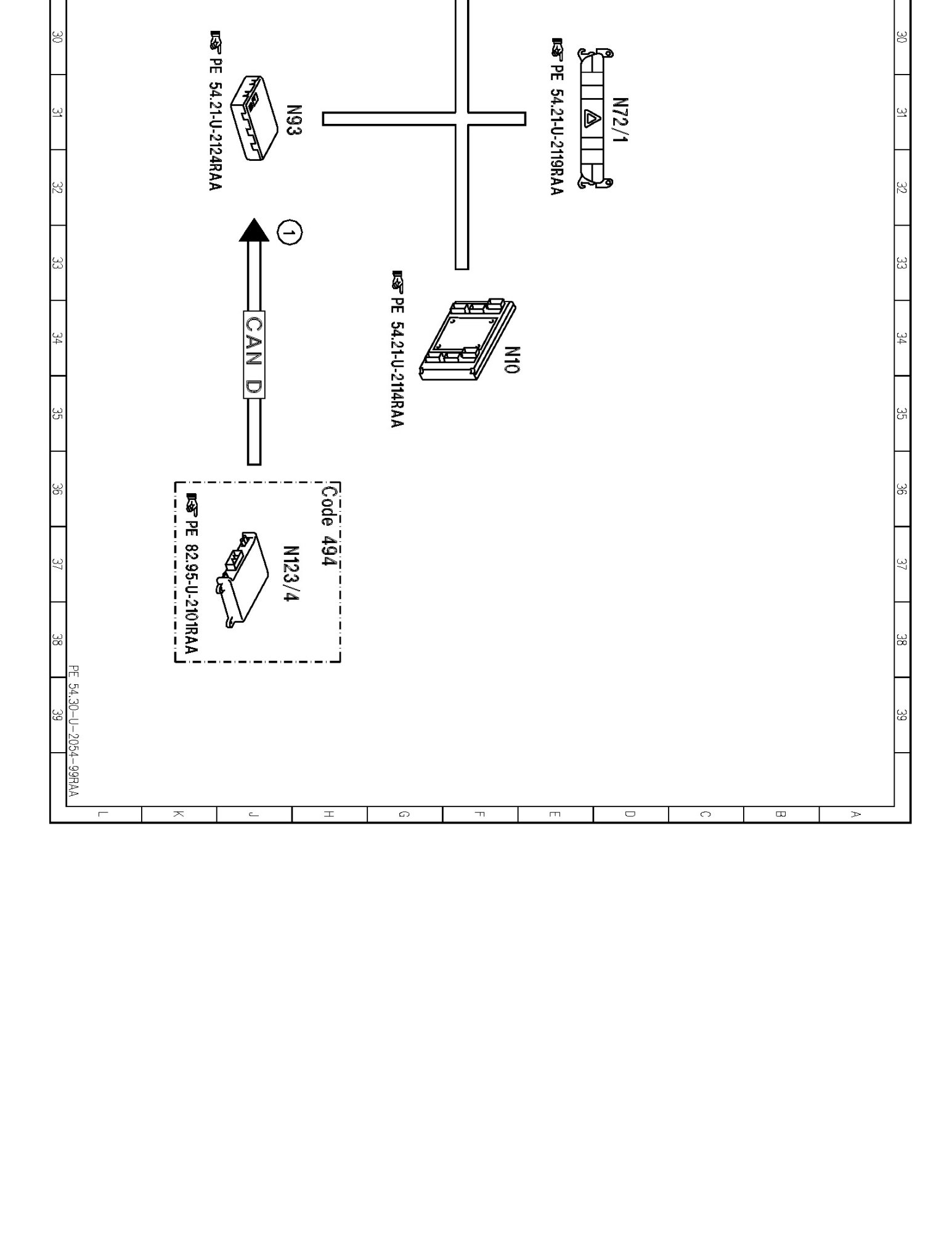

PE54.30-U-2054RAA Electrical Function Diagram For Instrument Cluster Control/Warning Message



PE54.30-U-2054RAA Electrical Function Diagram For Instrument Cluster Control/Warning Message
- as of model year 2009






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
