PE83.70-P-2053RAA Electrical Function Schematic, Trigger Immediate Heating Mode

Electrical Function Schematic, Trigger Immediate Heating Mode PE83.70-P-2053RAA
- with CODE (228) Stationary heater
- as of model year 09

Function Diagram (Part 1):

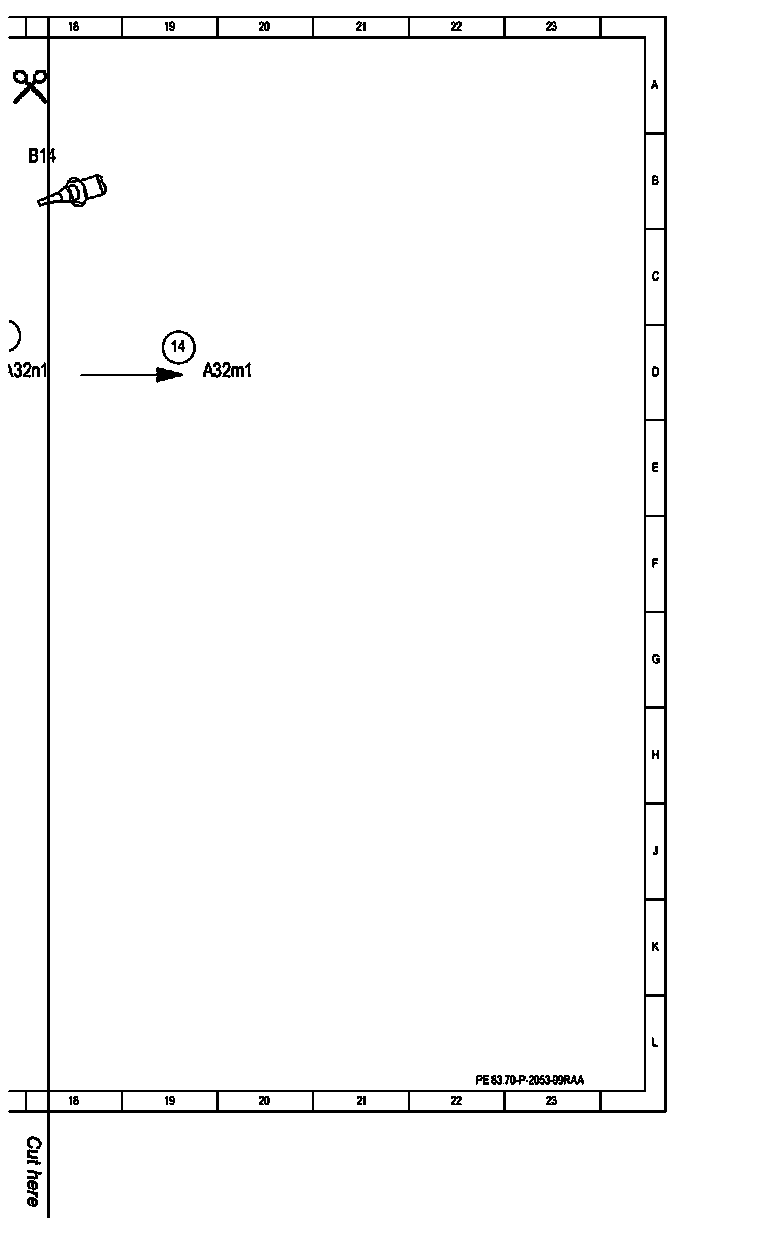

Function Diagram (Part 2):

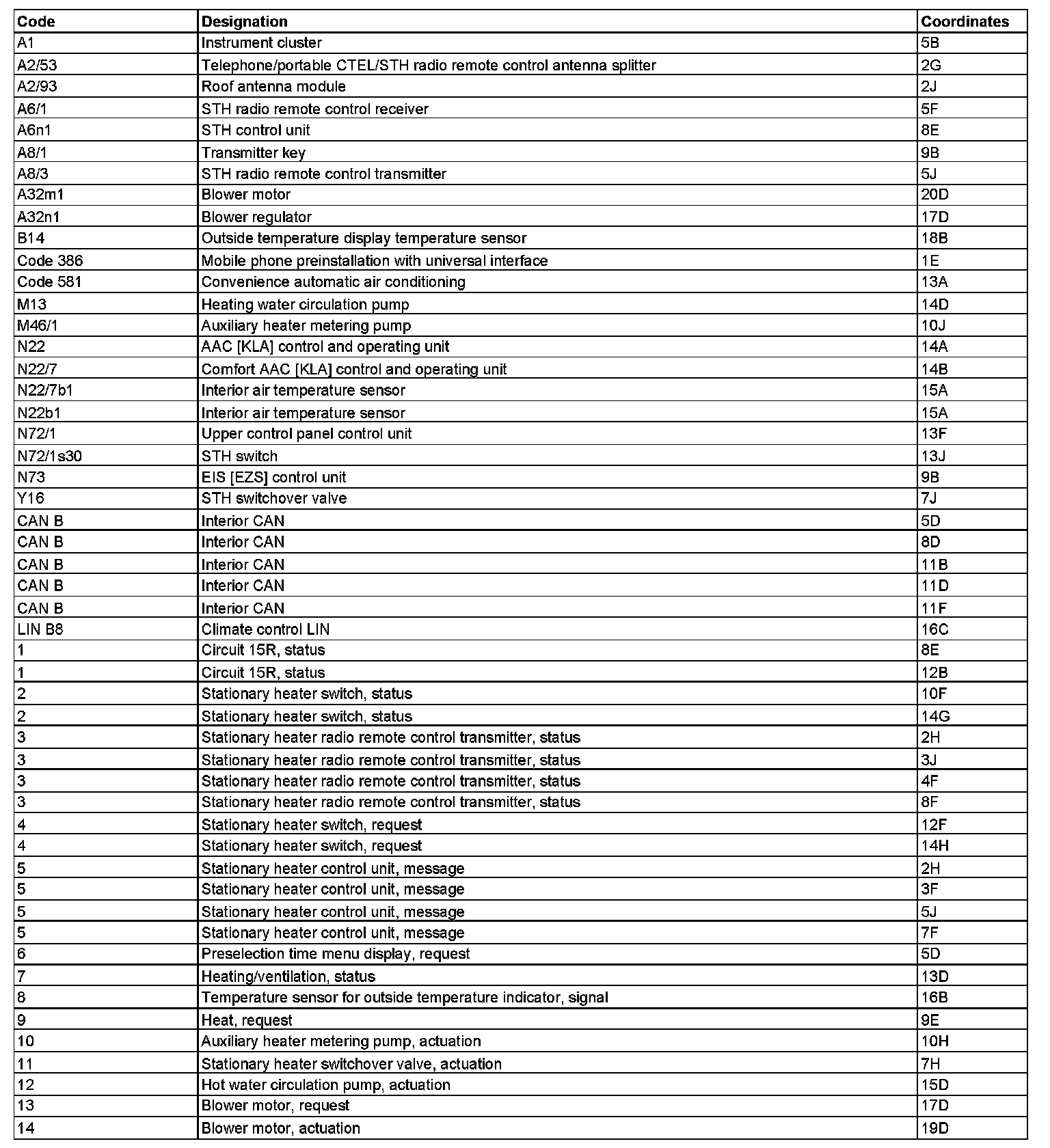

Component Description/Coordinates, A1 To 14:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
