PE83.70-P-2052RAA Electrical Function Schematic, Teach-In of Stationary Heater Radio Remote Control Transmitter

Electrical Function Schematic, Teach-In Of Stationary Heater Radio Remote Control Transmitter PE83.70-P-2052RAA
- with CODE (228) Stationary heater
- as of model year 09

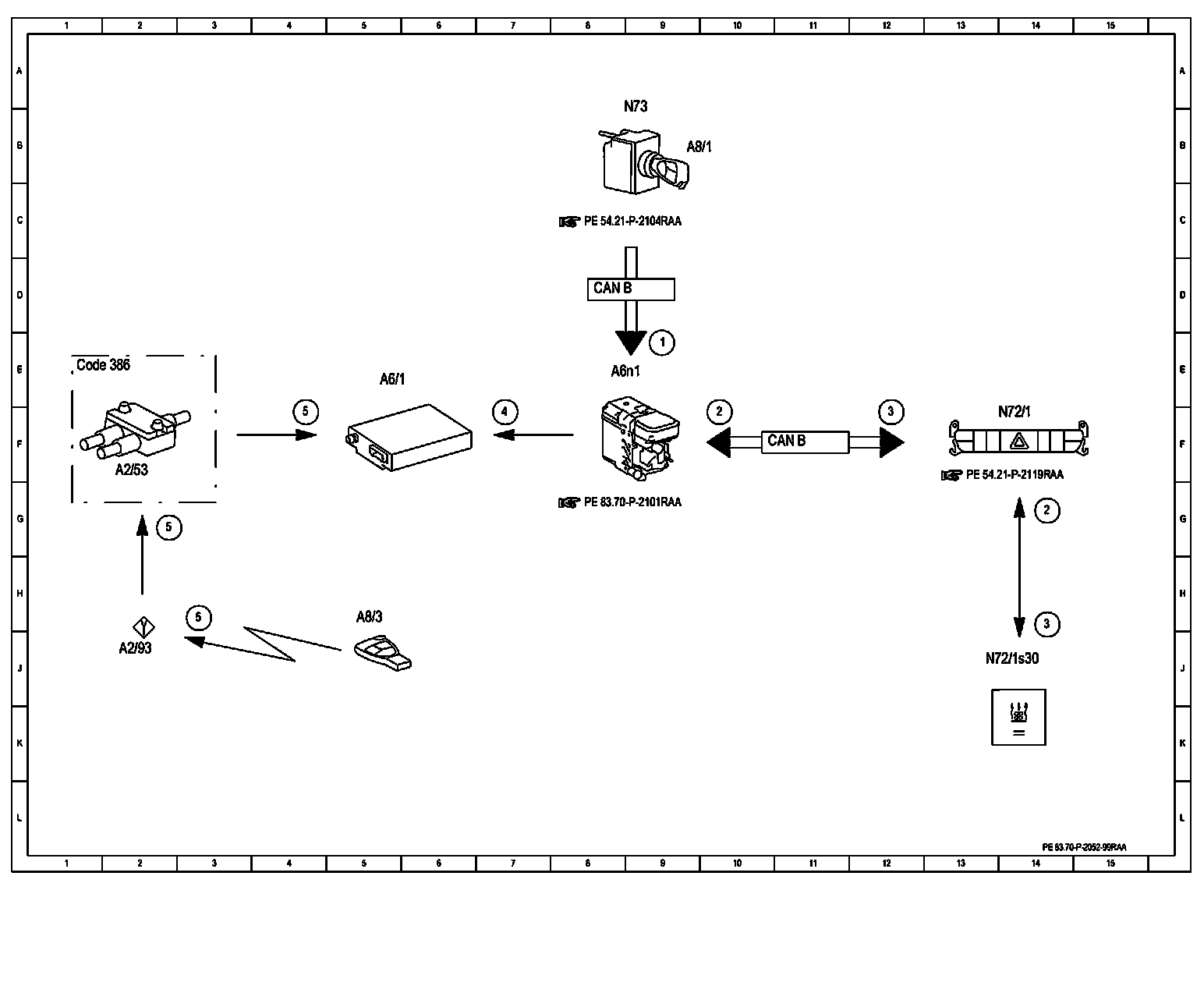

Function Diagram:

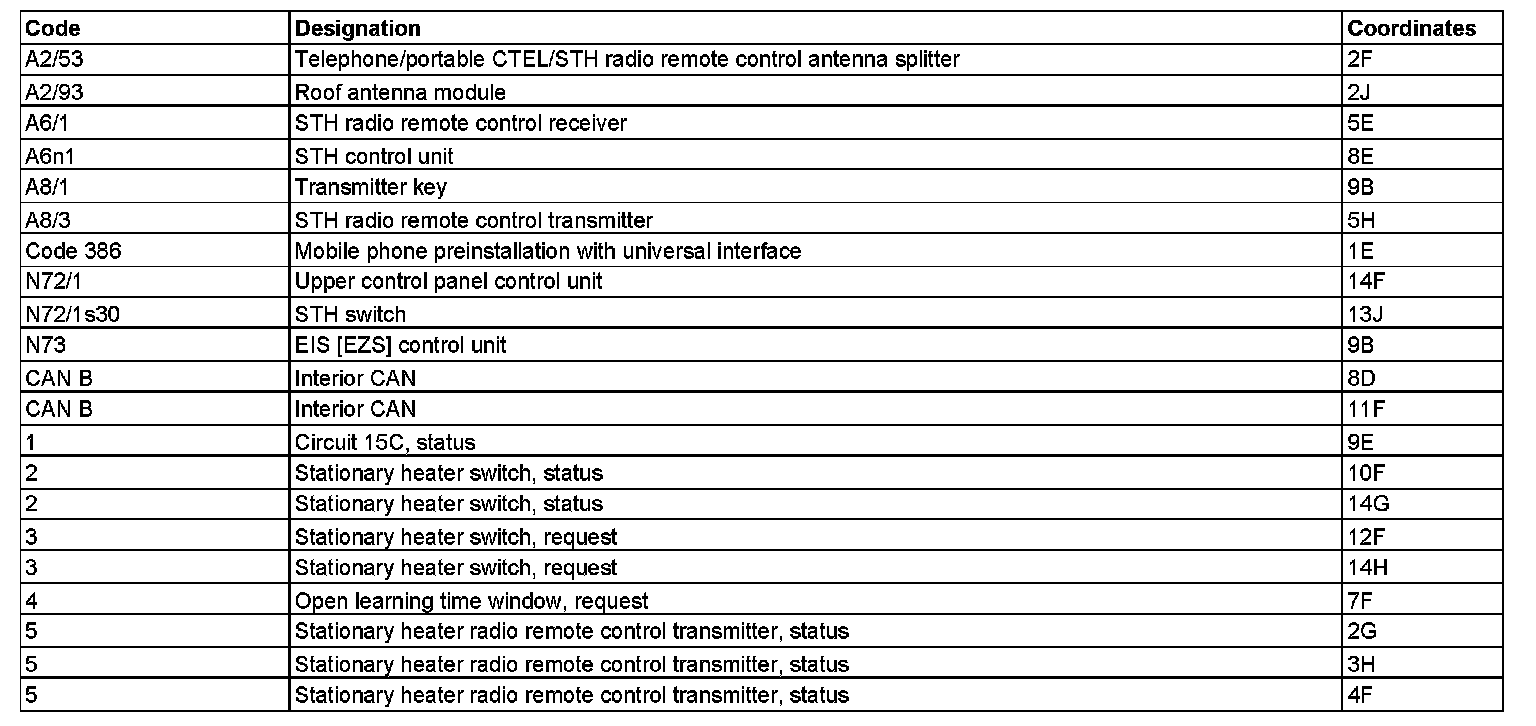

Component Description/Coordinates, A2/53 To 5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
