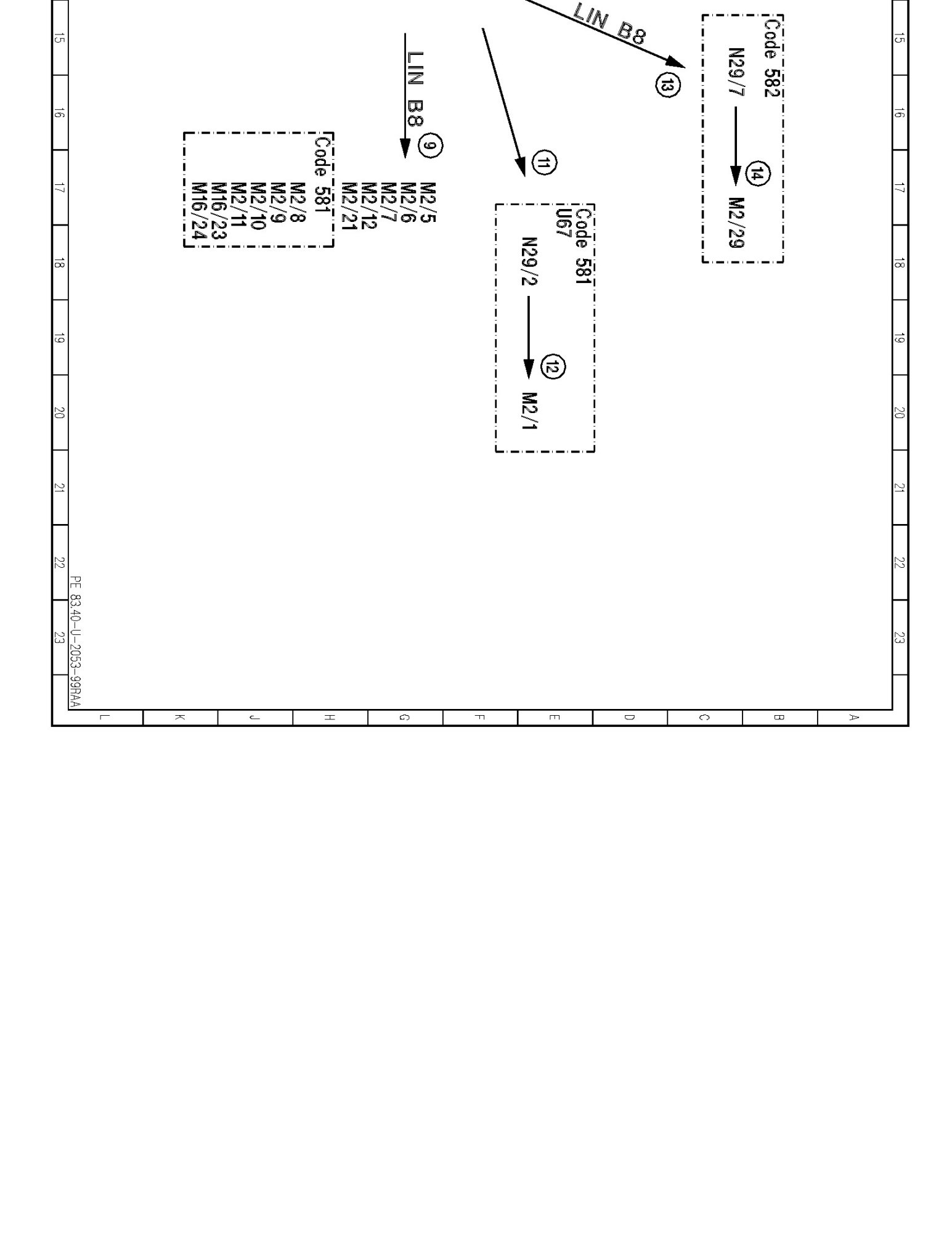

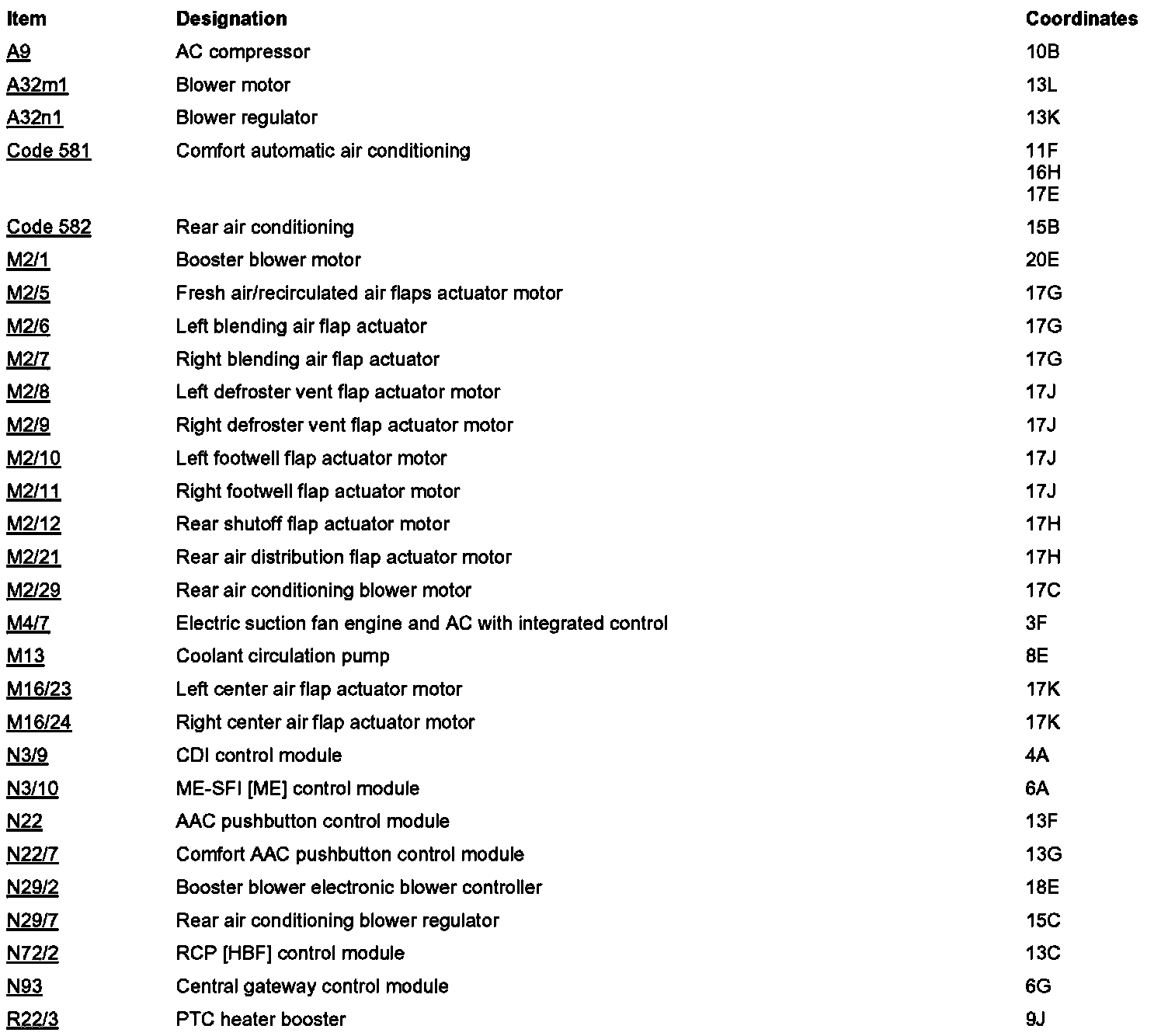

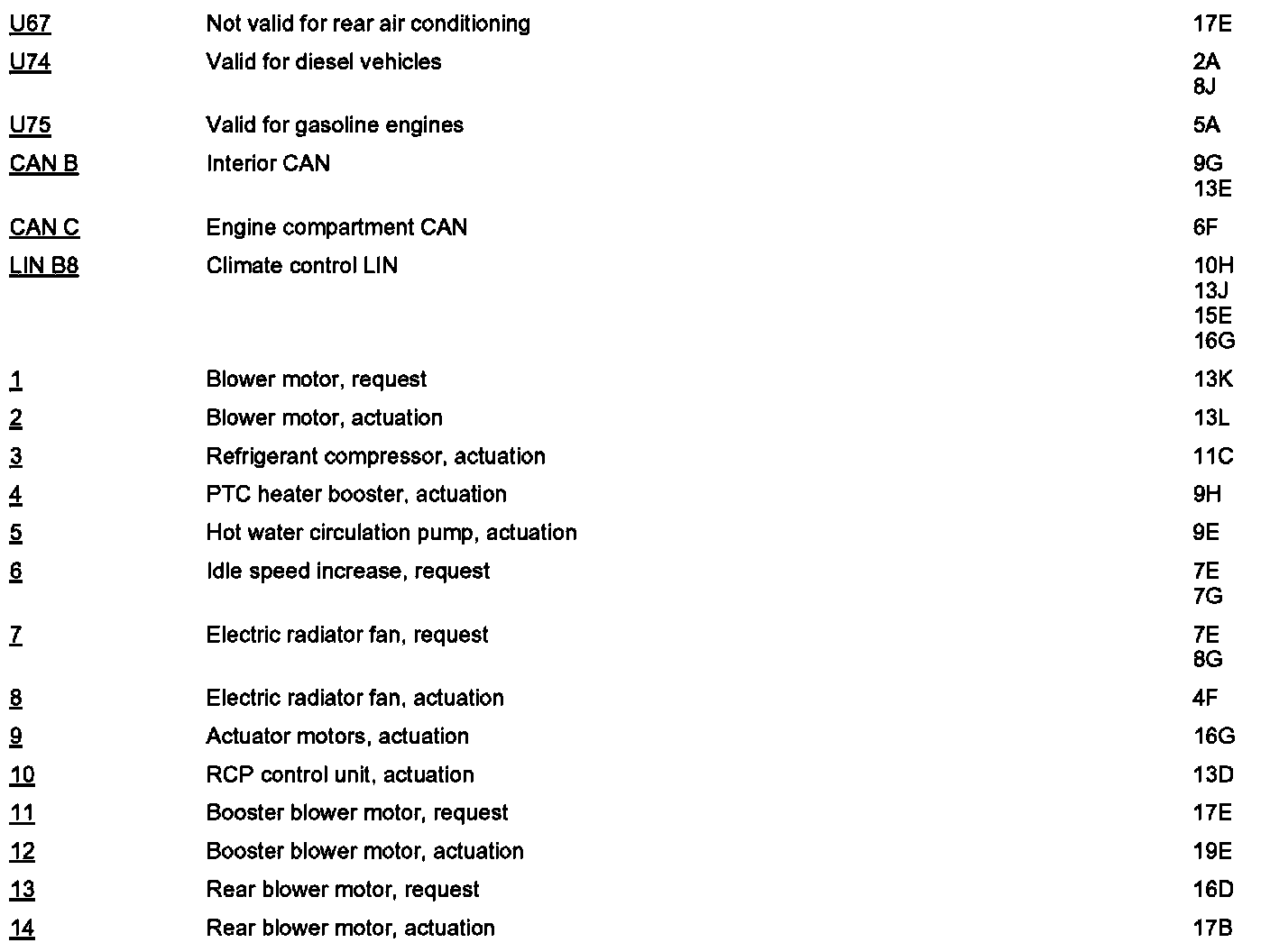

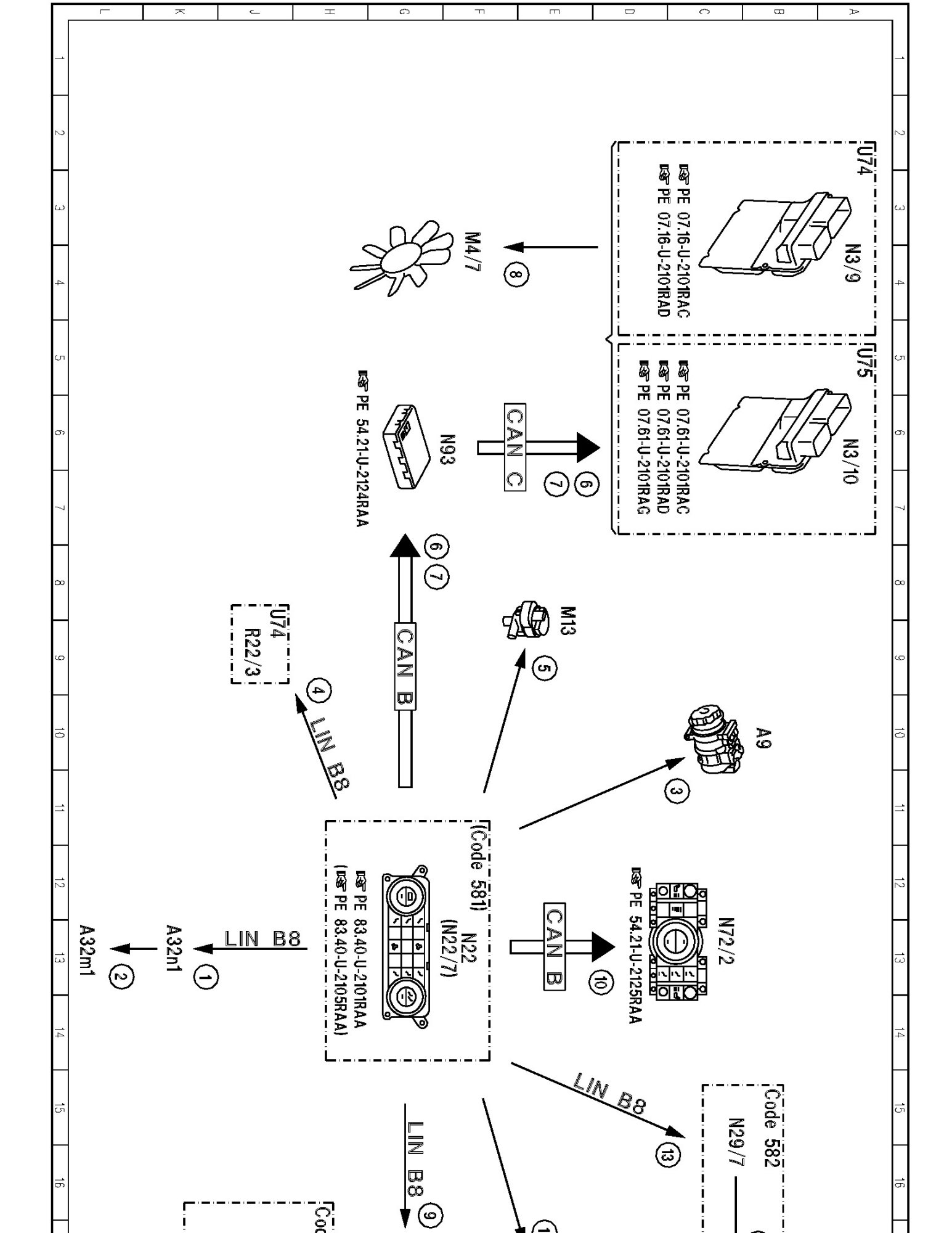

PE83.40-U-2053RAA Electrical Function Diagram For Automatic Air Conditioning Actuation

PE83.40-U-2053RAA Electrical Function Diagram For Automatic Air Conditioning Actuation
- as of model year 09


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
