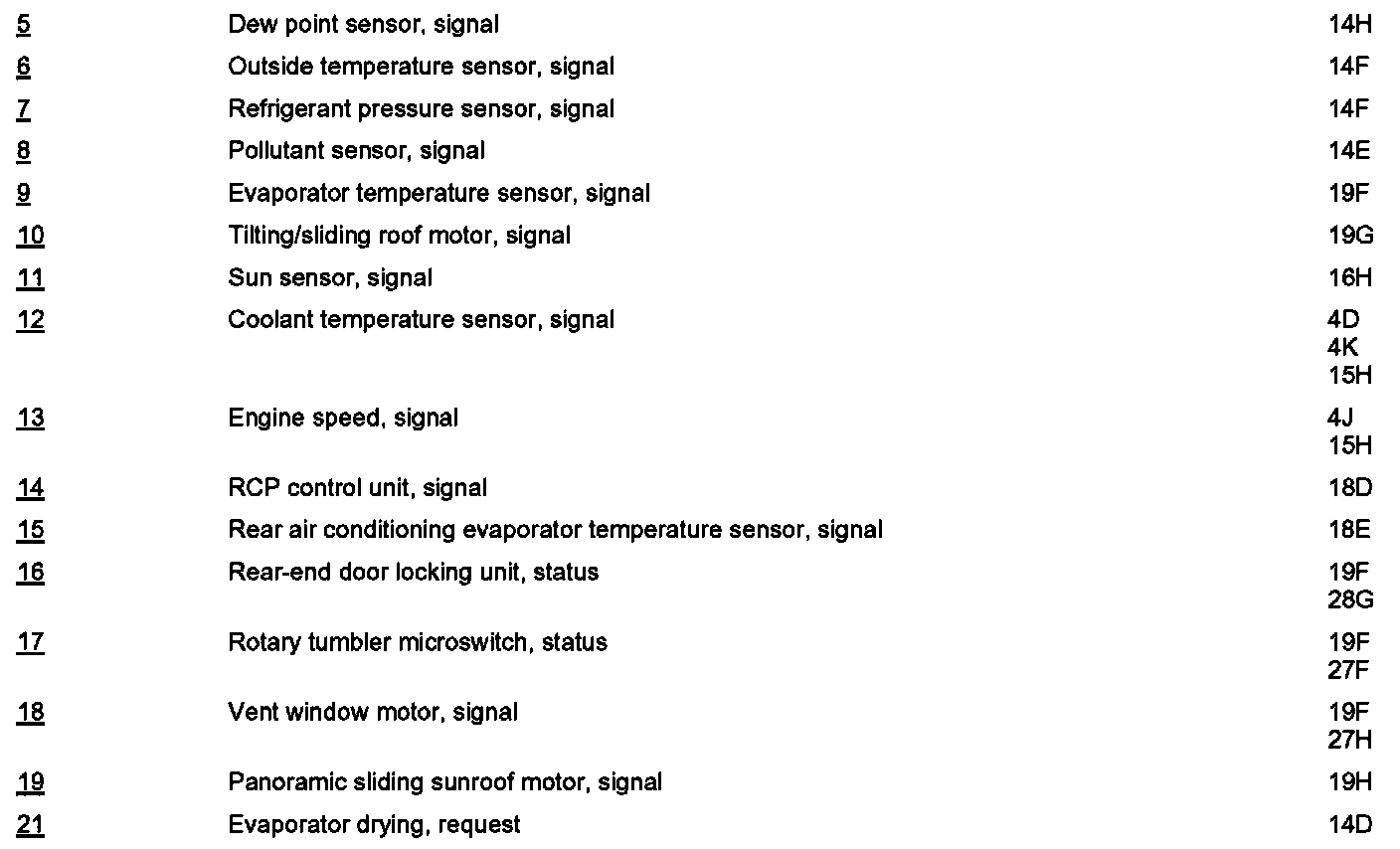

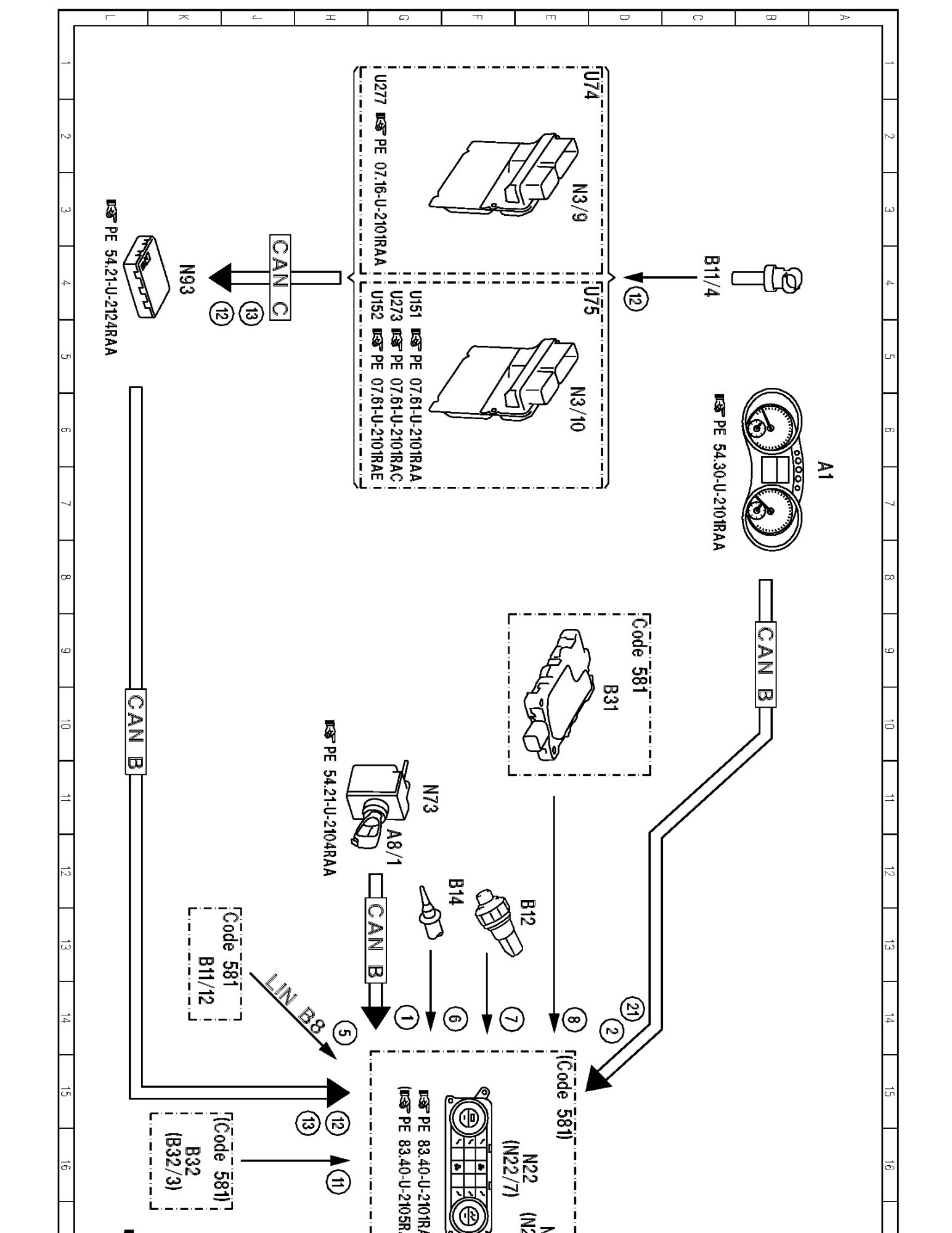

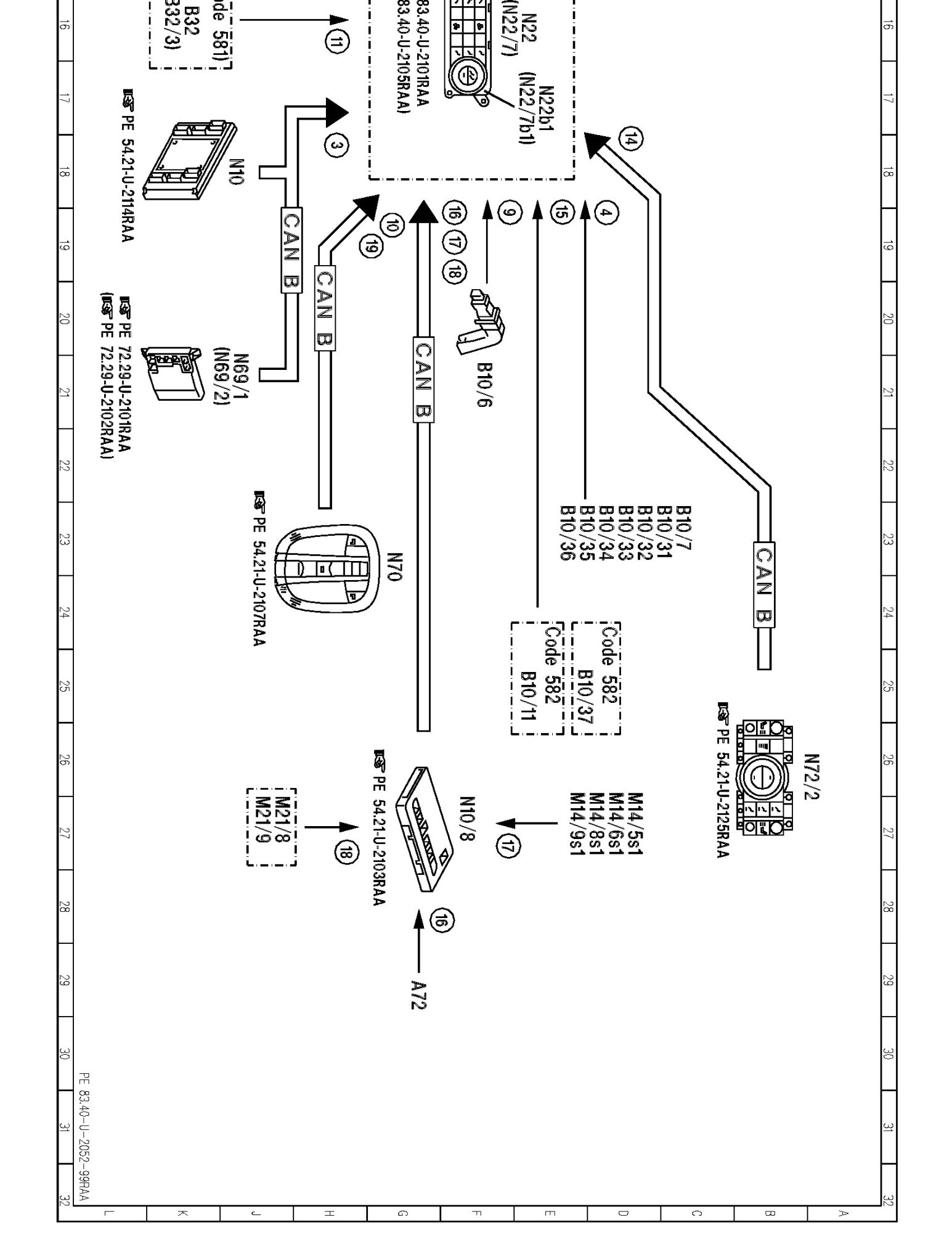

PE83.40-U-2052RAA Electrical Function Diagram For Automatic Air Conditioning Input Signals

PE83.40-U-2052RAA Electrical Function Diagram For Automatic Air Conditioning Input Signals
- as of model year 2009

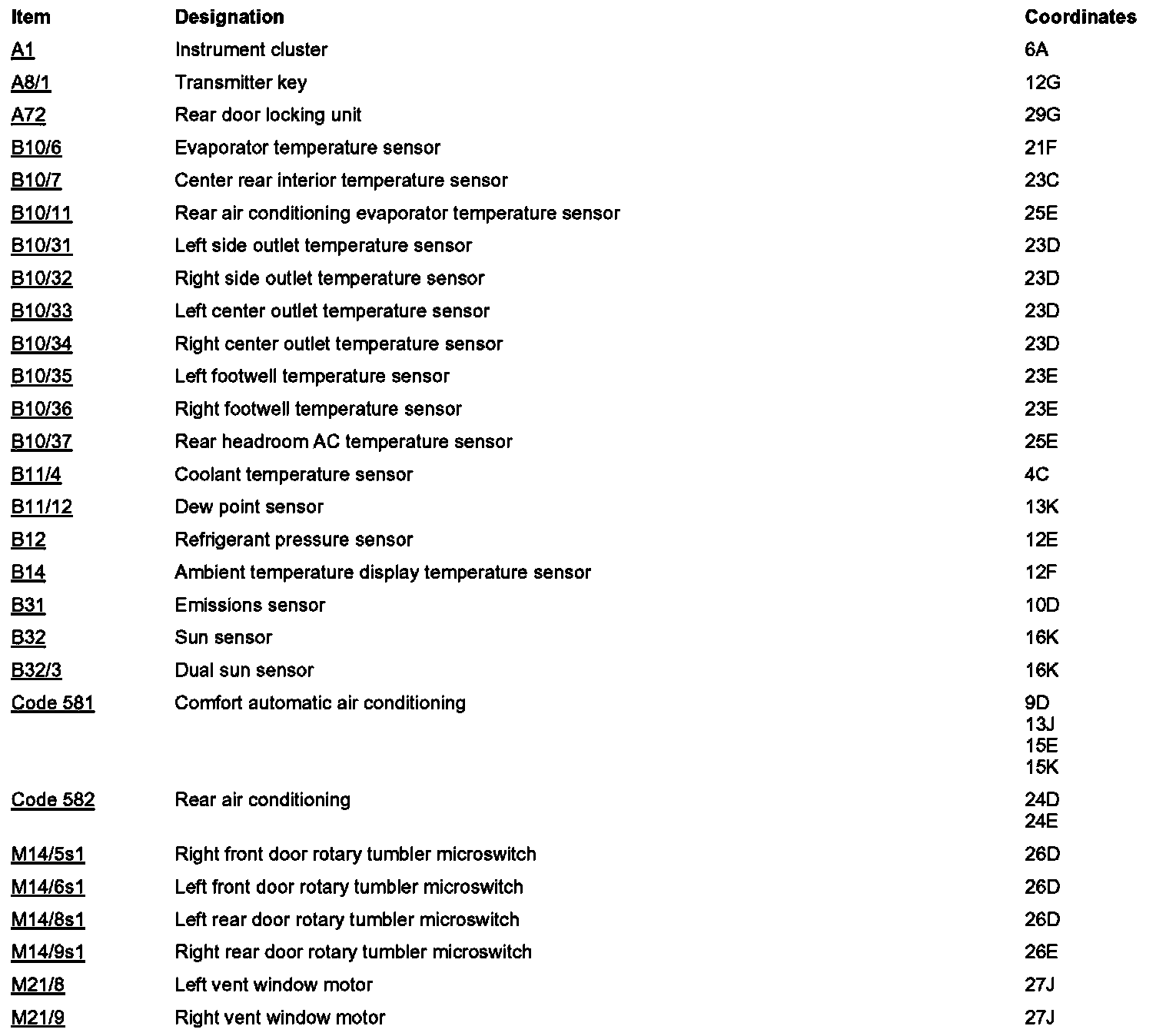

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
