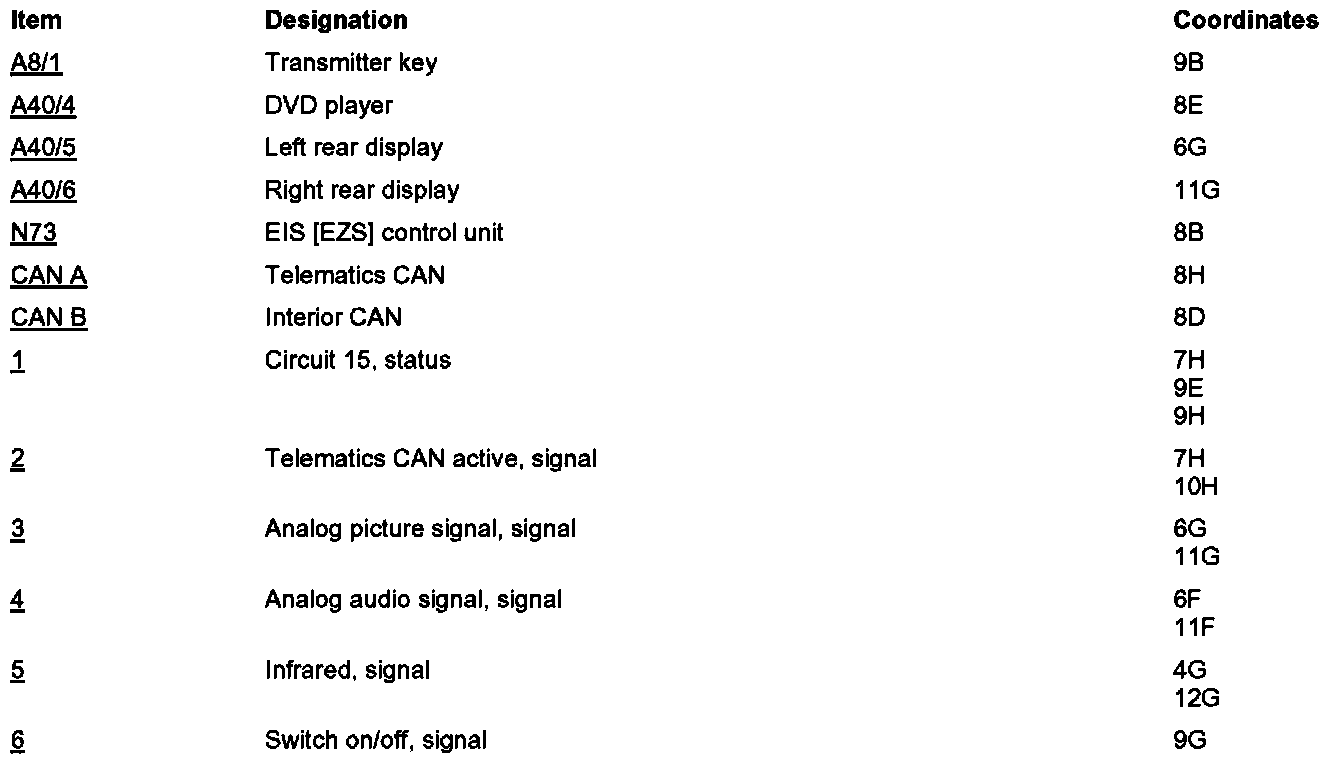

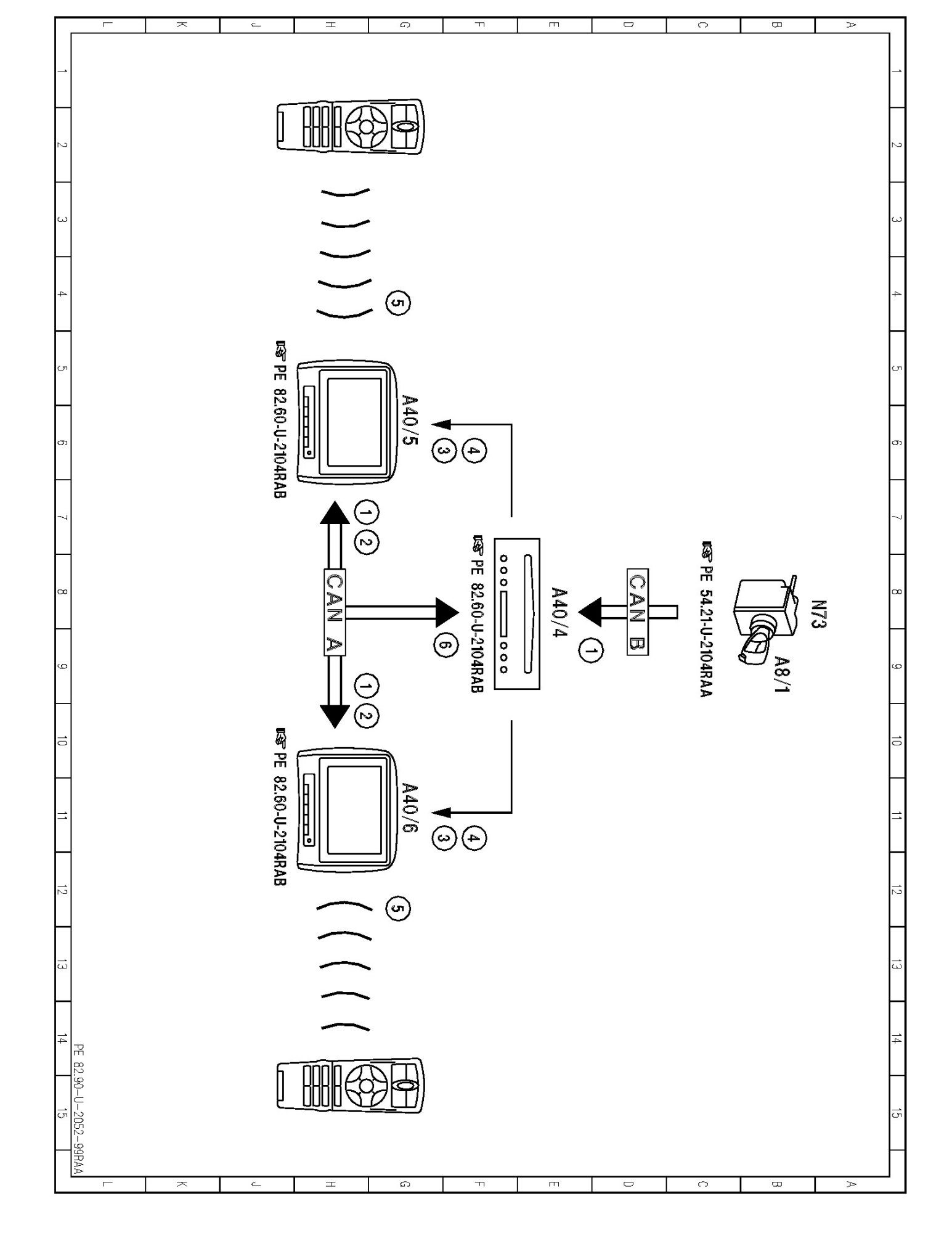

PE82.90-U-2052RAA Electrical Function Schematic For Rear Entertainment Switch ON and Switch OFF Characteristics and System

PE82.90-U-2052RAA Electrical Function Schematic For Rear Entertainment Switch ON and Switch OFF Characteristics and System Settings











Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
