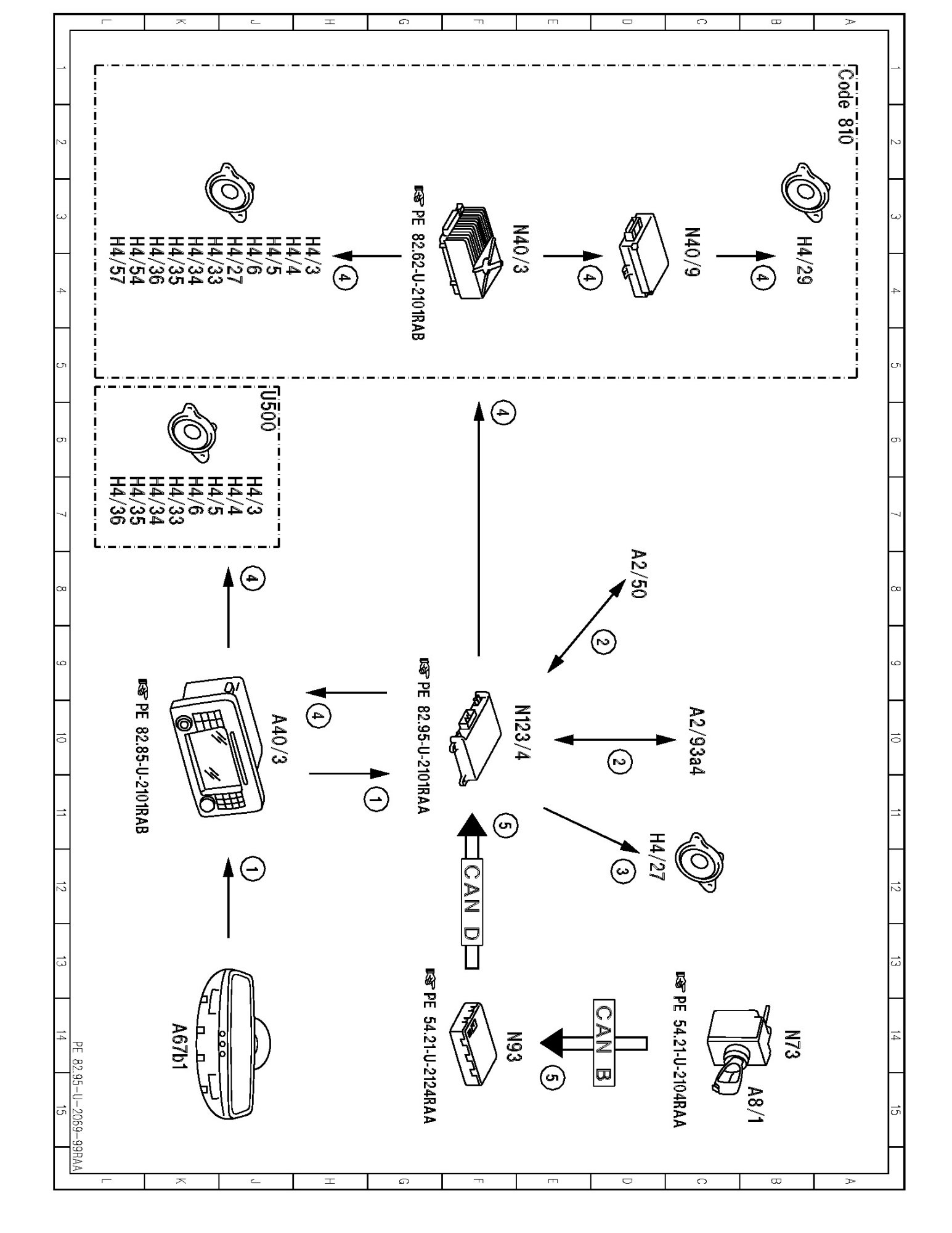

PE82.95-U-2069RAA Electrical Function Schematic For Voice Connection Between Vehicle and Service Center, Function

PE82.95-U-2069RAA Electrical Function Schematic For Voice Connection Between Vehicle and Service Center, Function
- with CODE (359) TELE AID emergency call system
- as of model year 2009

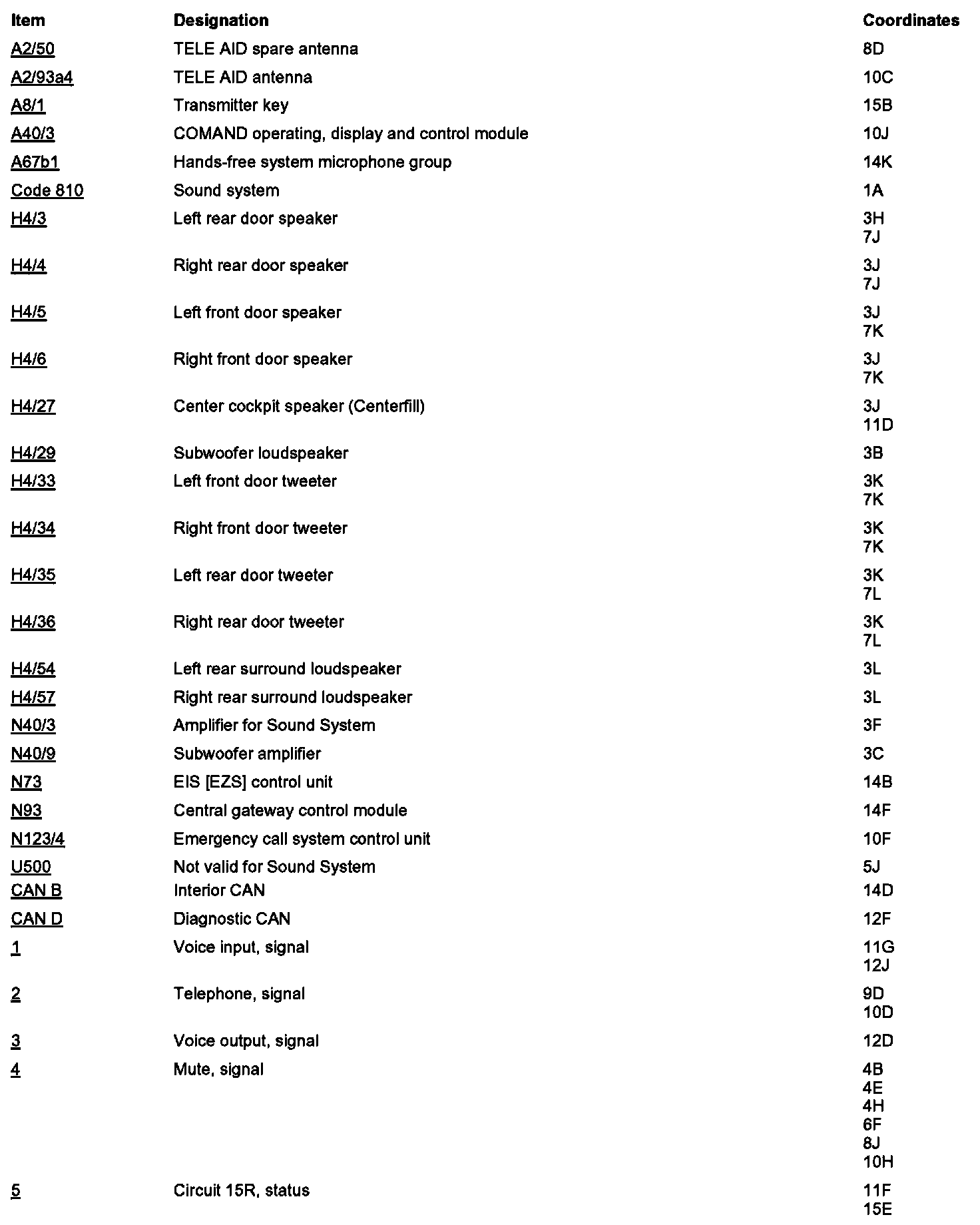

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
