PE54.65-U-2053RAA Electrical Function Schematic For PARKTRONIC

PE54.65-U-2053RAA Electrical Function Schematic For Parktronic
- with CODE (220) PARKTRONIC
- as of model year 2009

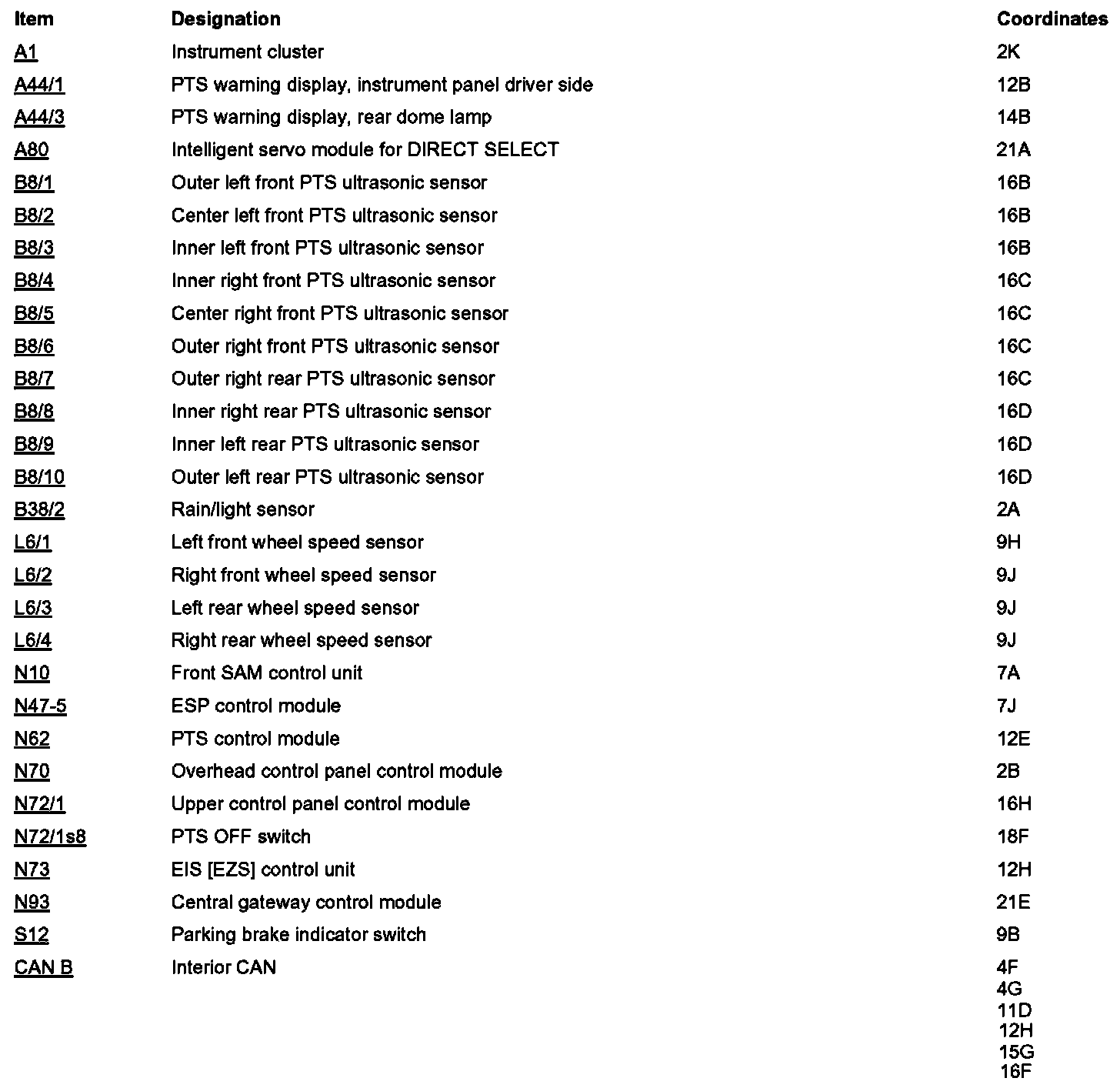

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
