PE82.70-P-2059RAA Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call and Conference Call

Electrical Function Diagram For Mobile Phone Accepting Call, Rejecting Call And Conference Call PE82.70-P-2059RAA

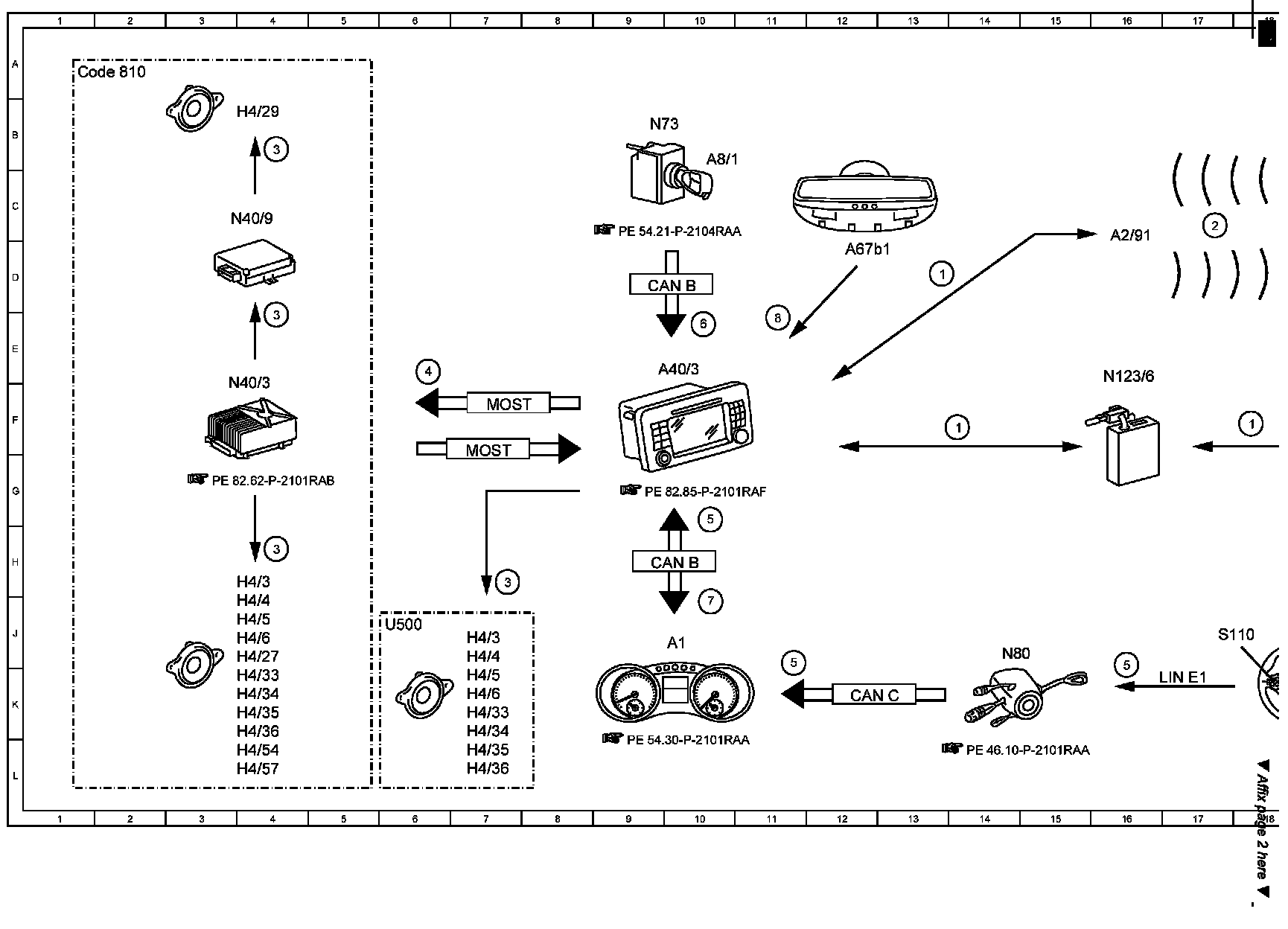

Function Diagram (Part 1):

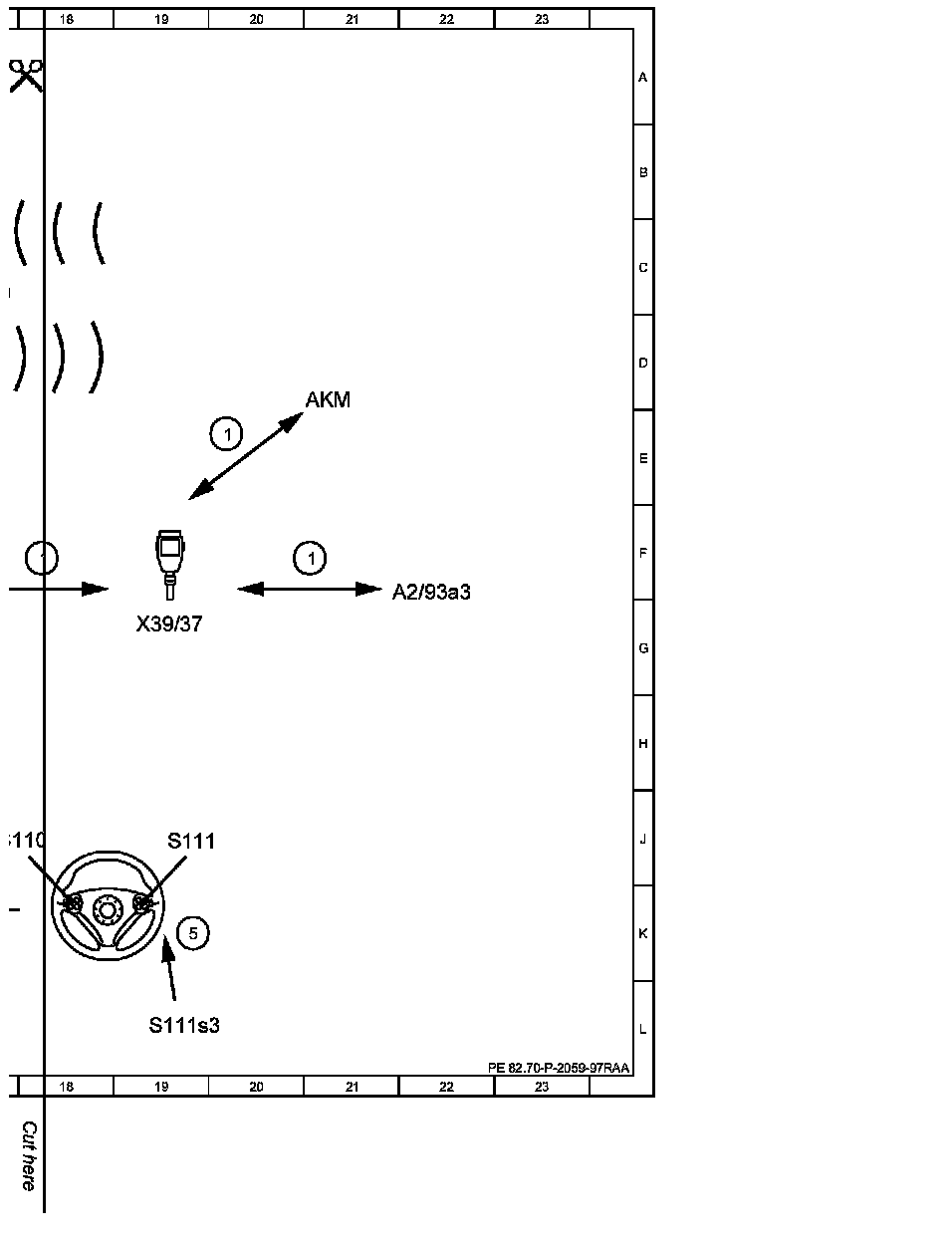

Function Diagram (Part 2):

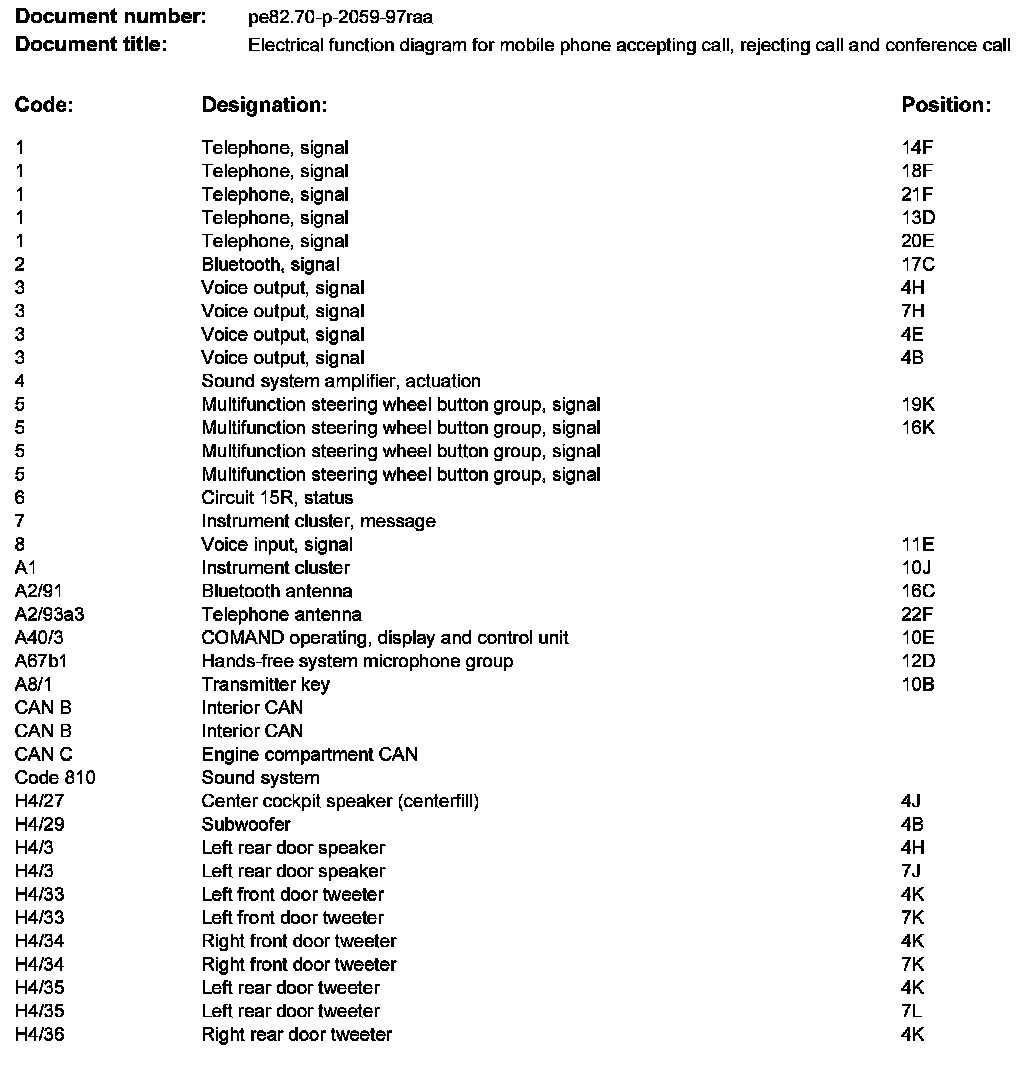

Component Description/Coordinates, 1 To H4/36:

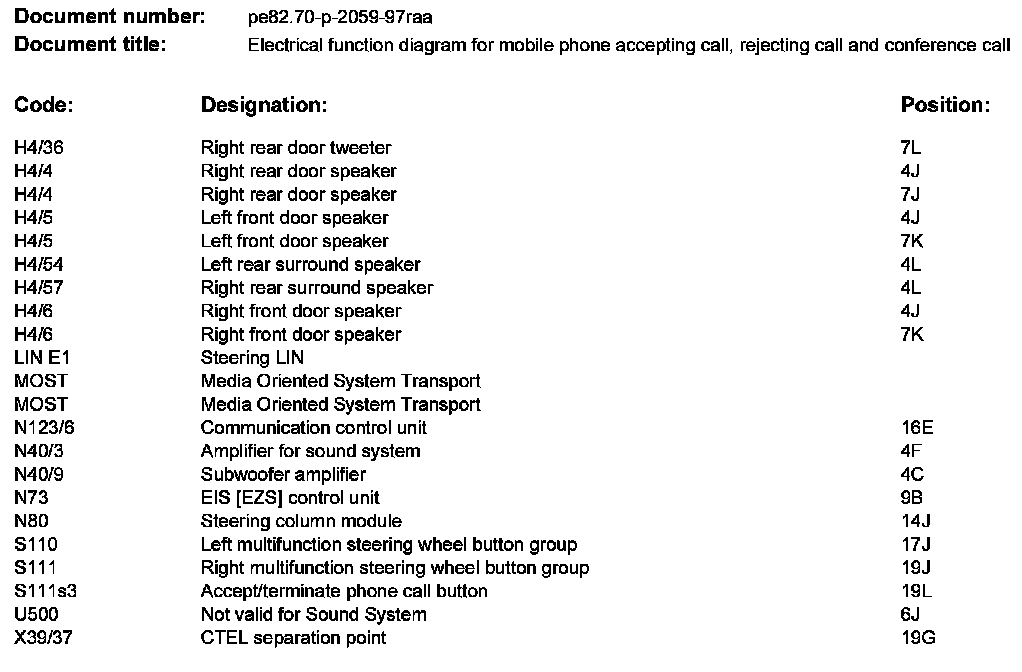

Component Description/Coordinates, H4/36 To X39/37:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
