PE82.70-P-2054RAB Electrical Function Schematic For Mobile Phone, Switch On and Switch Off Characteristics

Electrical Function Schematic For Mobile Phone, Switch On And Switch Off Characteristics PE82.70-P-2054RAB

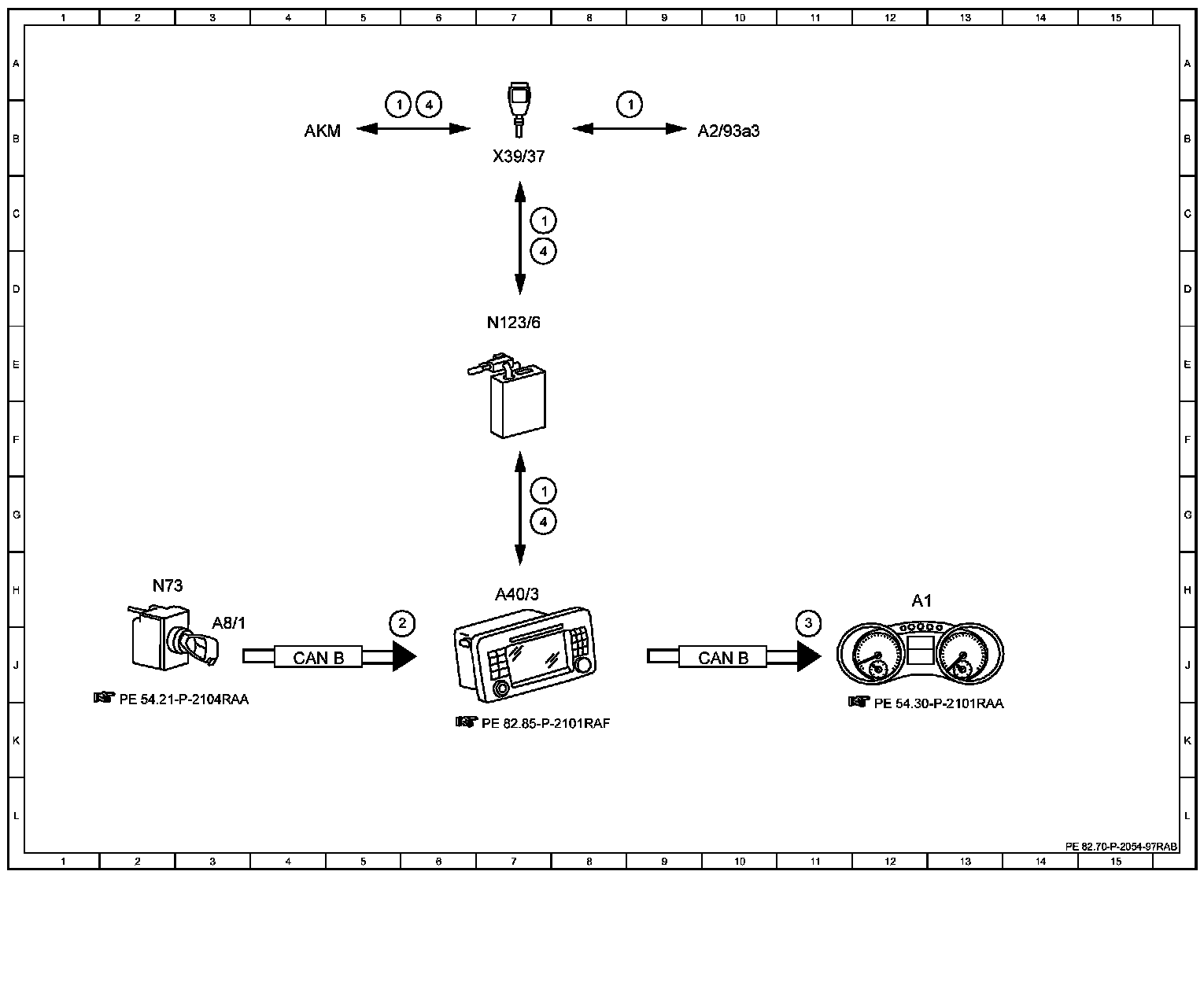

Function Diagram:

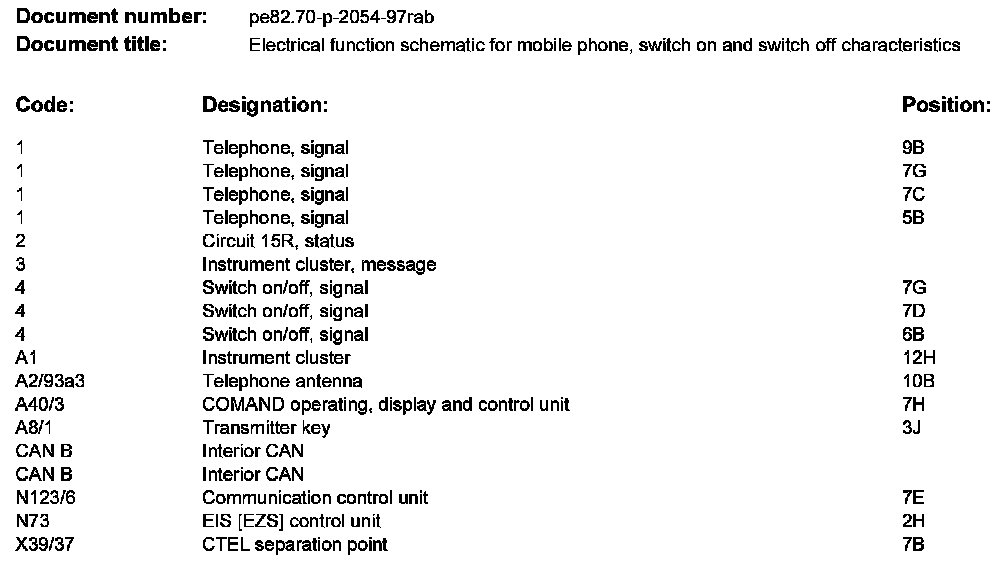

Component Description/Coordinates, 1 To X39/37:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
