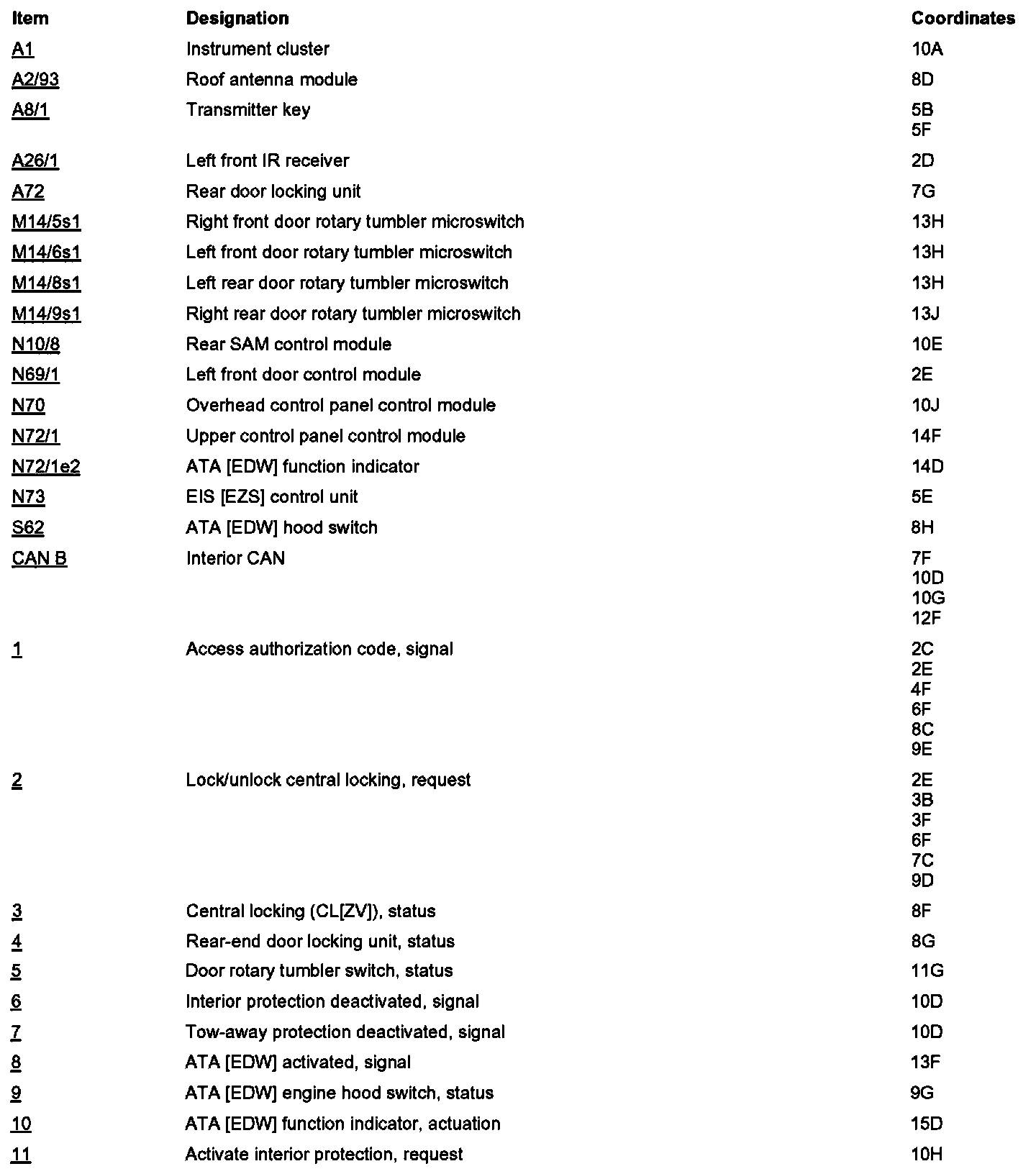

PE80.50-U-2052RAA Electrical Function Diagram For Antitheft Alarm System Activation

PE80.50-U-2052RAA Electrical Function Diagram For Antitheft Alarm System Activation
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- as of model year 09










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
