PE82.85-U-2060RAA Electrical Function Schematic For HD Radio, Function

PE82.85-U-2060RAA Electrical Function Schematic For HD Radio, Function
- with CODE (517) HD radio
- as of model year 09

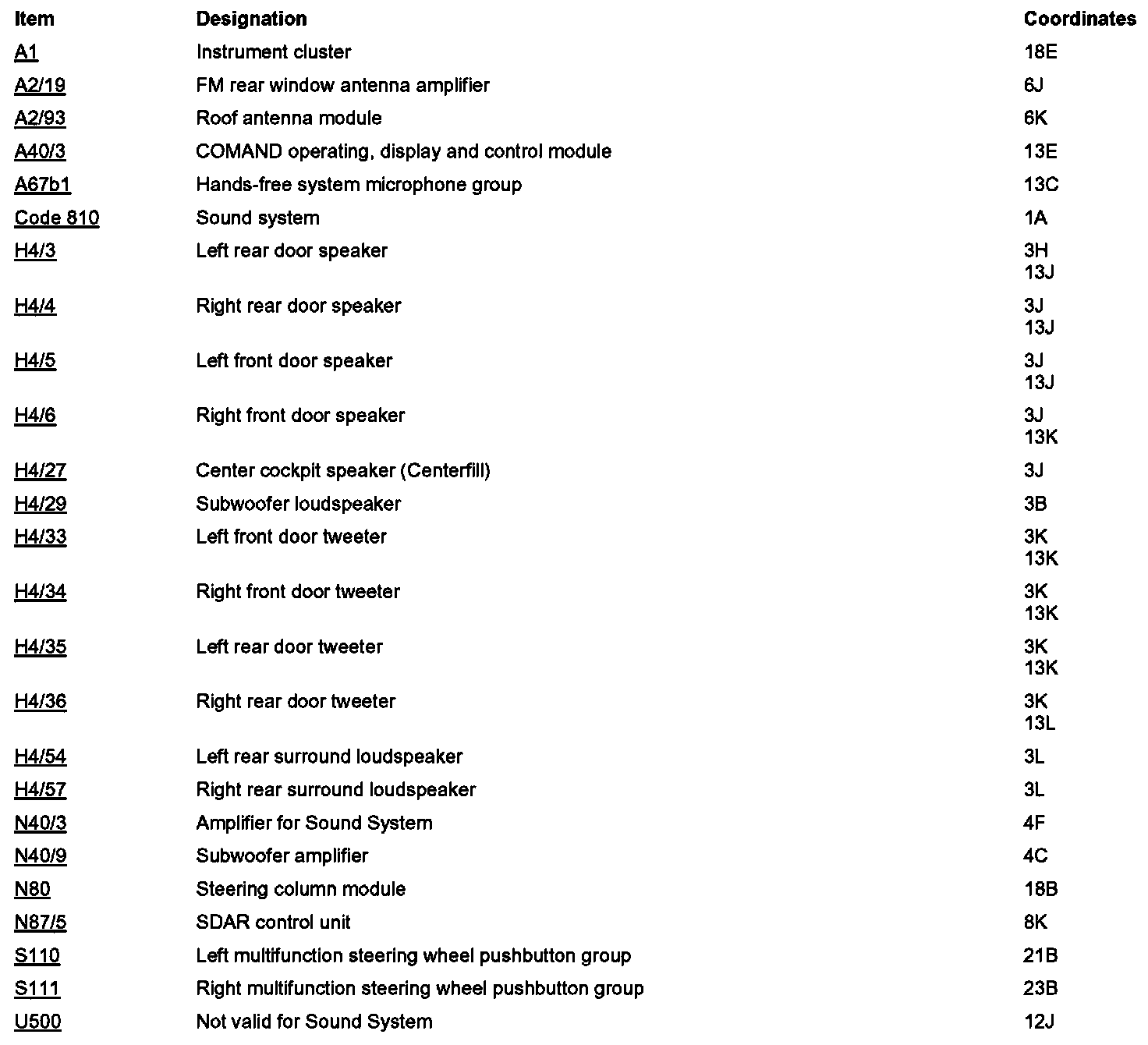

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
