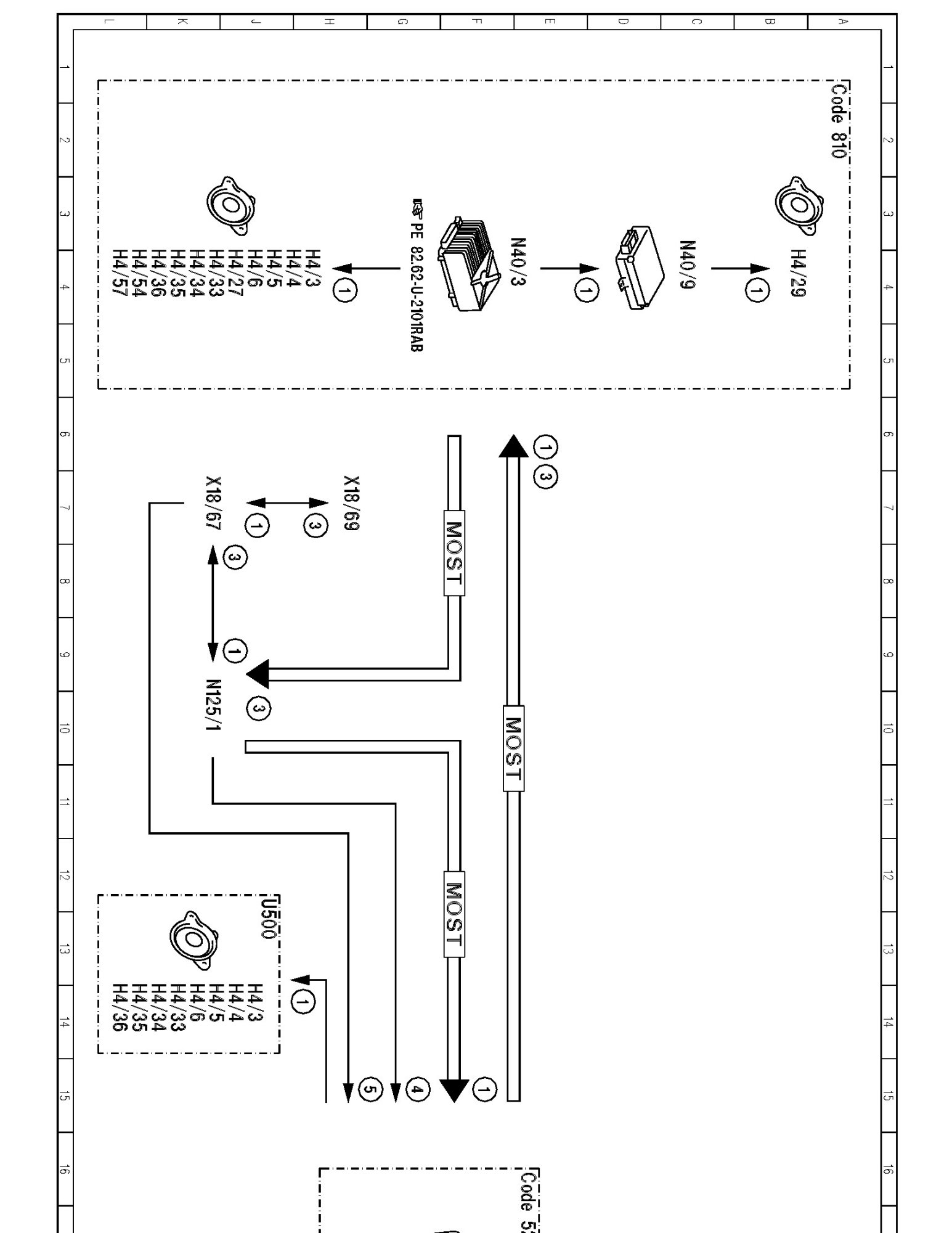

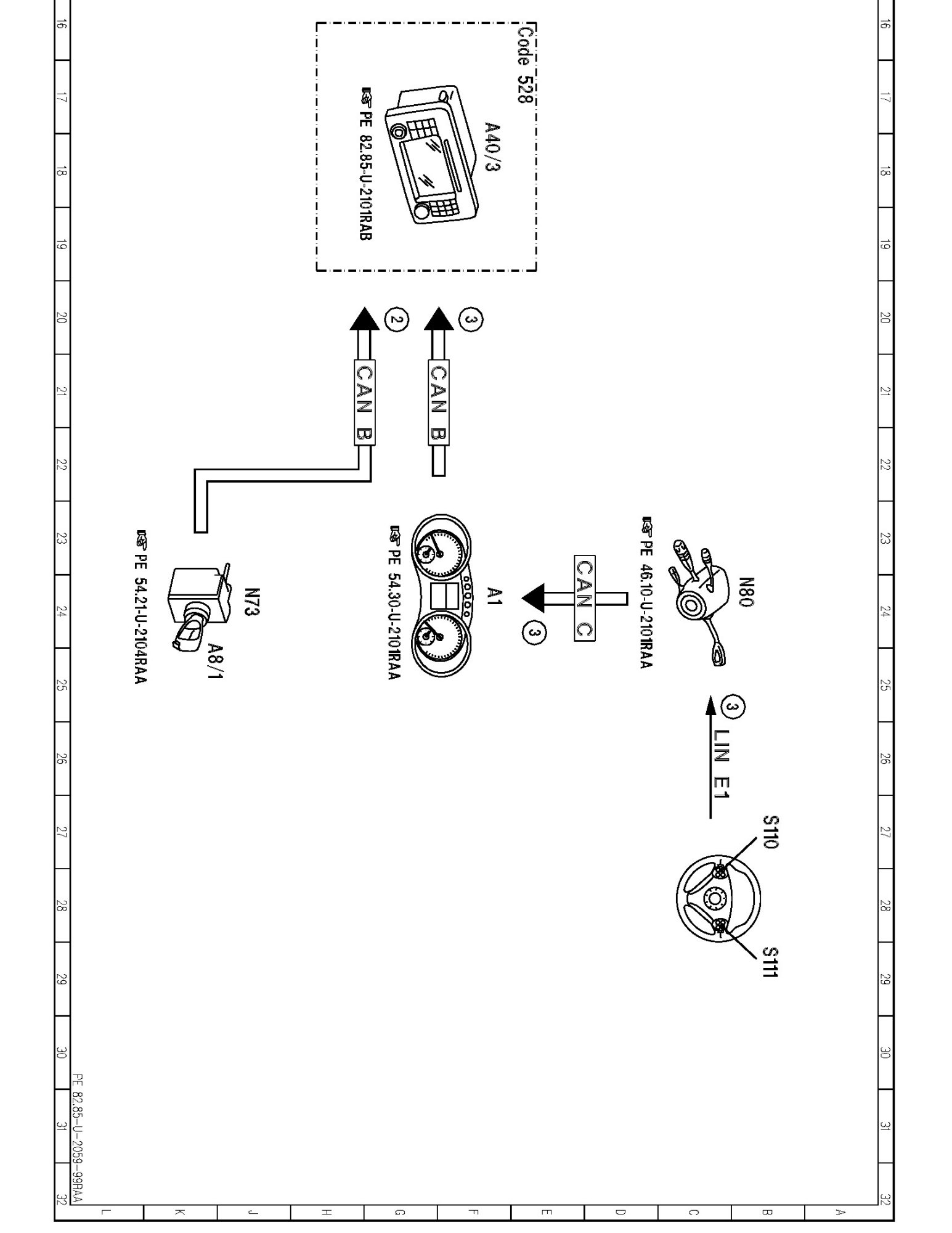

PE82.85-U-2059RAA Electrical Function Schematic For Media Interface, Function

PE82.85-U-2059RAA Electrical Function Schematic For Media Interface, Function
- with CODE (518) Media interface
- as of model year 09

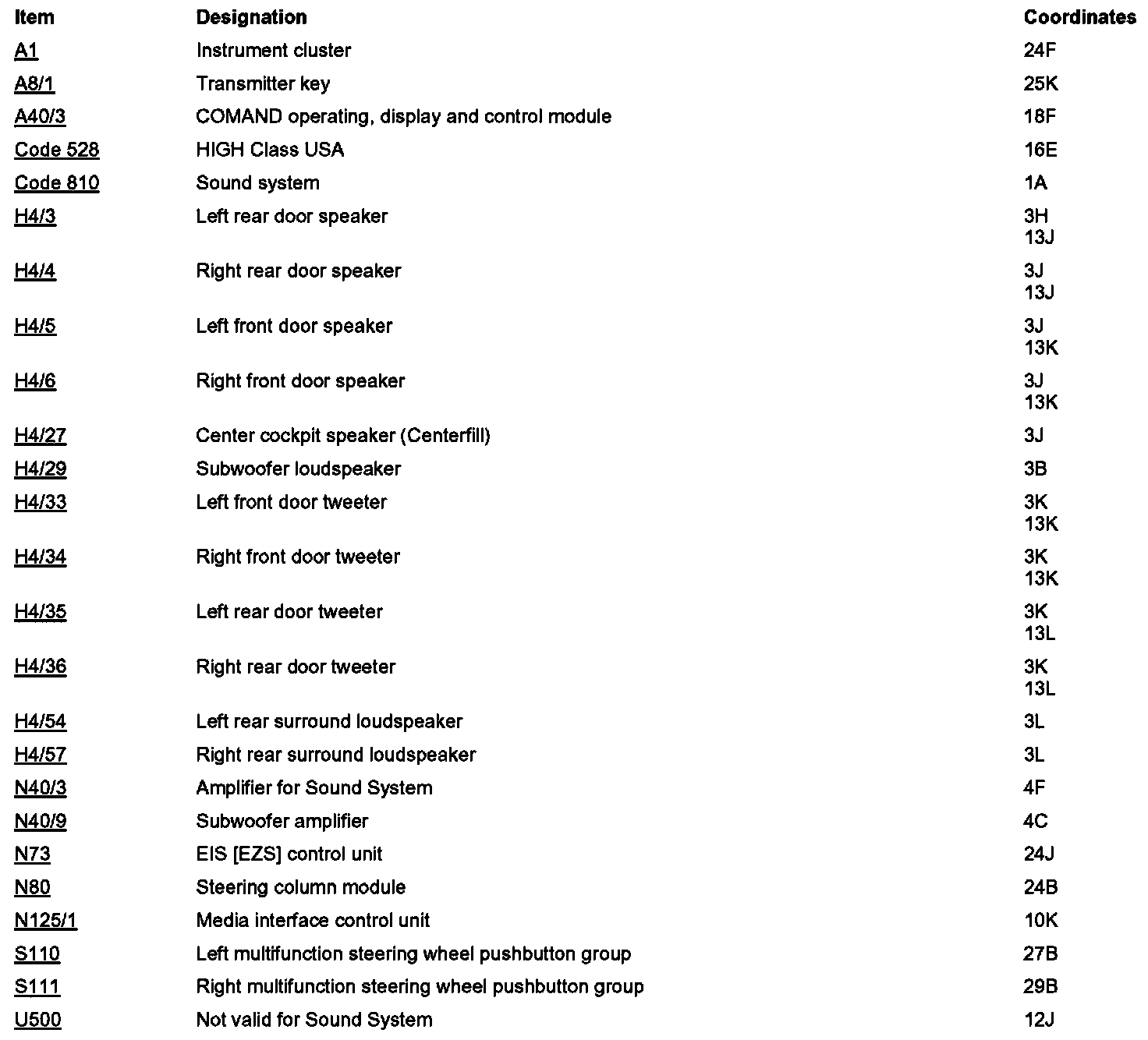

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
