PE82.85-P-2065RAB Electrical Function Diagram For TV Mode, Function

Electrical Function Diagram For TV Mode, Function PE82.85-P-2065RAB
- with CODE (865) TV tuner
- digital Japan
- as of model year 09

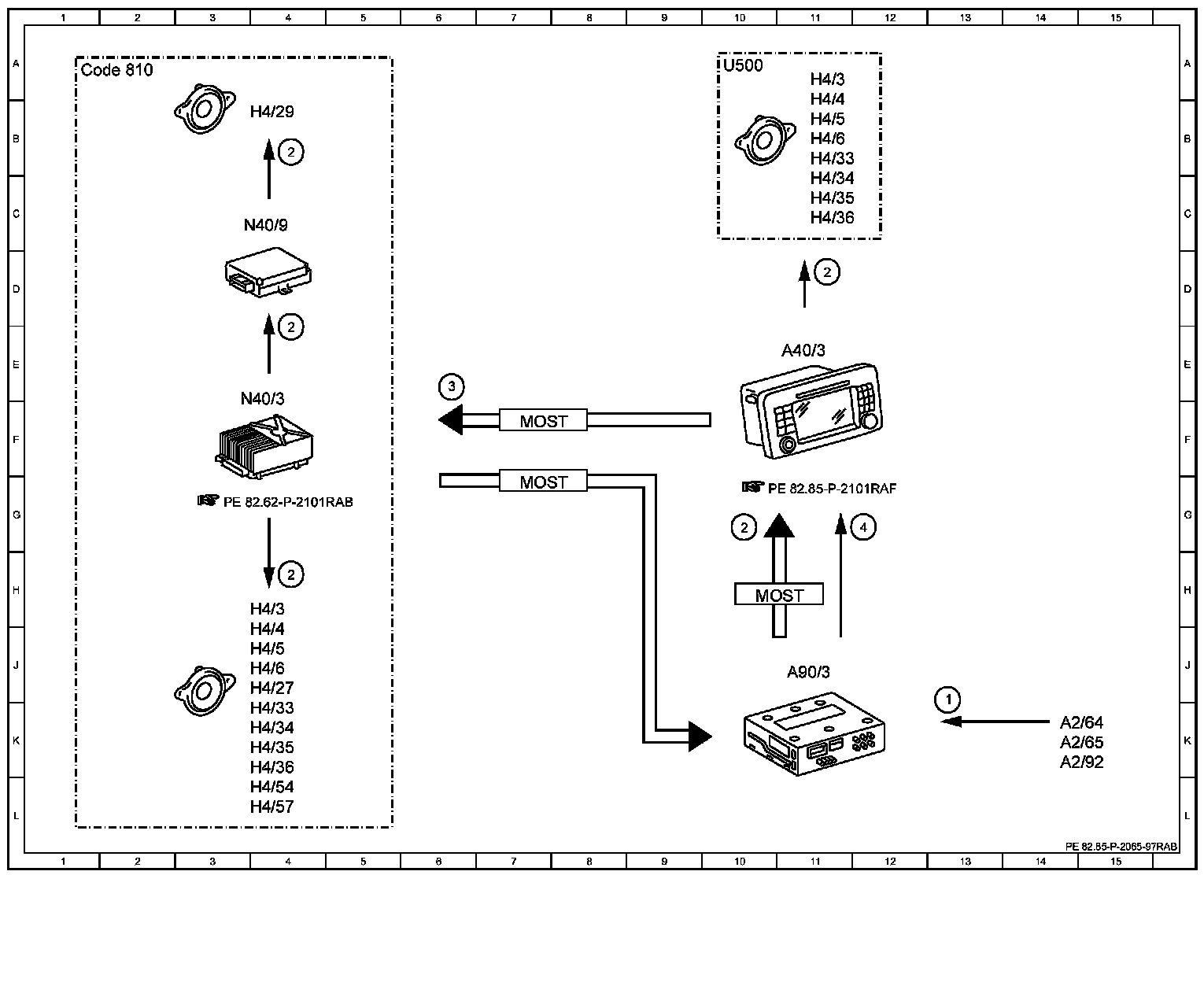

Function Diagram:

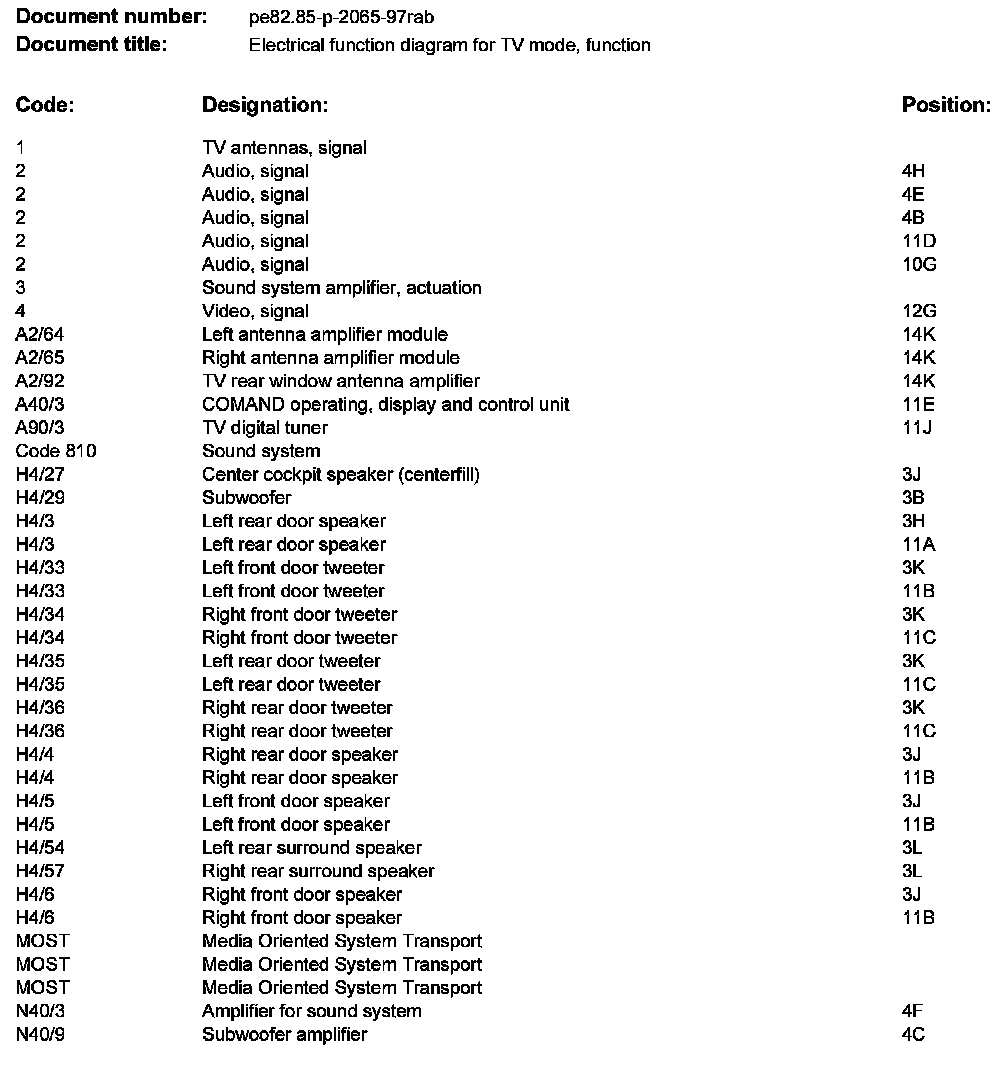

Component Description/Coordinates, 1 To N40/9:

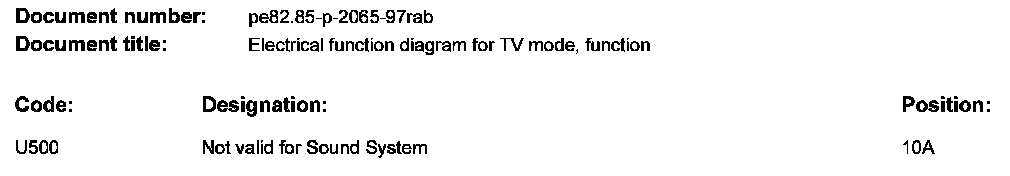

Component Description/Coordinates, U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
