PE82.85-P-2064RAB Electrical Function Diagram For Video Mode, Function

Electrical Function Diagram For Video Mode, Function PE82.85-P-2064RAB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- as of model year 09

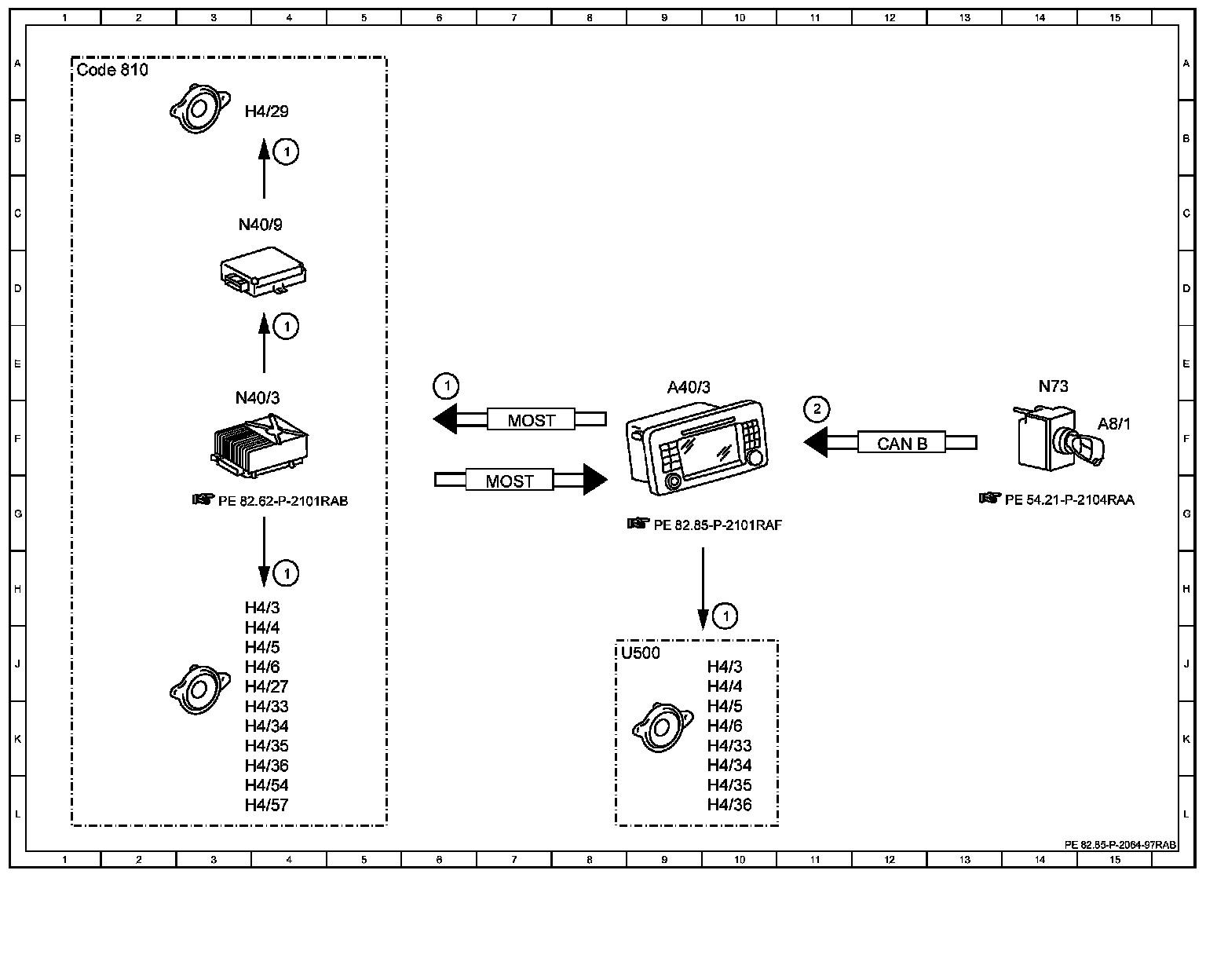

Function Diagram:

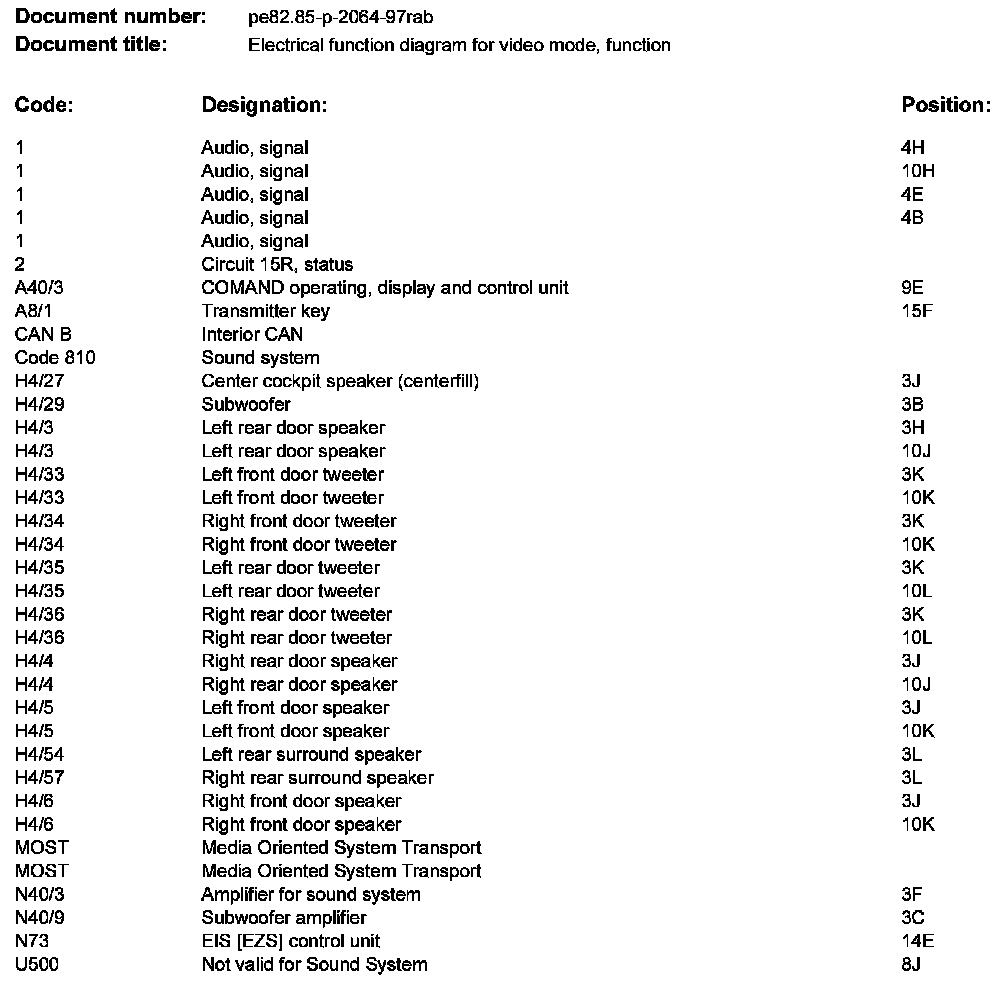

Component Description/Coordinates, 1 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
