PE82.85-P-2063RAA Electrical Function Diagram For Navigation Mode (COMAND), Function

Electrical Function Diagram For Navigation Mode (COMAND), Function PE82.85-P-2063RAA
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (498) Japan version
- with CODE (512) COMAND APS with DVD changer
- as of model year 09

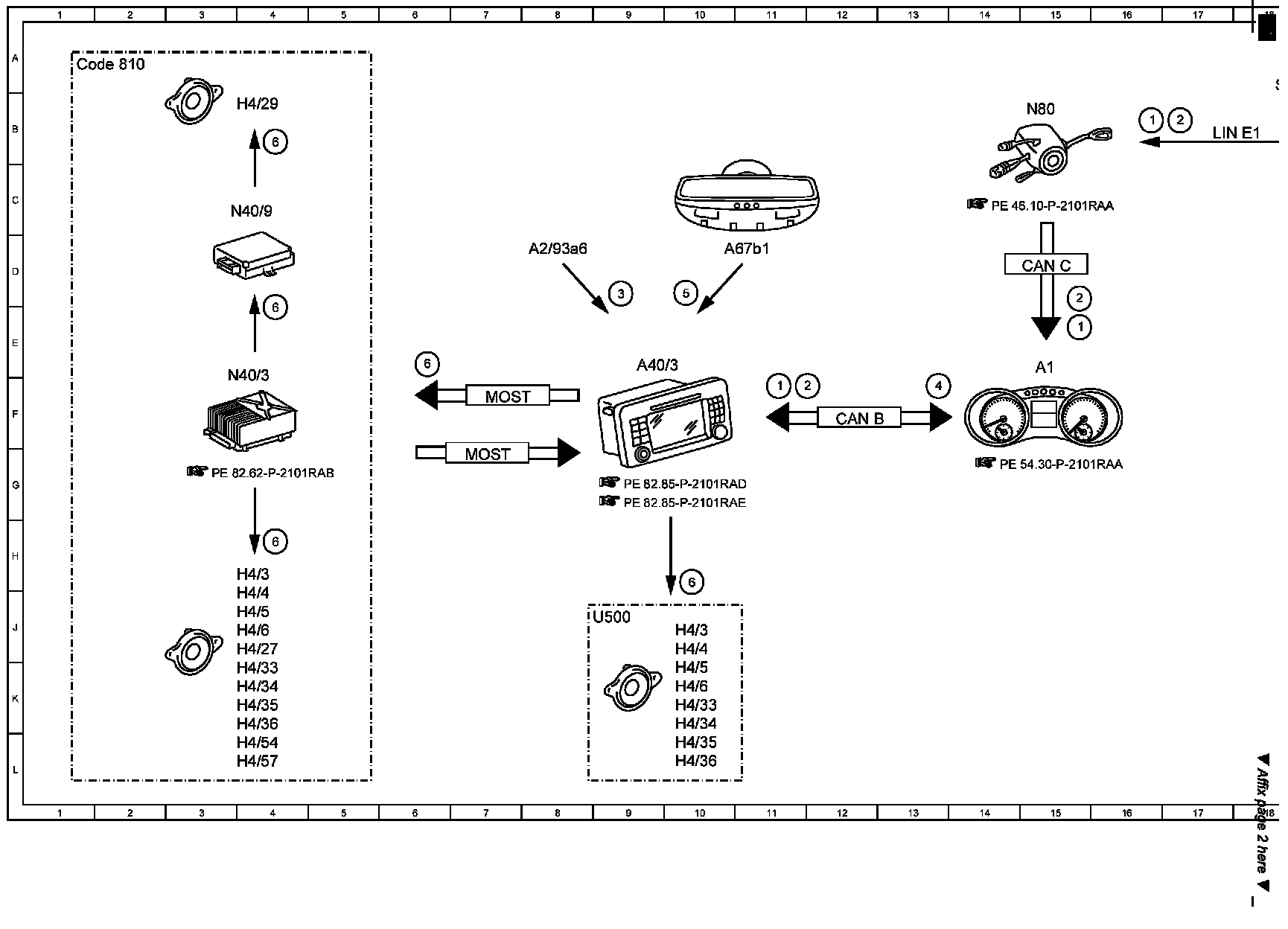

Function Diagram (Part 1):

Function Diagram (Part 2):

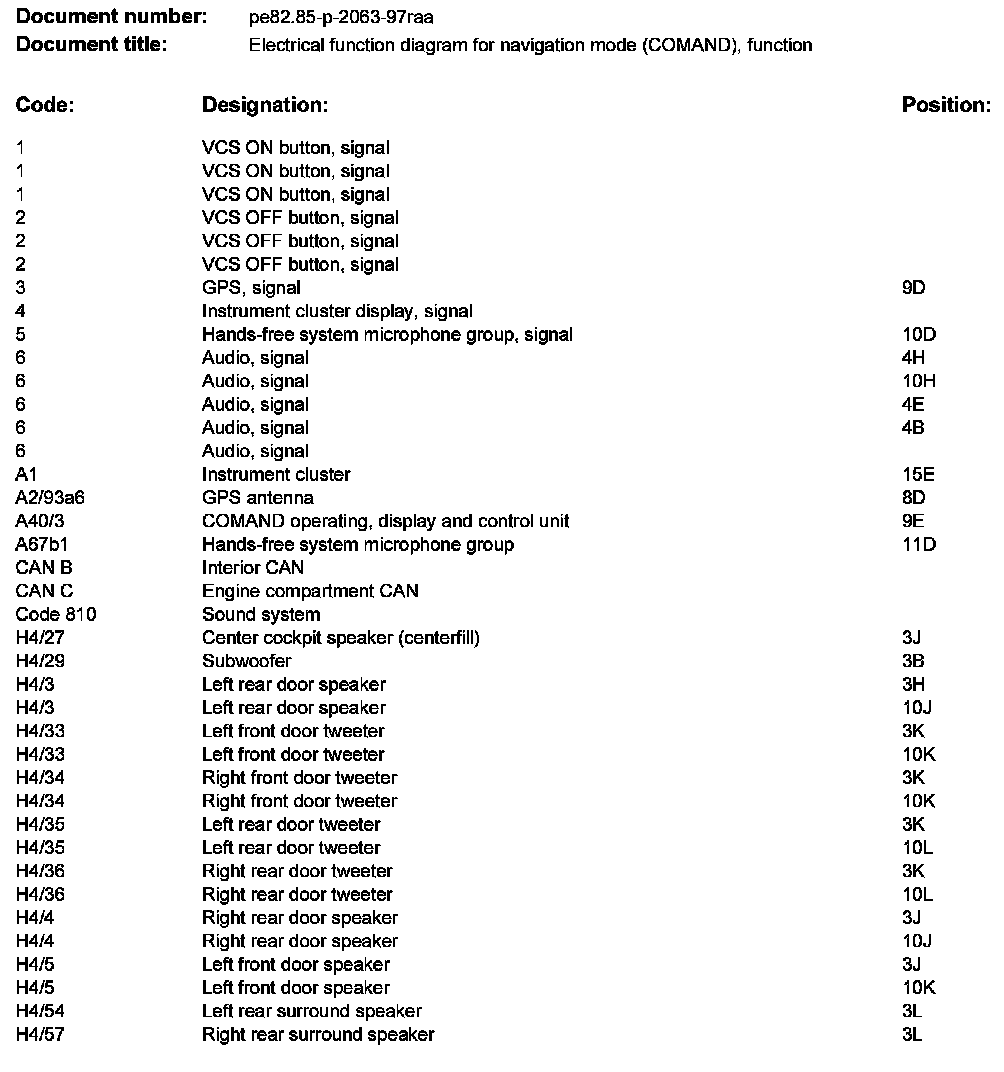

Component Description/Coordinates, 1 To H4/57:

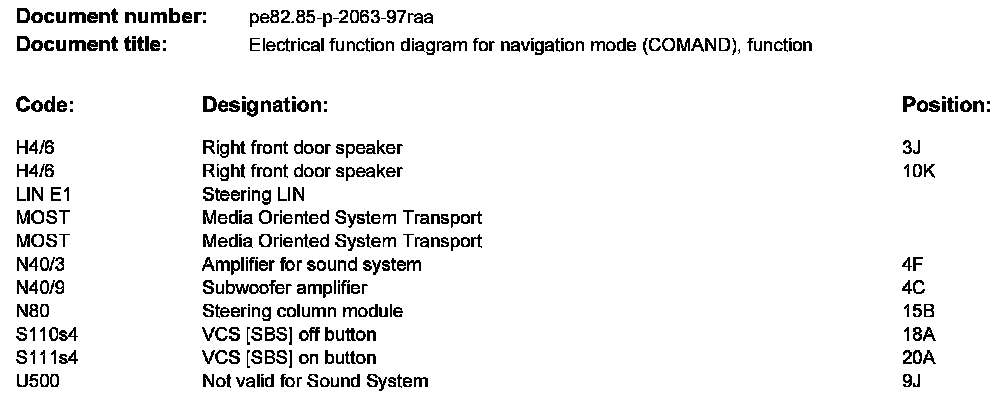

Component Description/Coordinates, H4/6 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
