PE82.85-P-2061RAB Electrical Function Diagram For Route Guidance By Voice Output (COMAND), Function

Electrical Function Diagram For Route Guidance By Voice Output (COMAND), Function PE82.85-P-2061RAB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version
- as of model year 09

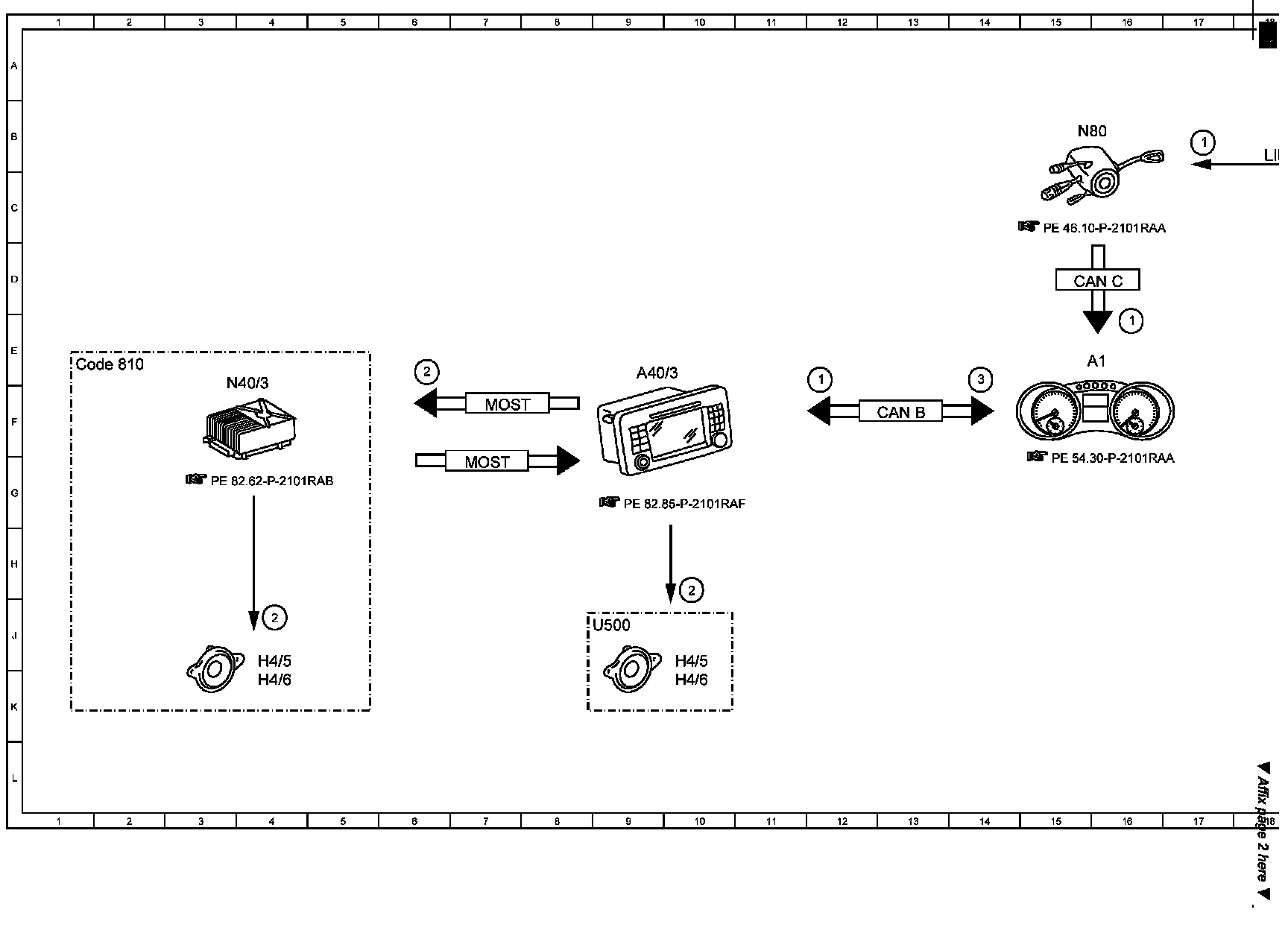

Function Diagram (Part 1):

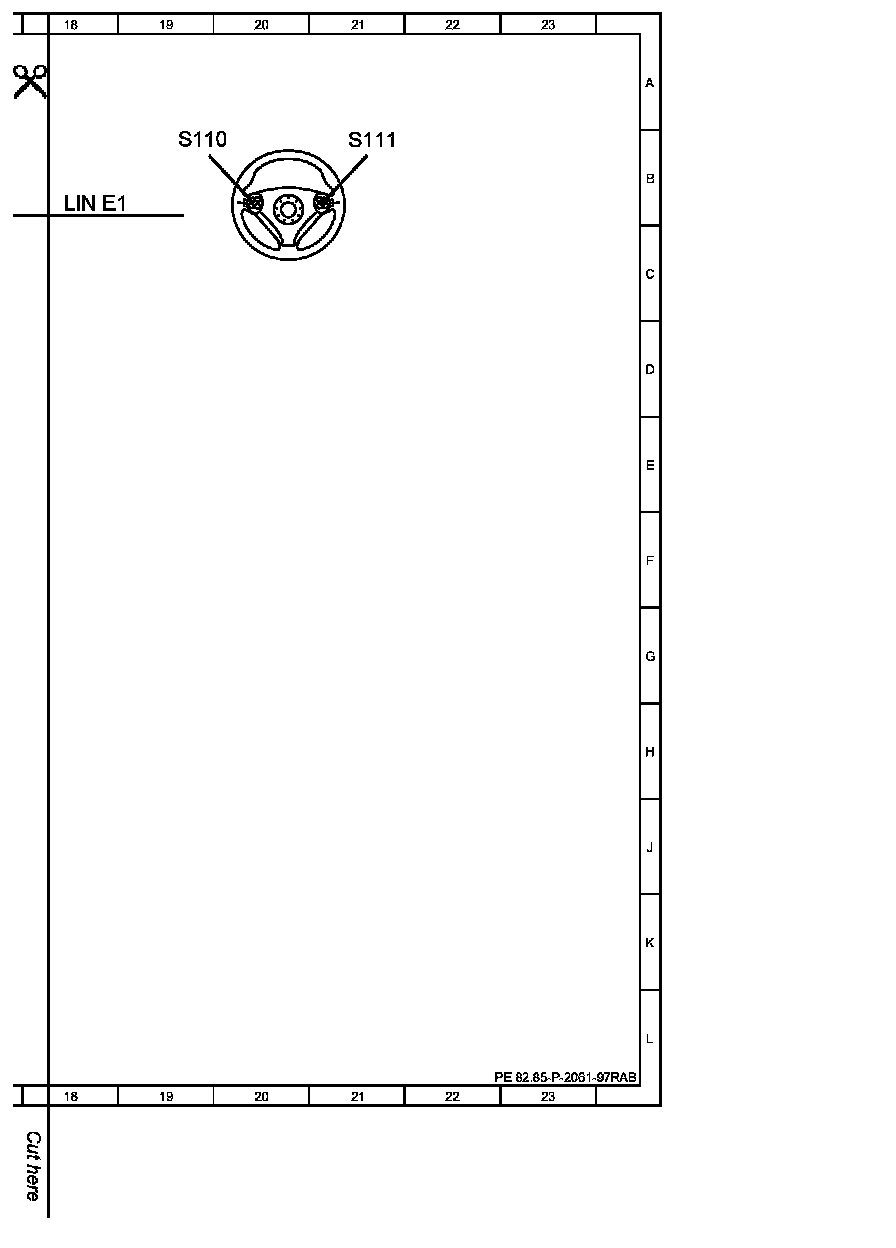

Function Diagram (Part 2):

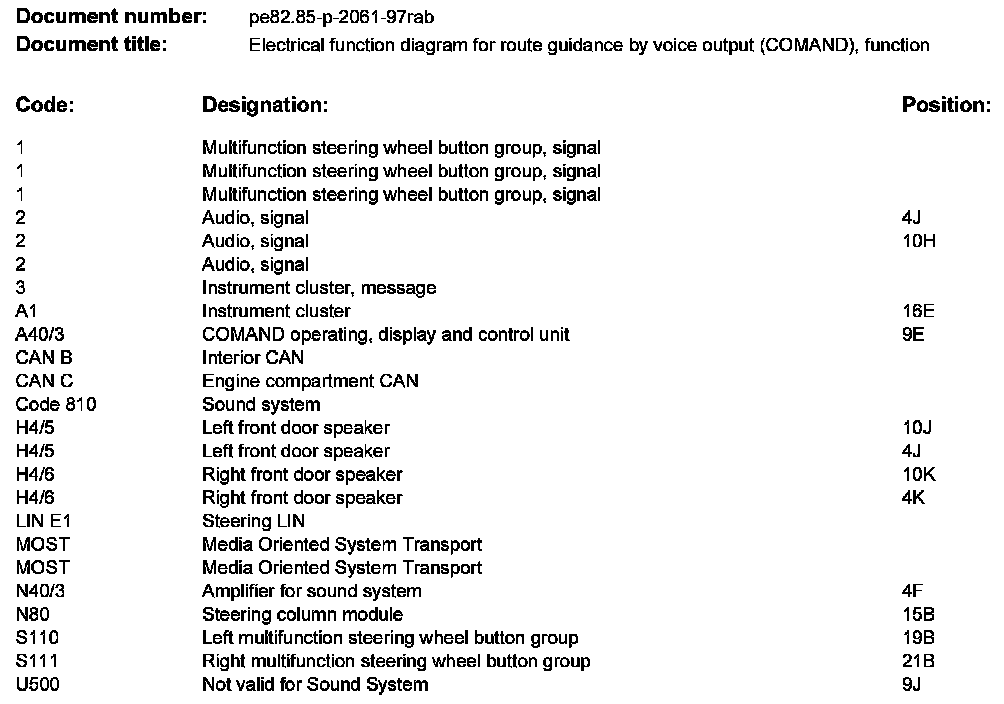

Component Description/Coordinates, 1 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
