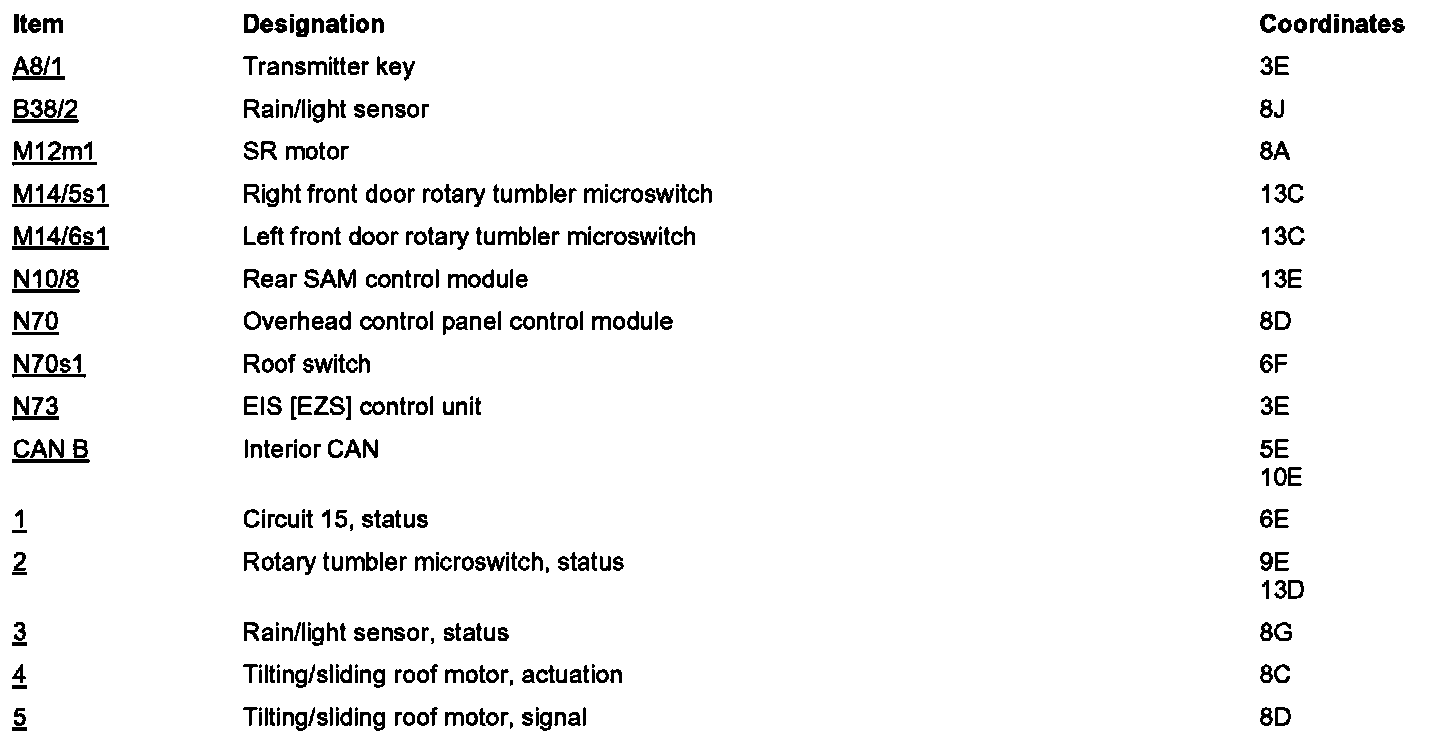

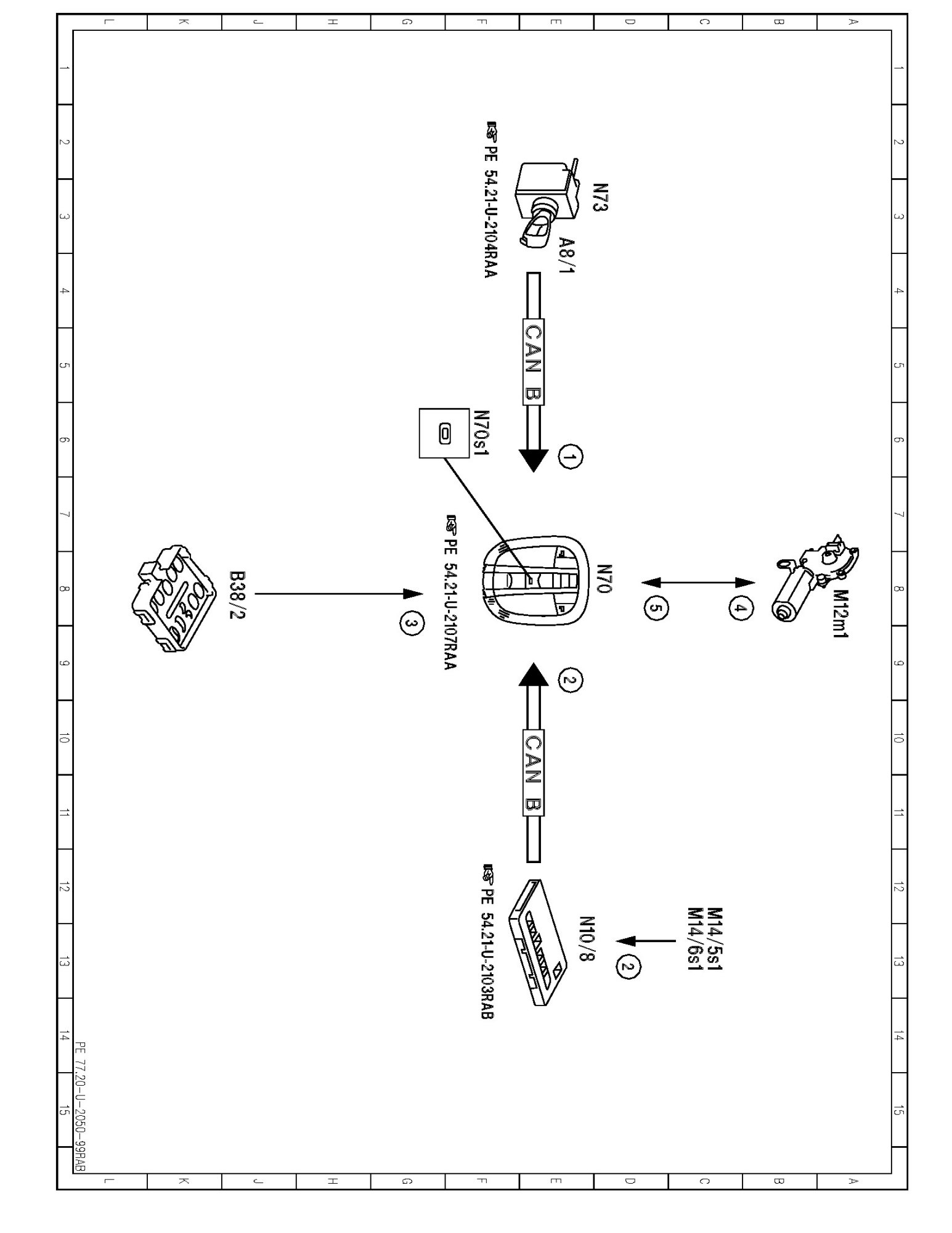

PE77.20-U-2050RAB Electrical Function Diagram For Tilting/Sliding Roof (SHD)

PE77.20-U-2050RAB Electrical Function Diagram For Tilting/Sliding Roof (SHD)
- with CODE (414) Power glass tilting/sliding roof
- as of model year 09










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
