AR72.12-P-0103RT Remove/Install Rear Door Module
AR72.12-P-0103RT Remove/Install Rear Door Module
AR72.12-P-0103RT Remove/Install Rear
Door Module

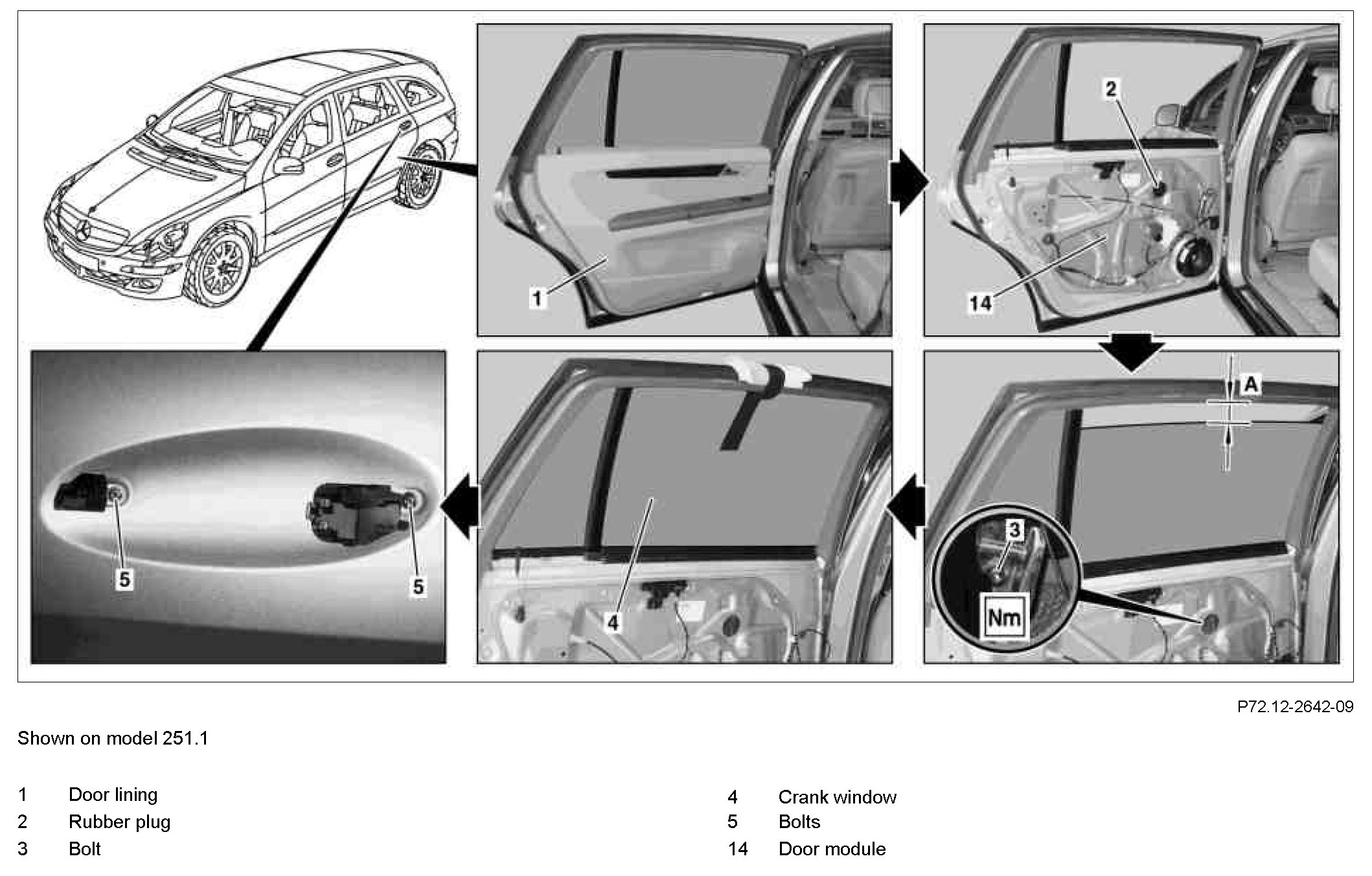

Component Identification:

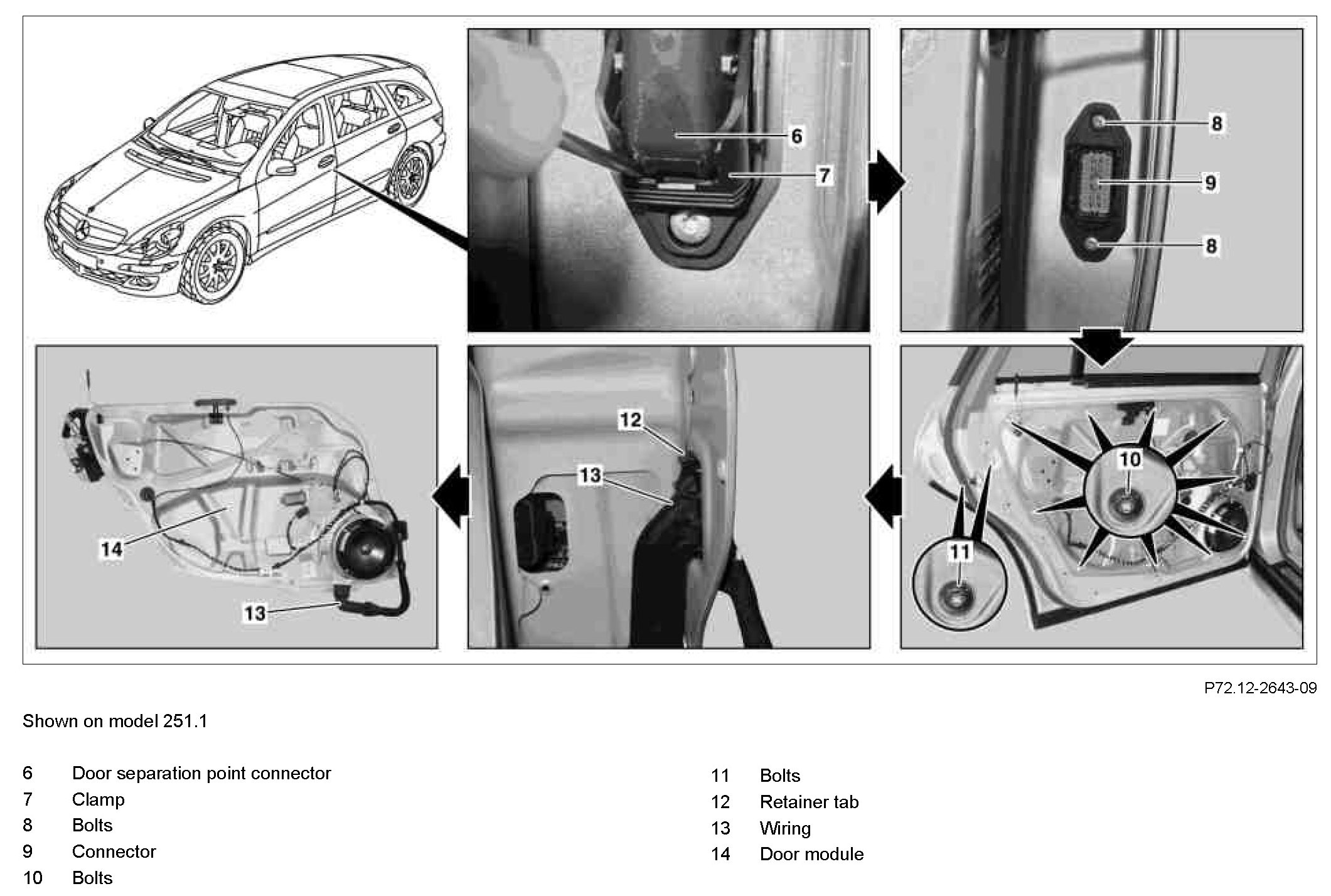

Component Identification:

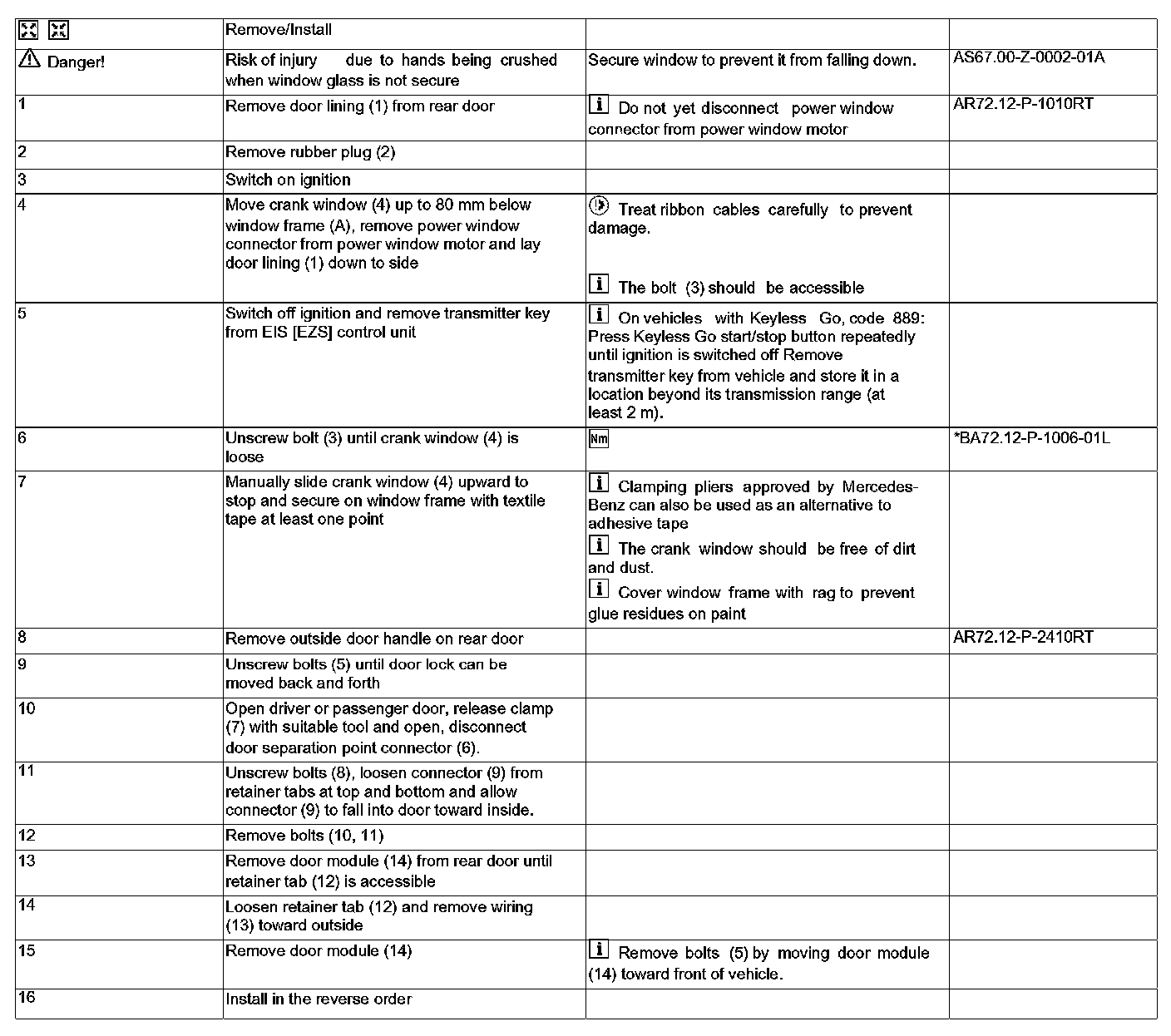

Steps 1 - 16:

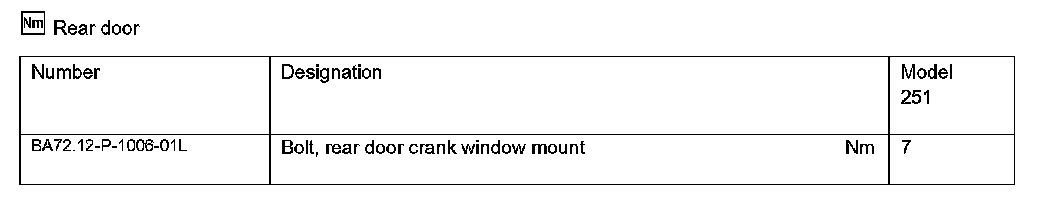

Rear Door:
