PE82.60-P-2057RAA Electrical Function Diagram For Digital Audio Broadcasting, Function

Electrical Function Diagram For Digital Audio Broadcasting, Function PE82.60-P-2057RAA
- with CODE (537) Digital radio
- as of model year 2009

Function Diagram (Part 1):

Function Diagram (Part 2):

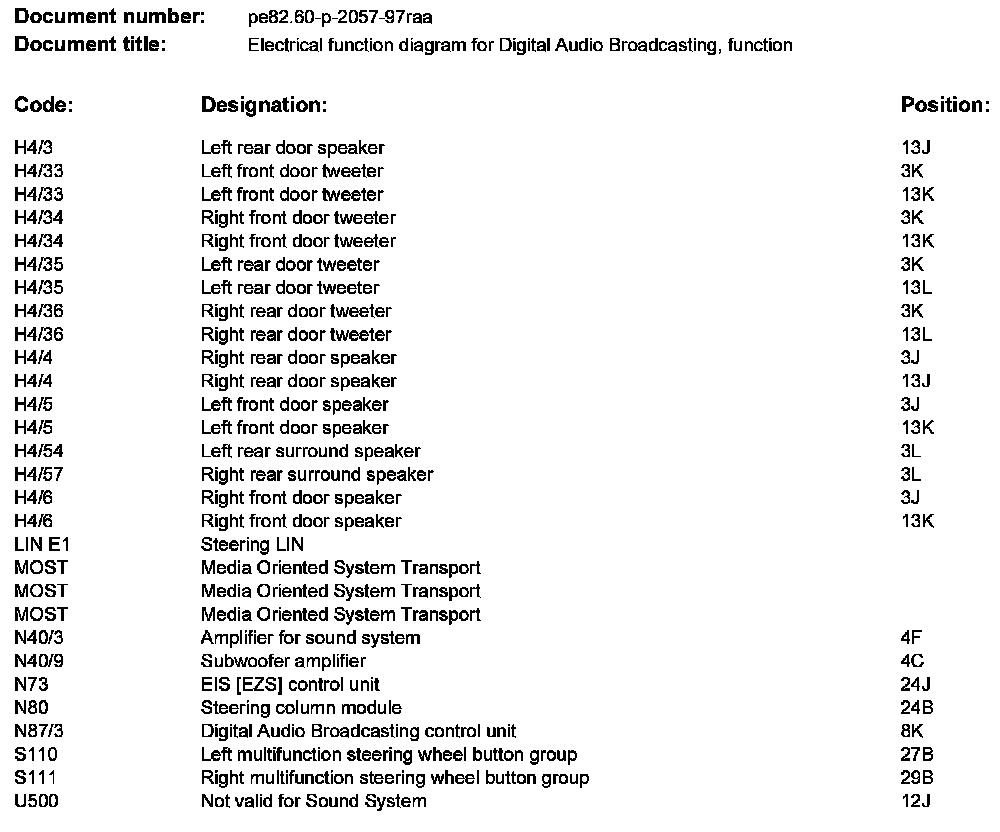

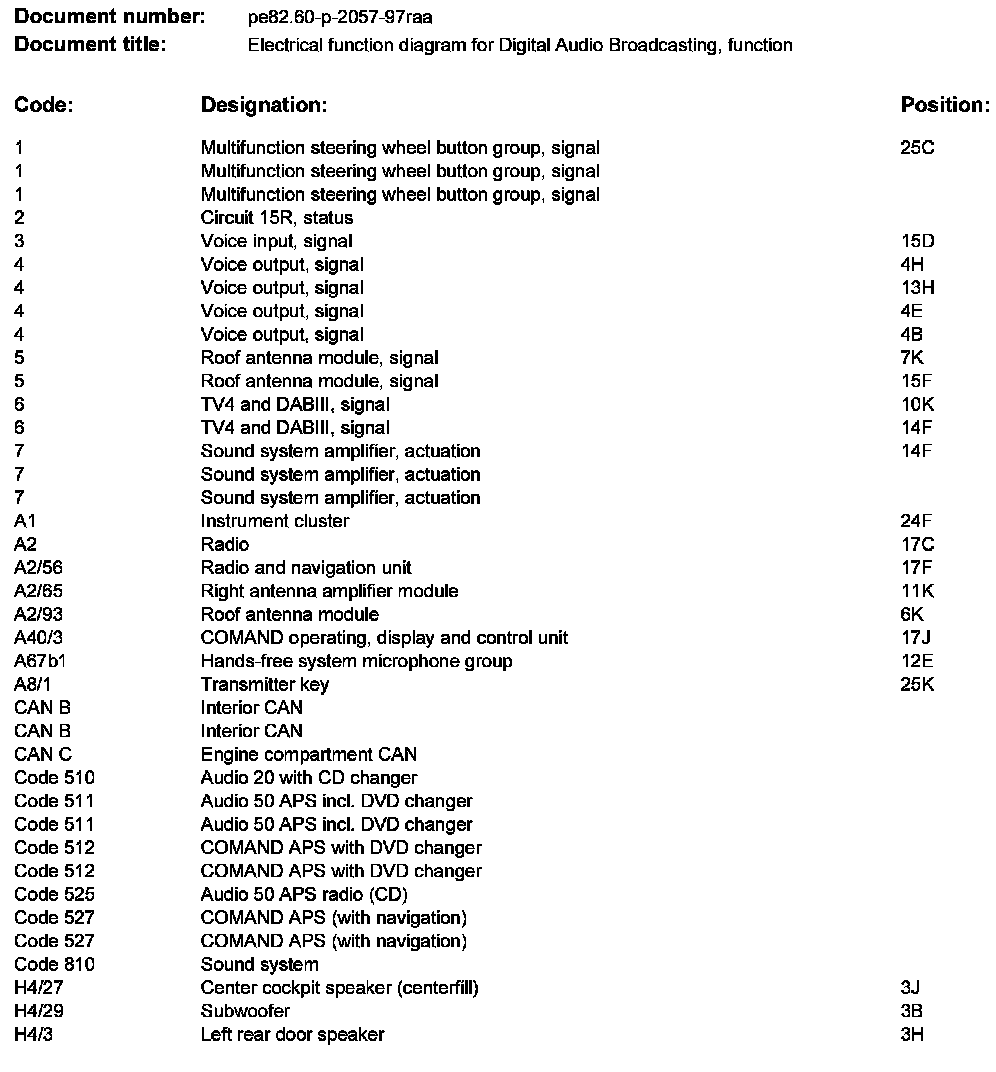

Component Description/Coordinates, 1 To H4/3:

Component Description/Coordinates, H4/3 To U500:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
