AR54.15-P-1258GZA Remove/Install Fuse and Relay Box In Engine Compartment, Right Front



AR54.15-P-1258GZA Remove/Install Fuse And Relay Box In Engine Compartment, Right Front

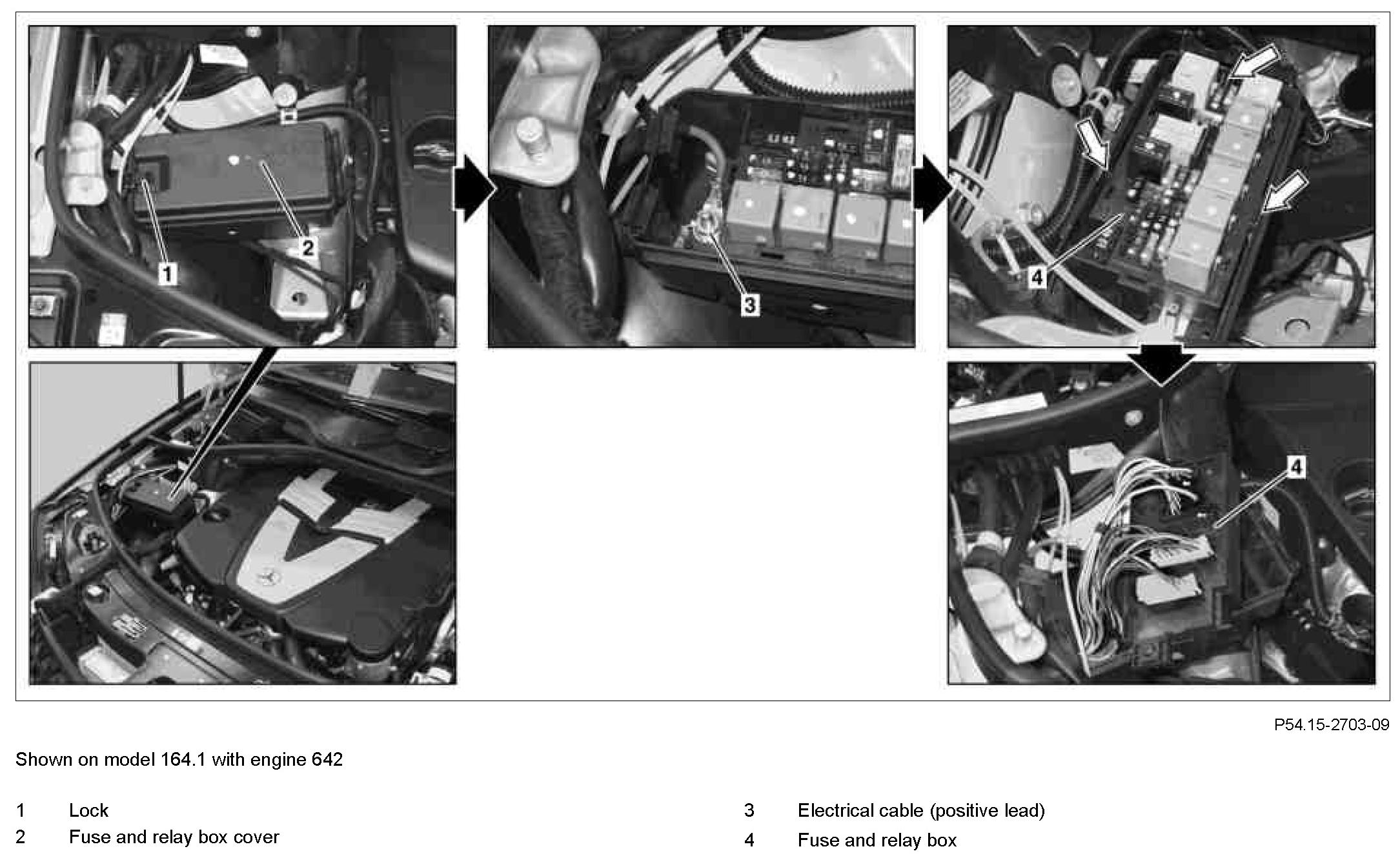

Component Identification:

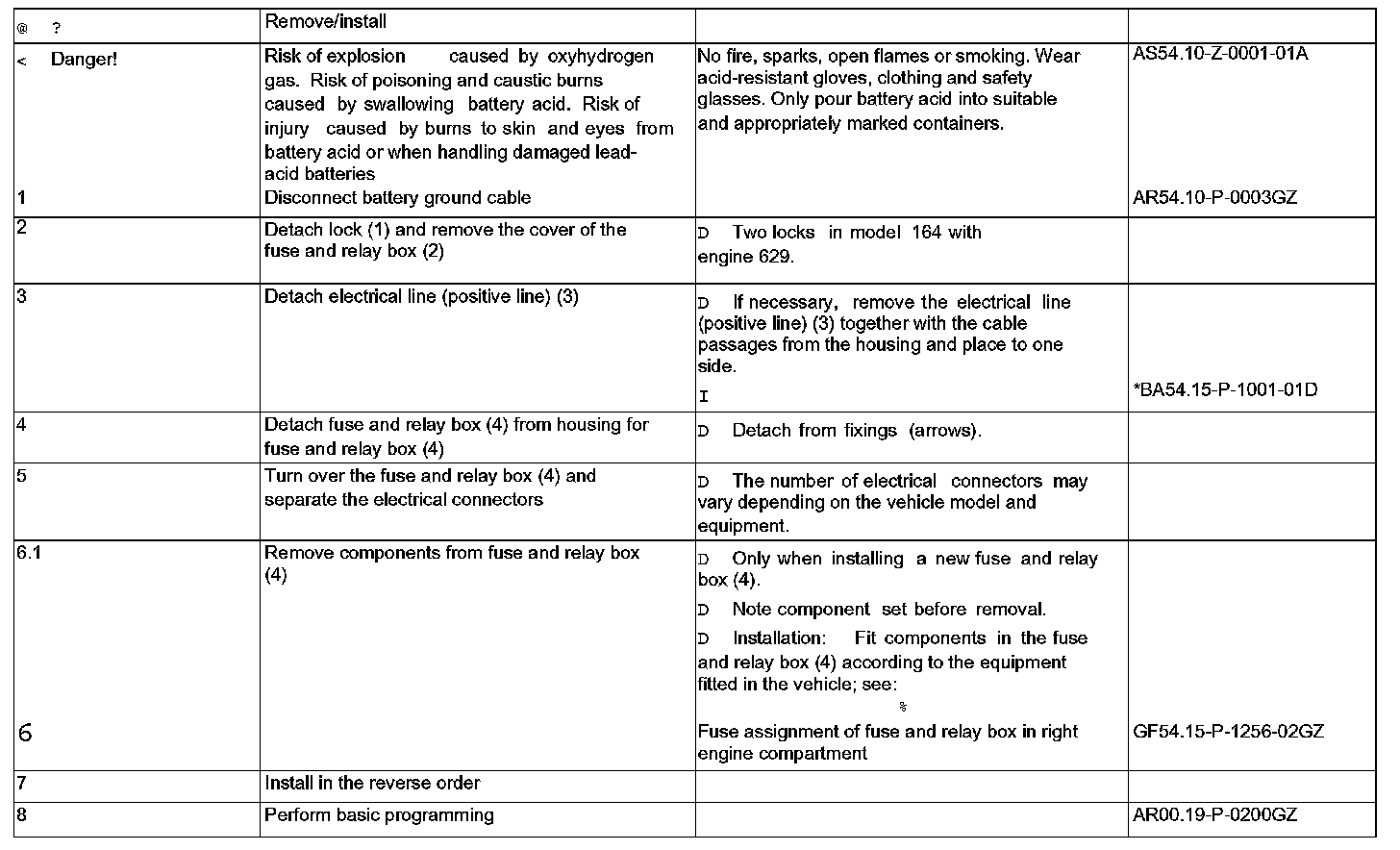

Steps 1 - 8:

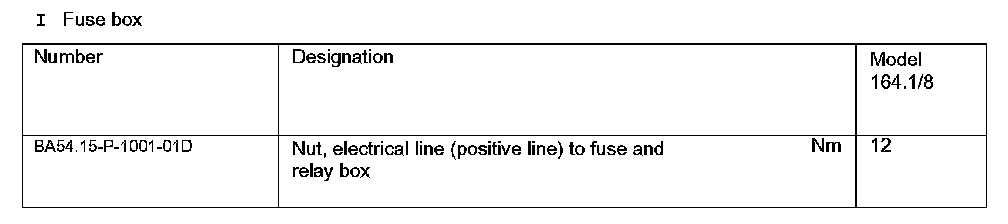

Fuse Box:
