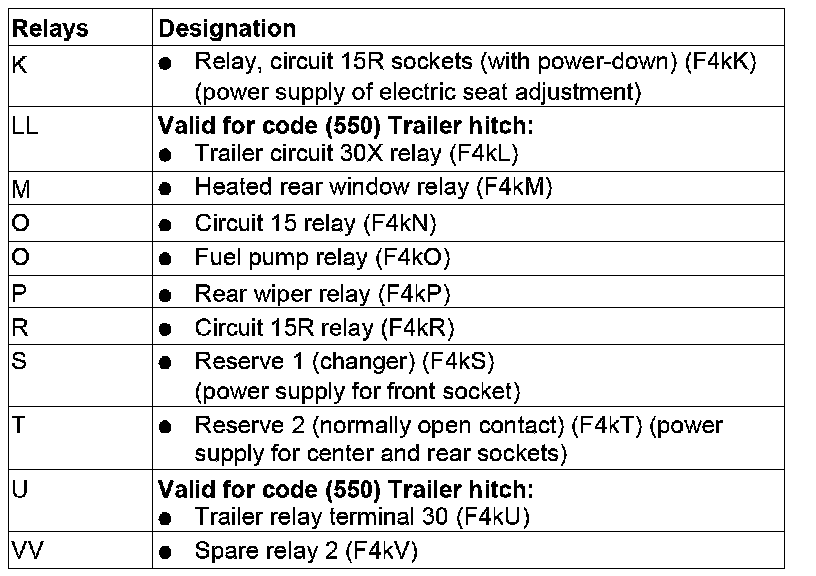

GF54.15-P-1257-08GM Relay Assignment of the Load Compartment Fuse and Relay Box



GF54.15-P-1257-08GM Relay Assignment Of The Load Compartment Fuse And Relay Box
- as of model year 09

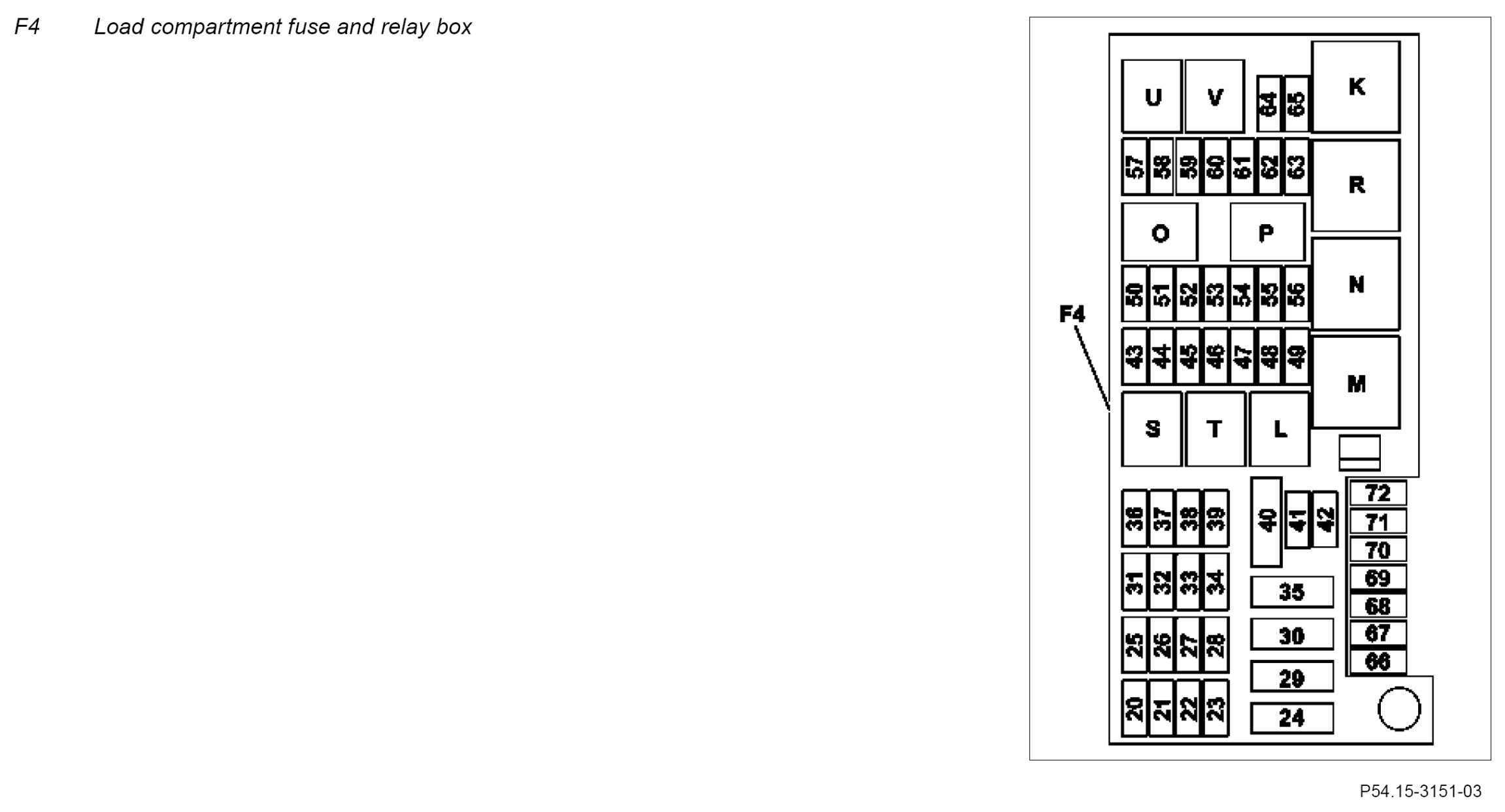

Component Identification:
