GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box
GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box
GF54.15-P-1256-15GM Fuse Assignment of Battery Compartment Prefuse Box

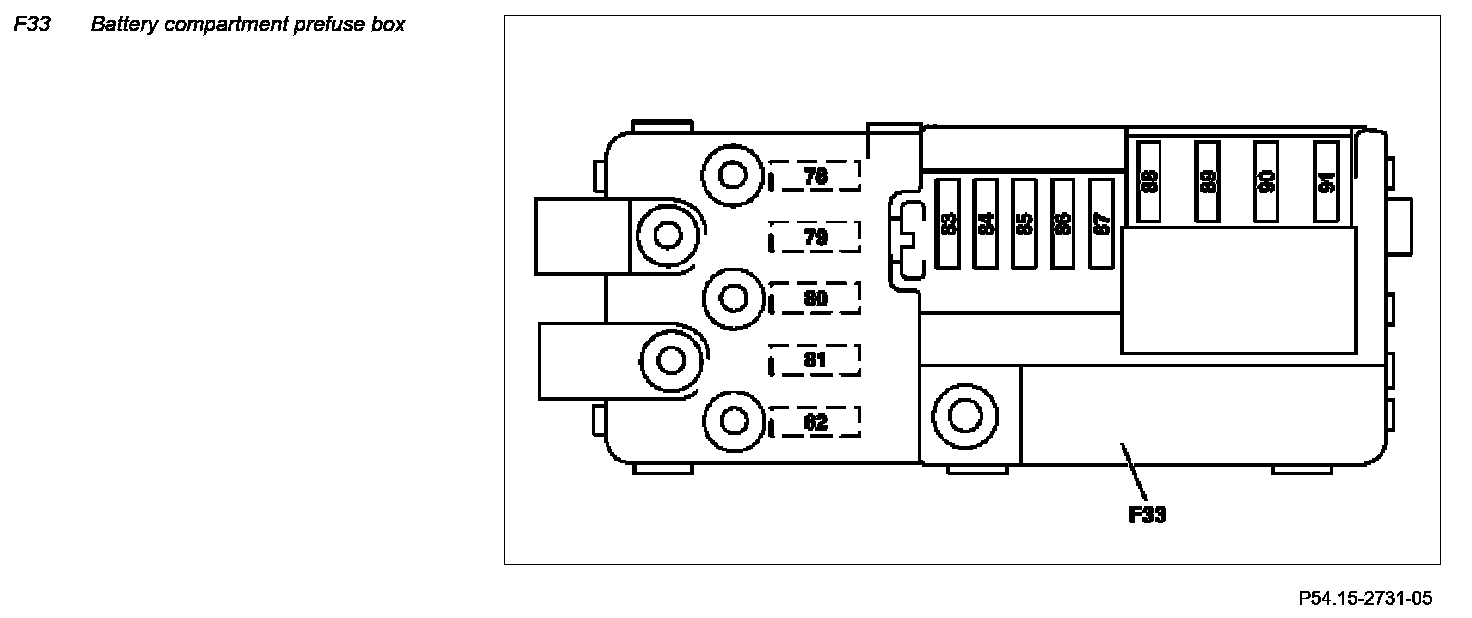

Component Location:

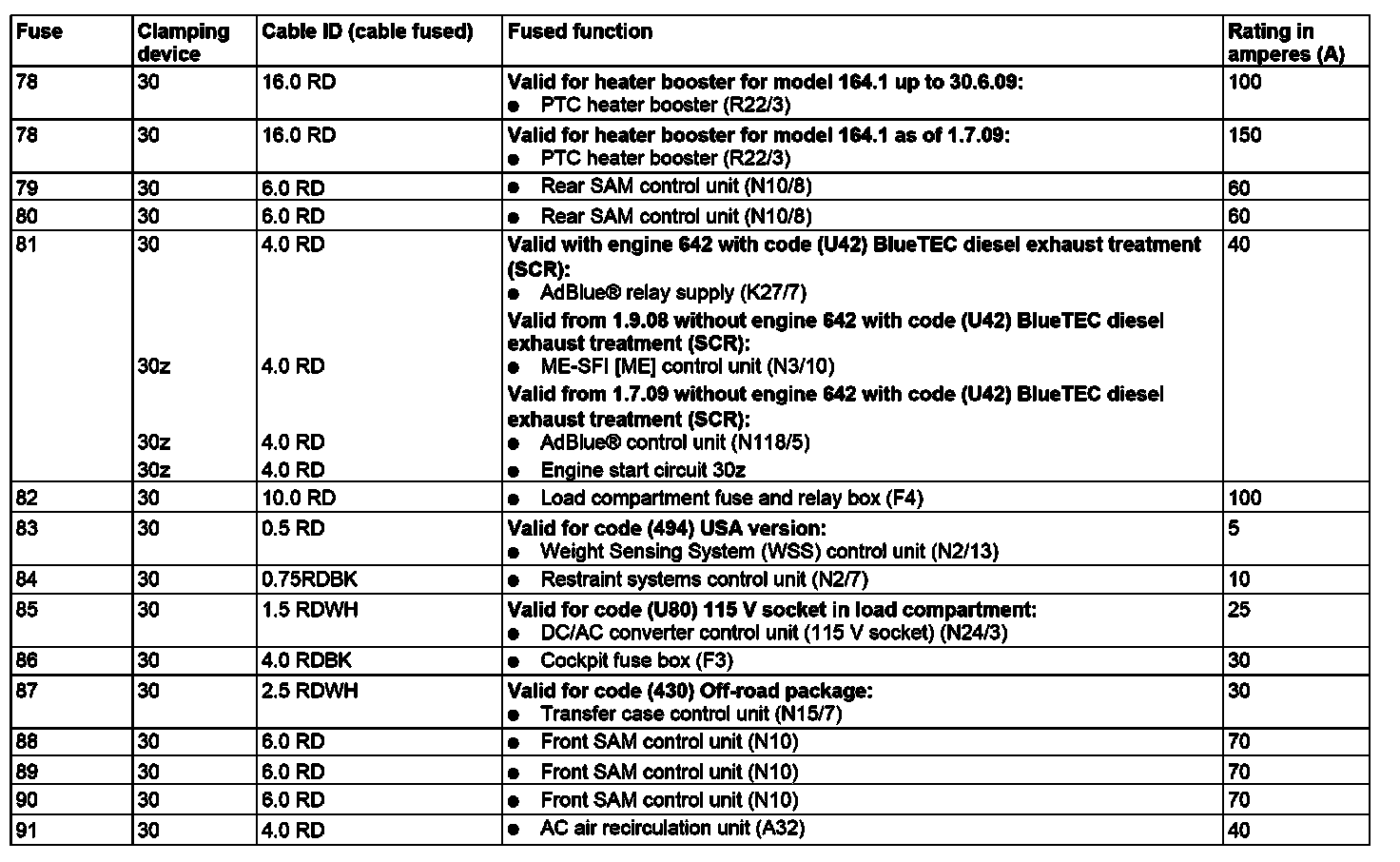

Fuse 78 To 91:
