Home >> Mercedes Benz Truck >> 2009 >> ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> GF54.15-P-1256-02GM Fuse Assignment of Fuse and Relay Box In Right Engine Compartment

GF54.15-P-1256-02GM Fuse Assignment of Fuse and Relay Box In Right Engine Compartment




GF54.15-P-1256-02GM Fuse Assignment of Fuse and Relay Box In Right Engine Compartment

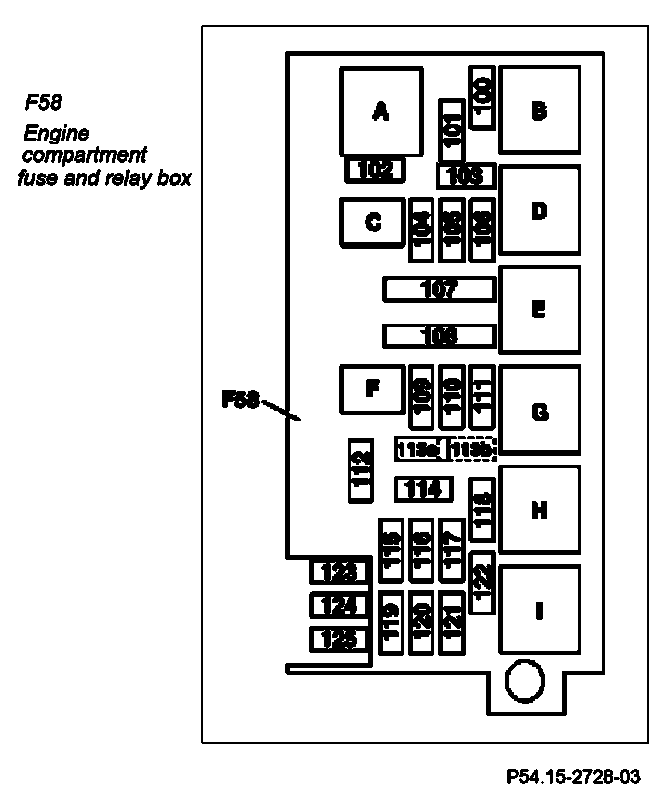

Component Location:

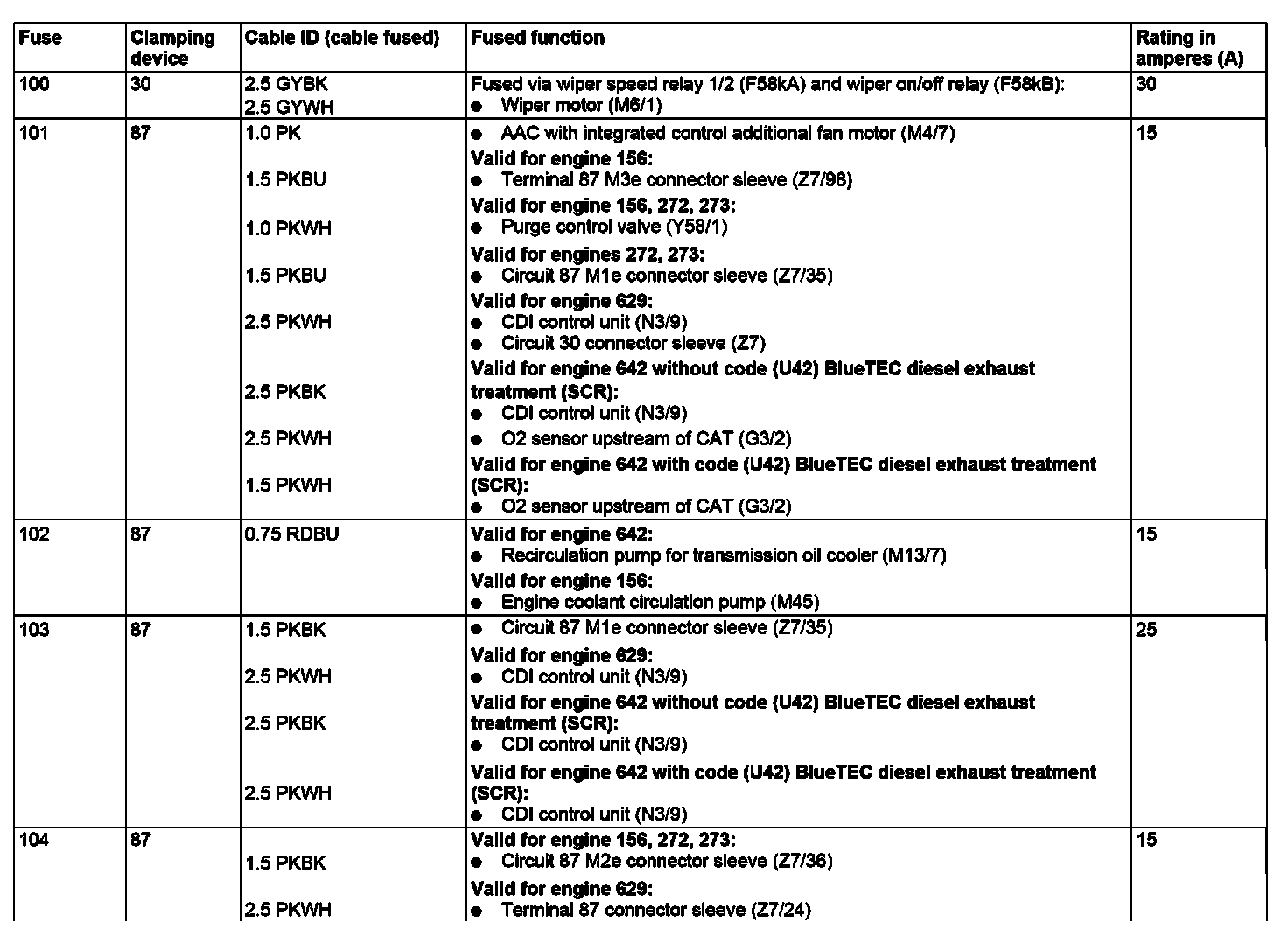

Fuse 100 To 104:

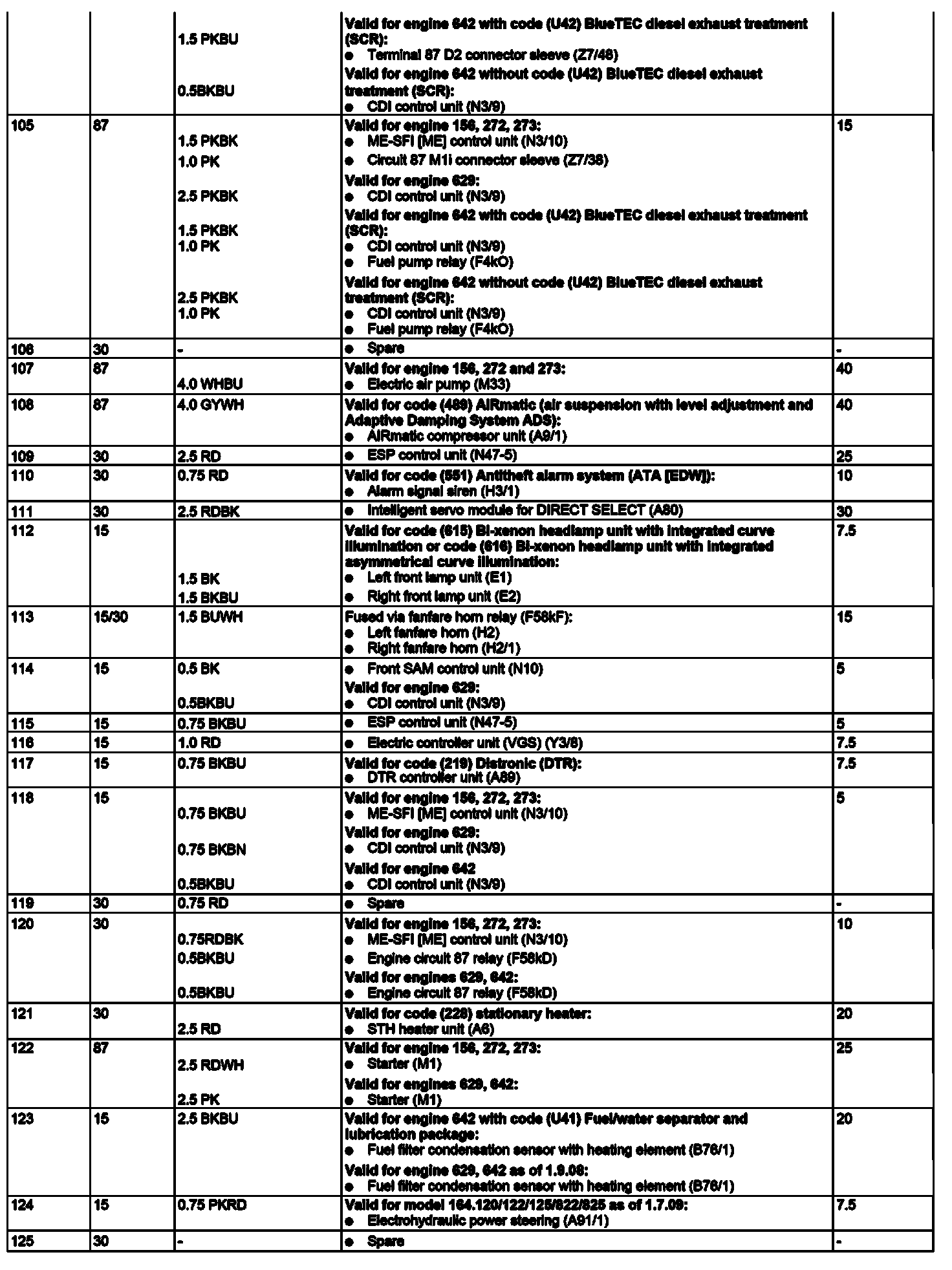

Fuse 104 Continued To 125:
