Electrical Diagrams

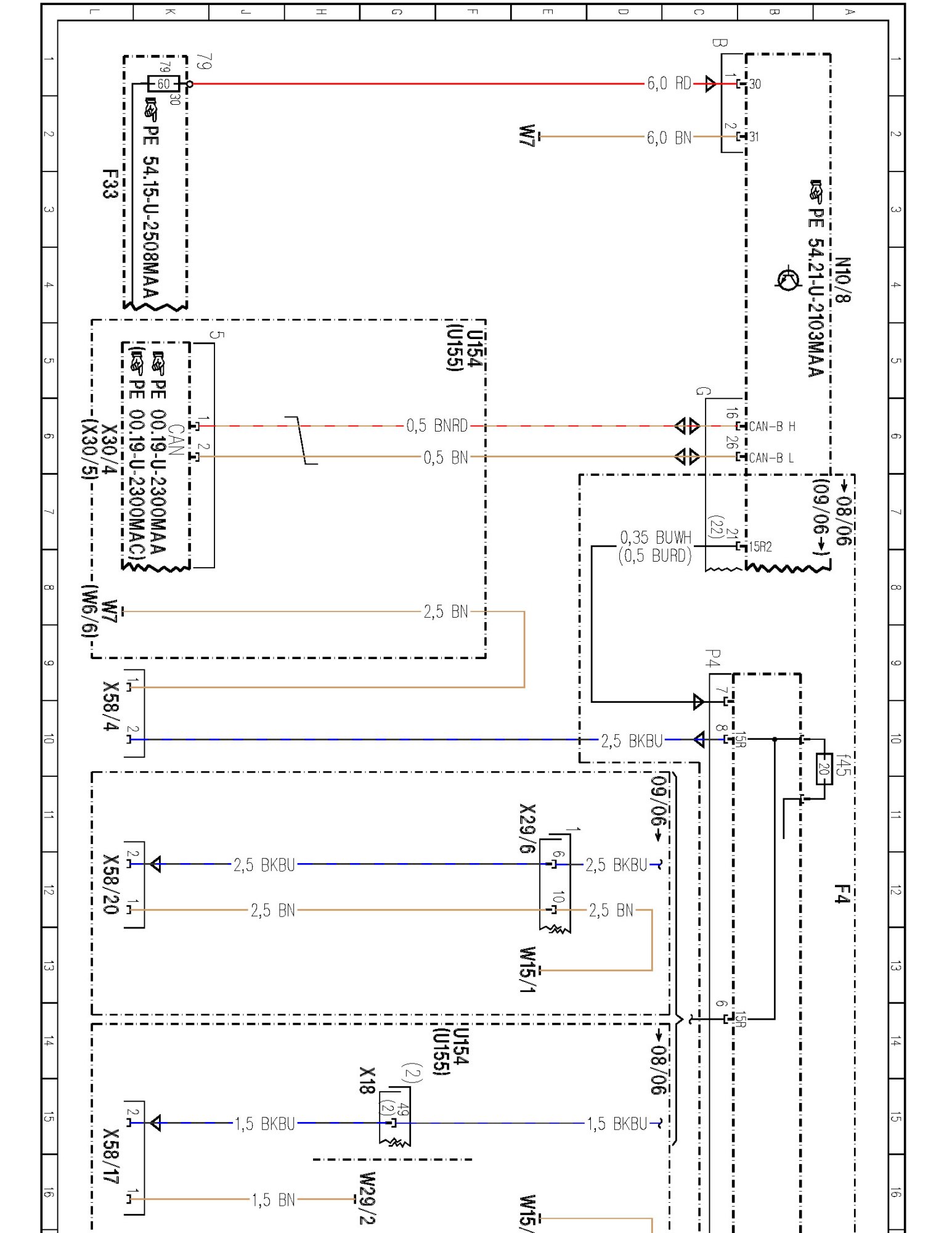

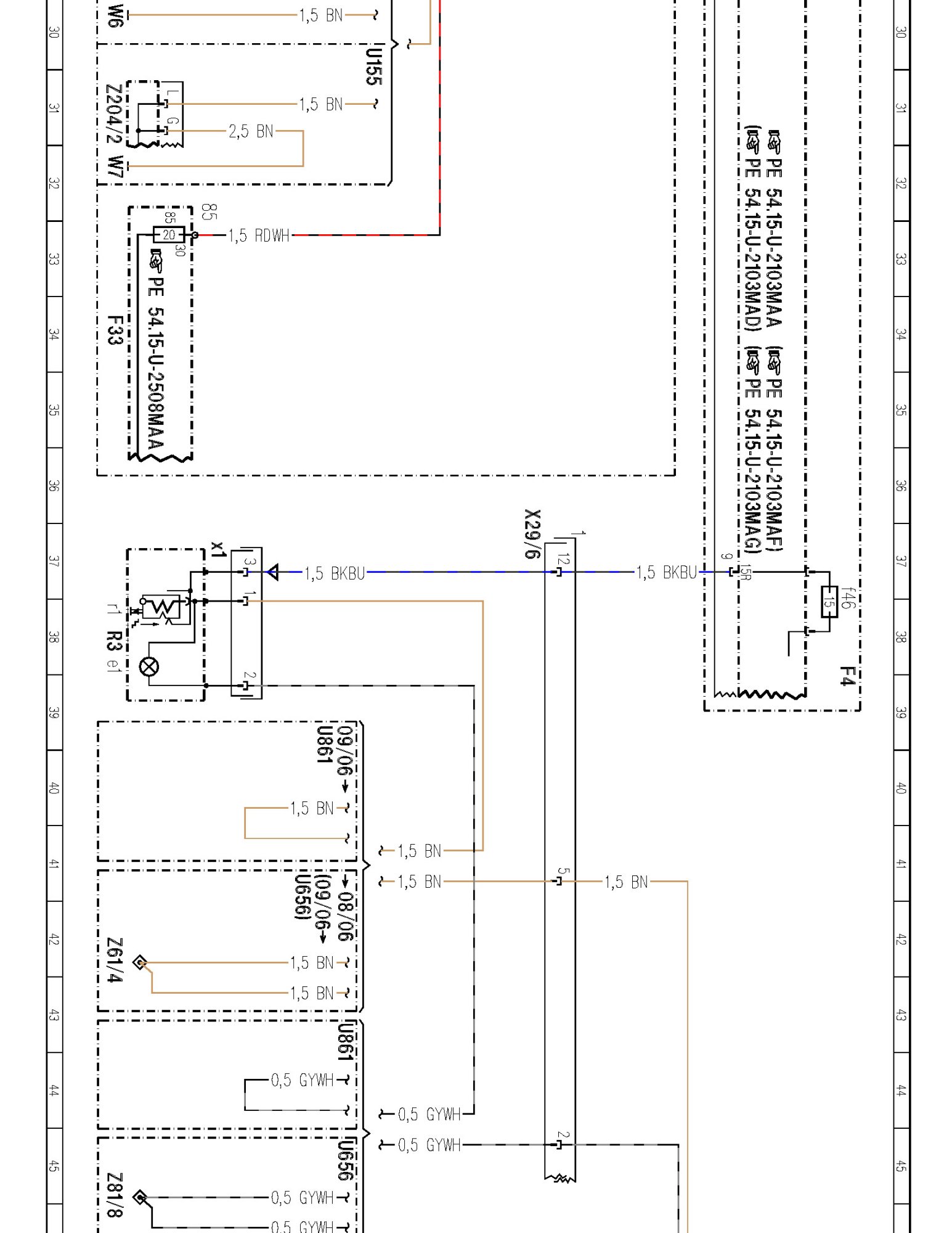

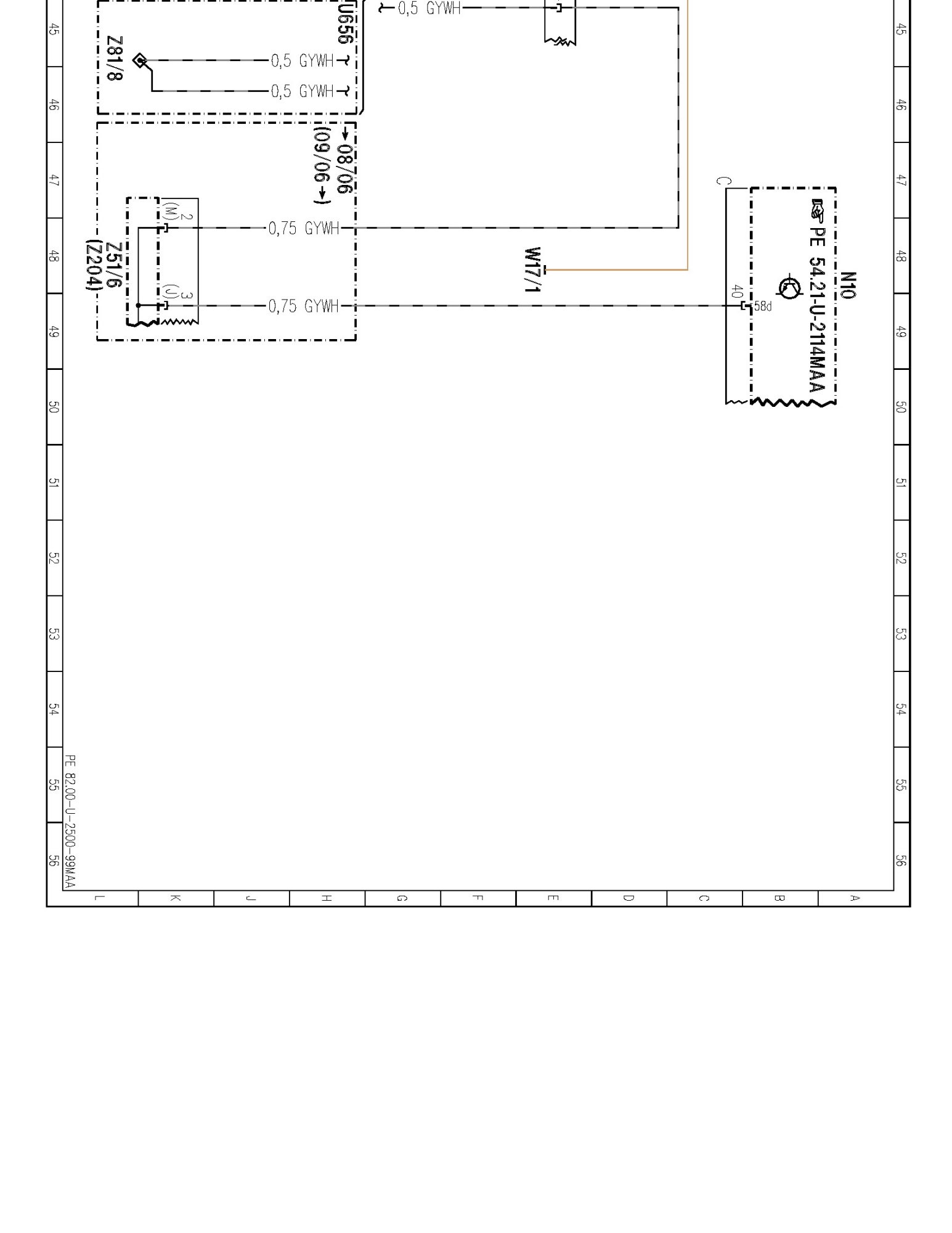

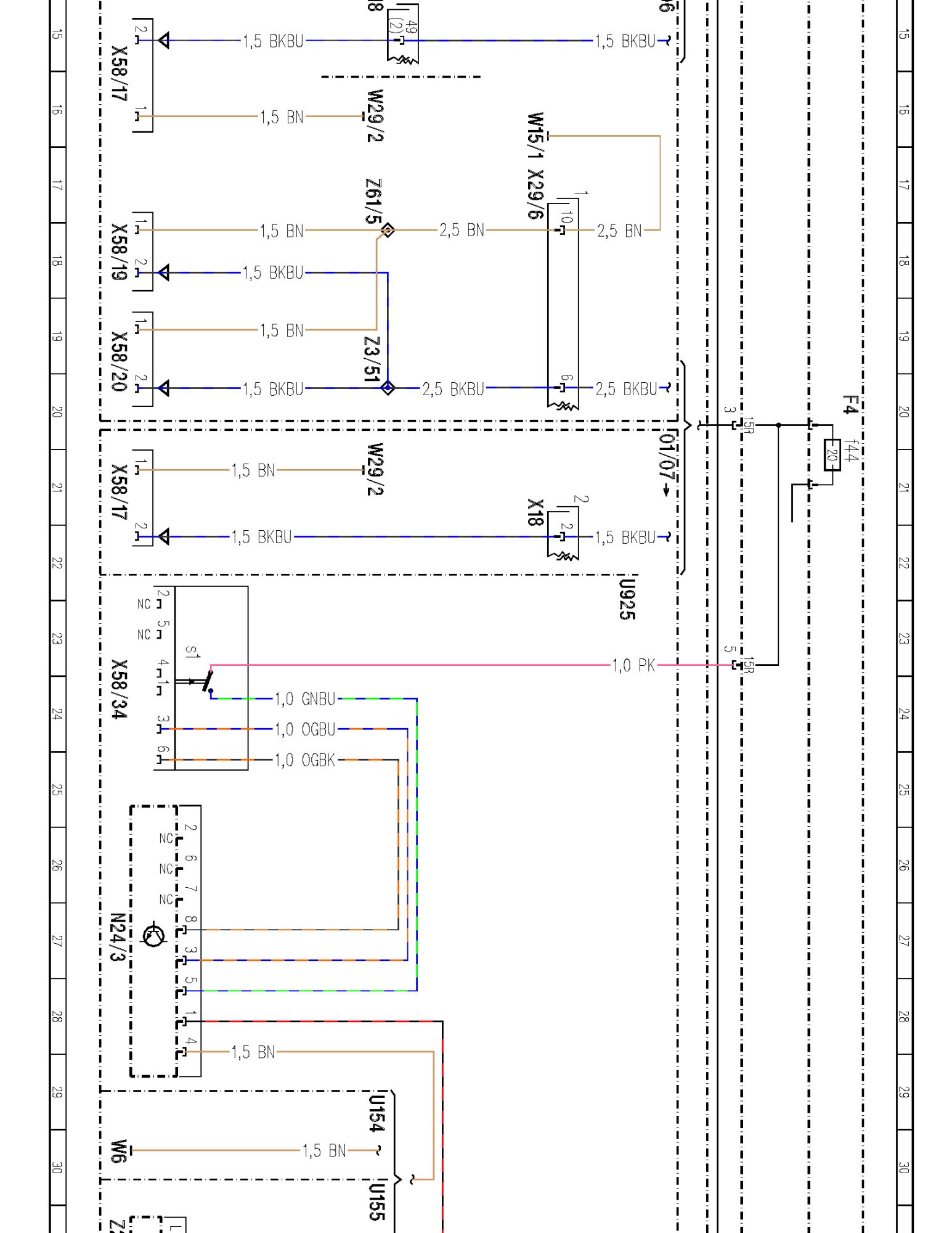

PE82.00-U-2500MAA Sockets In Interior
- with CODE (U80) 115V socket in load compartment

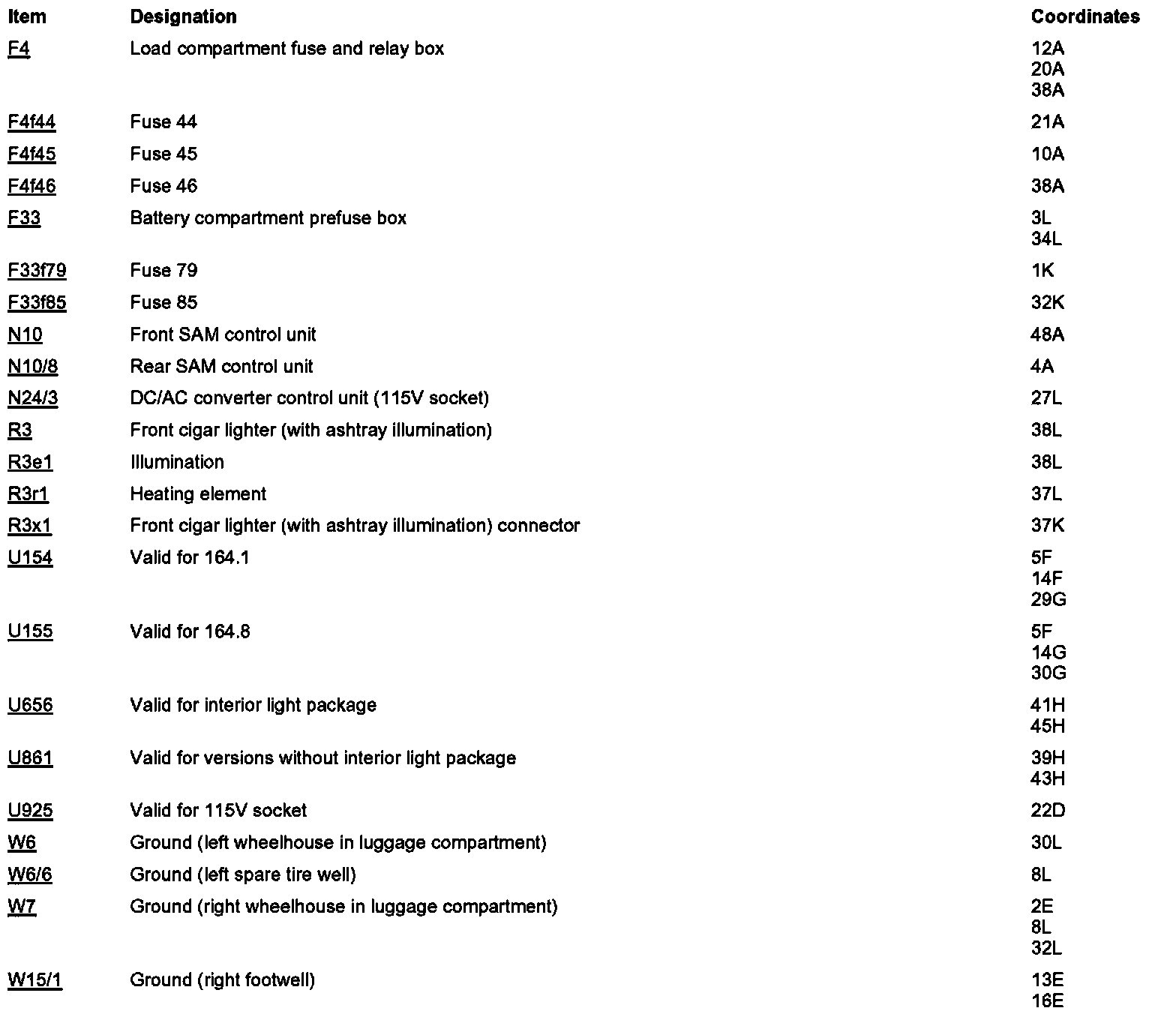

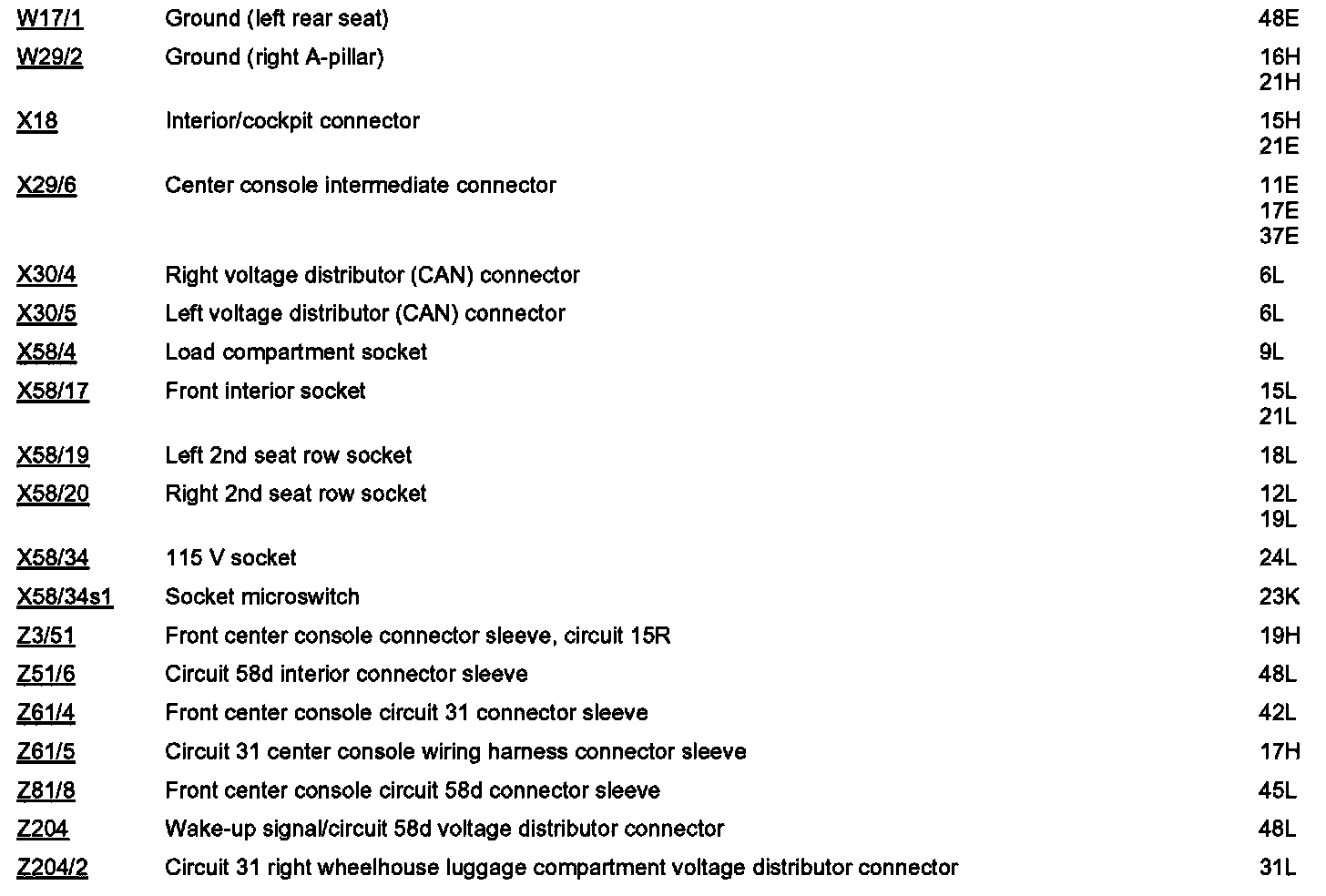

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
