AR03.10-P-6111-06PI Install, Measure Conrod Bearings

AR03.10-P-6111-06PI Install, measure conrod bearings

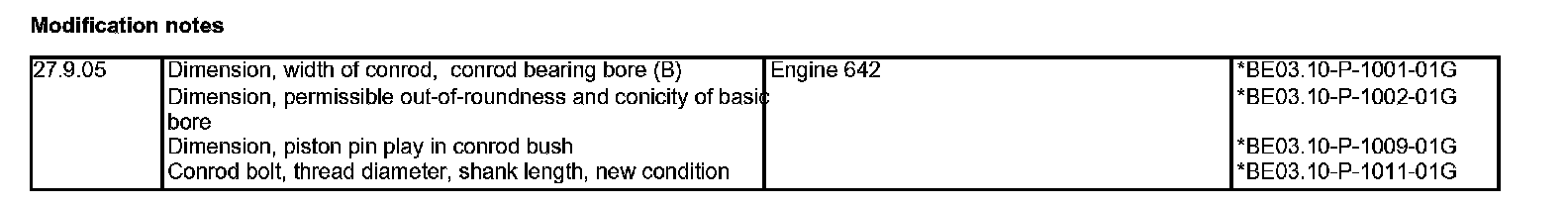

Modification Notes

Modification notes:

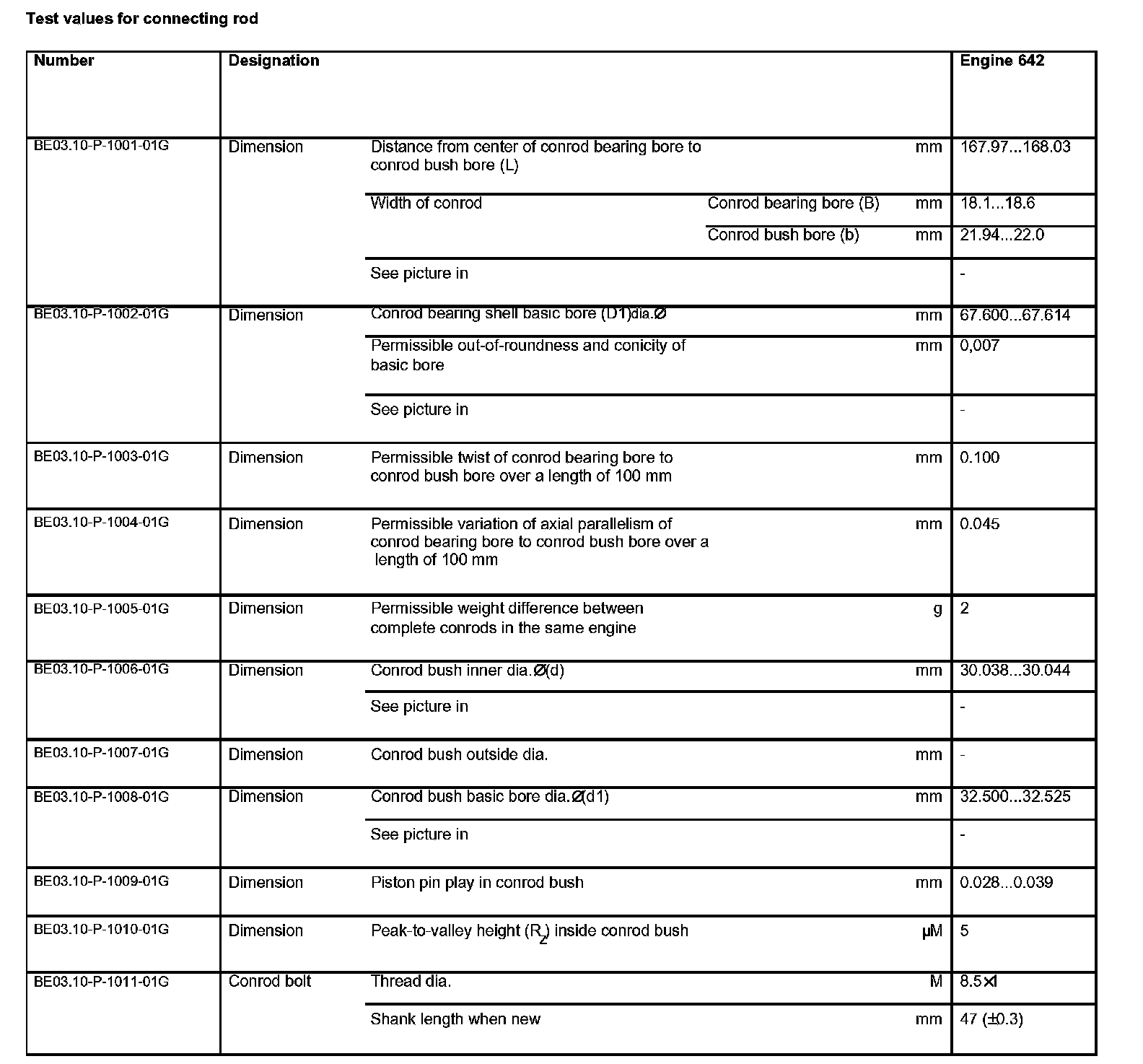

Test values for connecting rod

Test values for connecting rod:

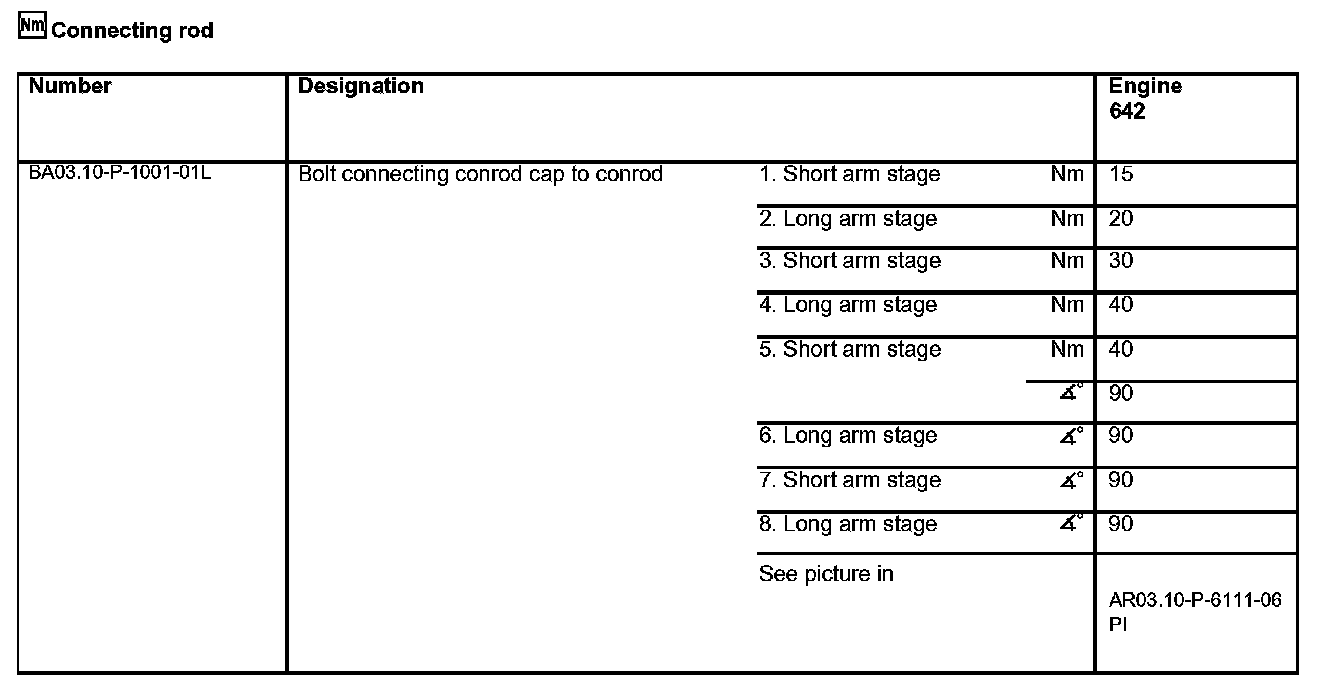

Connecting rod:

1 Clean bearing points of conrod, conrod bearing caps and of conrod bearing journals with a chamois leather.
Blow through oil galleries in direction of flow oil with compressed air. Do not use any hard objects for cleaning.
2 Install conrod bearing cap with conrod bearing shells.
3 Coat the conrod bolt threads and the contact surfaces of the conrod bolt heads with engine oil.

Component Identification:

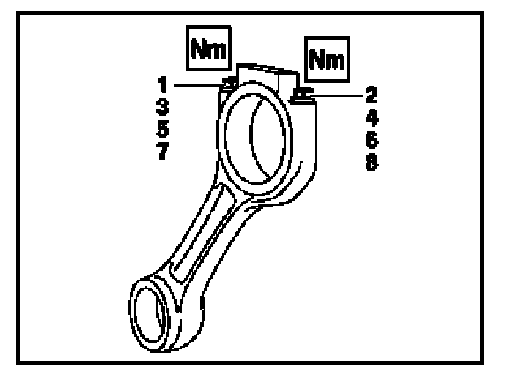

4 Screw in conrod bolts and tighten according to tightening instructions.
The conrods are cracked (broken). New conrods must be fitted following removal as the dimensional accuracy of the conrods after opening can not be guaranteed. The conrods are supplied with the assembly bolts and must be replaced with conrods with the assembly locking element.
