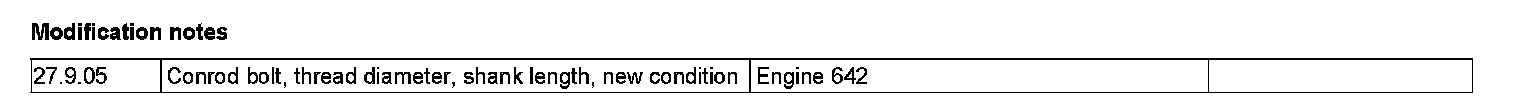

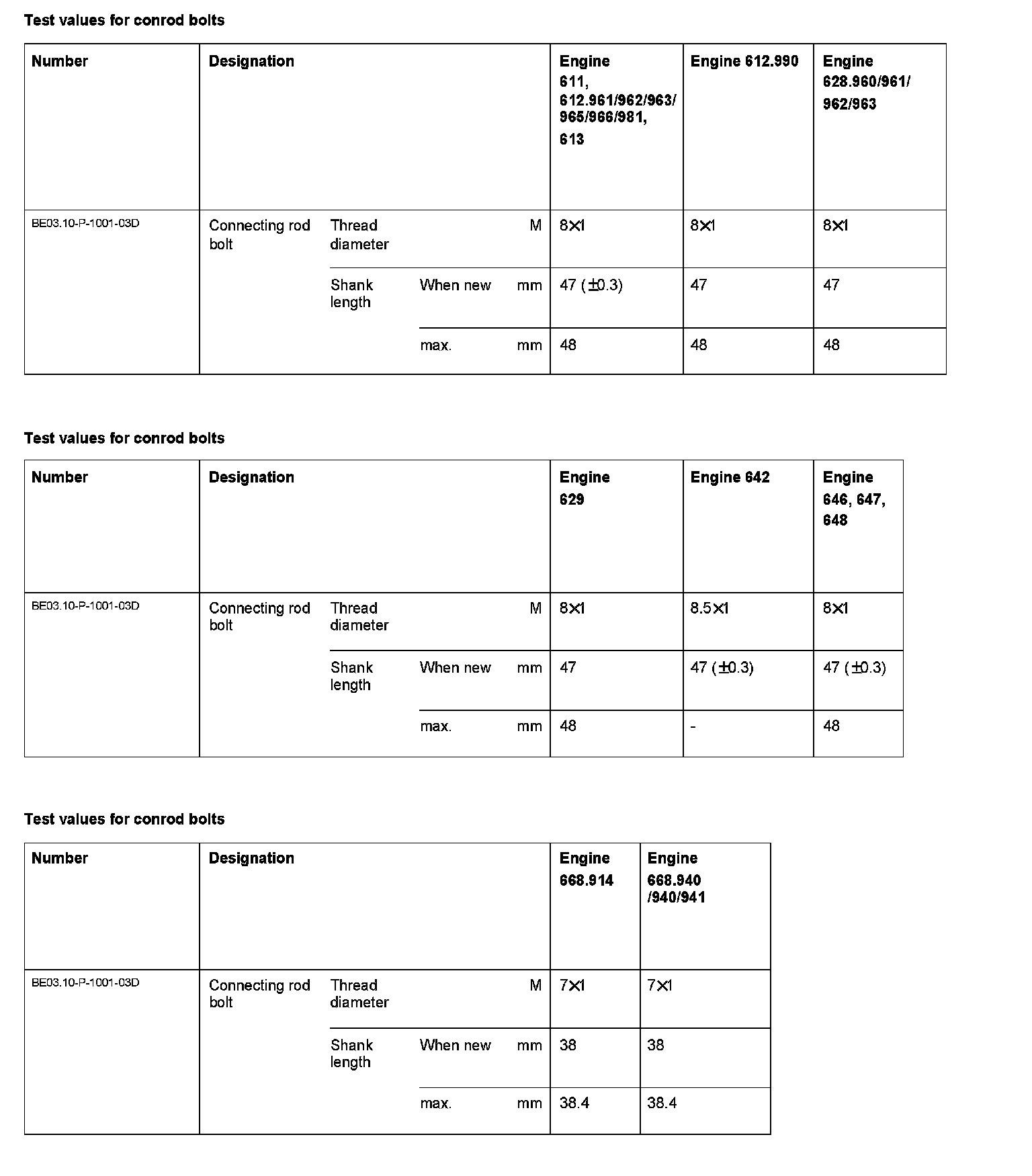

BE03.10-P-1000-03D Test Values For Conrod Bolts



BE03.10-P-1000-03D Test Values For Conrod Bolts
ENGINE 611, 612, 613, 628, 629, 642, 646, 647, 648, 668
