AR91.60-P-0820GZ Remove/Install Dust Excluder At WSS Sensor



AR91.60-P-0820GZ Remove/Install Dust Excluder At WSS Sensor
- Passenger-side only

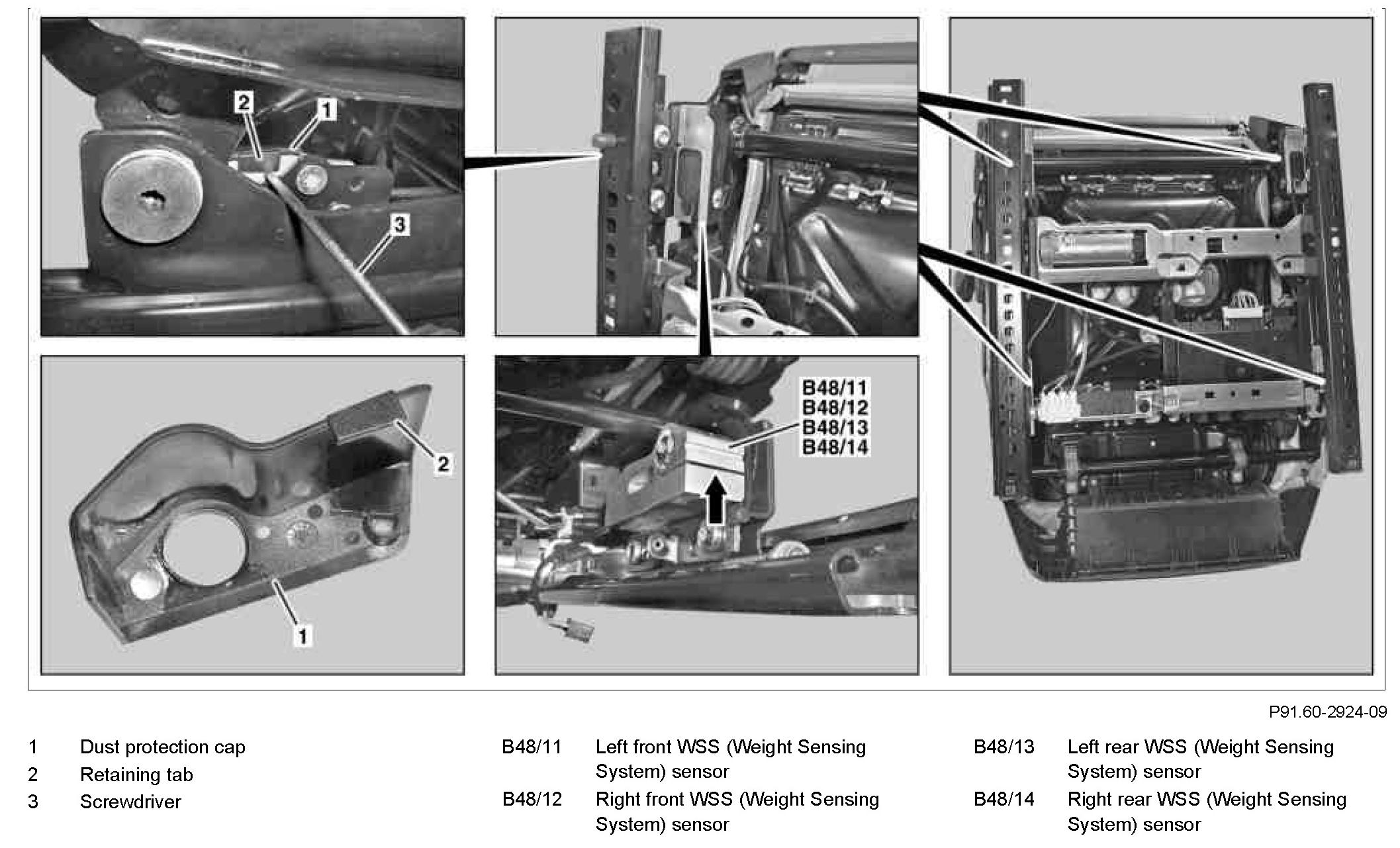

Component Identification:

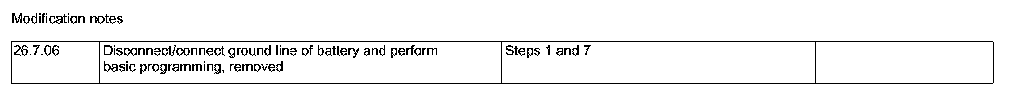

Modification Notes:

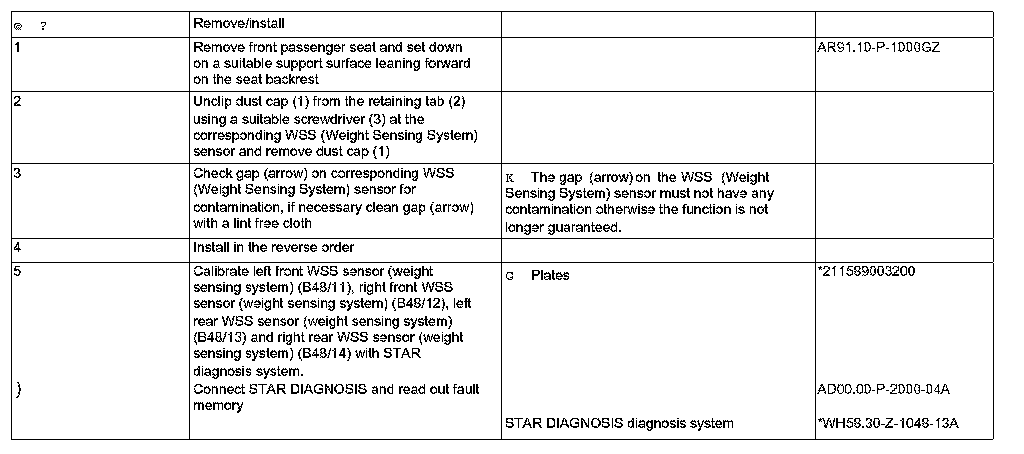

Steps 1 - 5:




Special Tools:

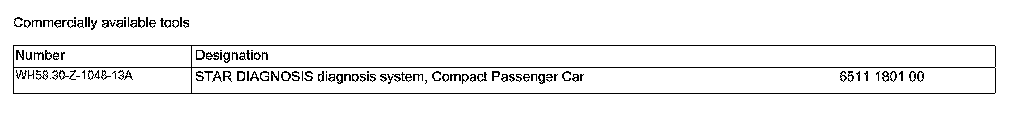

Commercially Available Tools:
