Seat Occupant Sensor
>>
Service and Repair
>>
AR91.60-P-0810GZ Remove/Install WSS Sensor
AR91.60-P-0810GZ Remove/Install WSS Sensor
AR91.60-P-0810GZ Remove/Install WSS Sensor
- Only front seat on passenger side
- Left front WSS sensor and right front WSS sensor

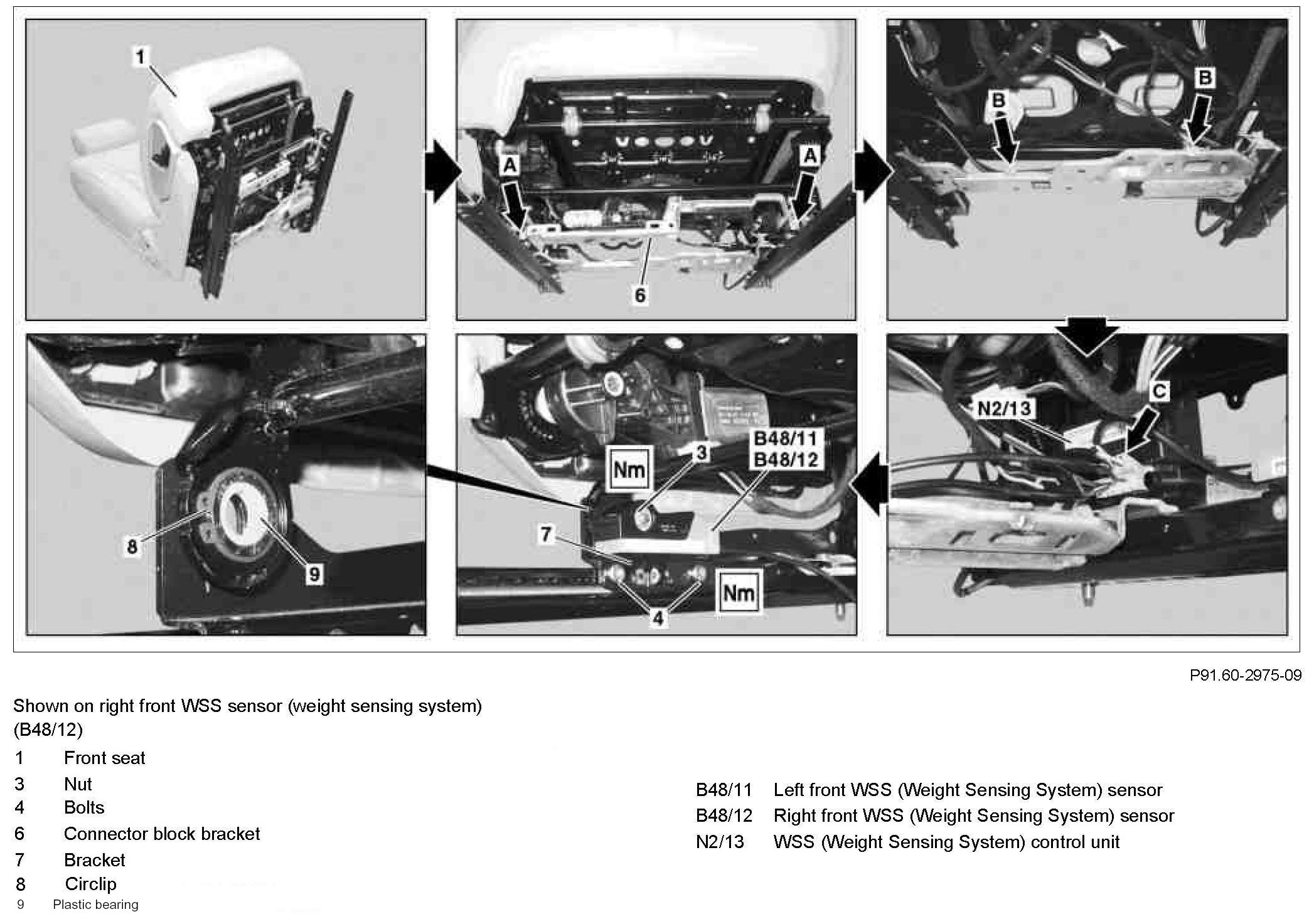

Component Identification:
Component Identification:

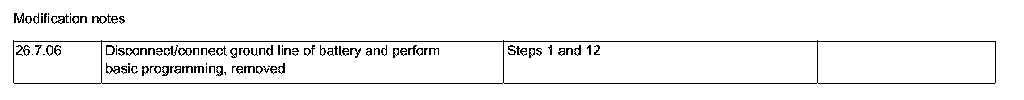

Modification Notes:

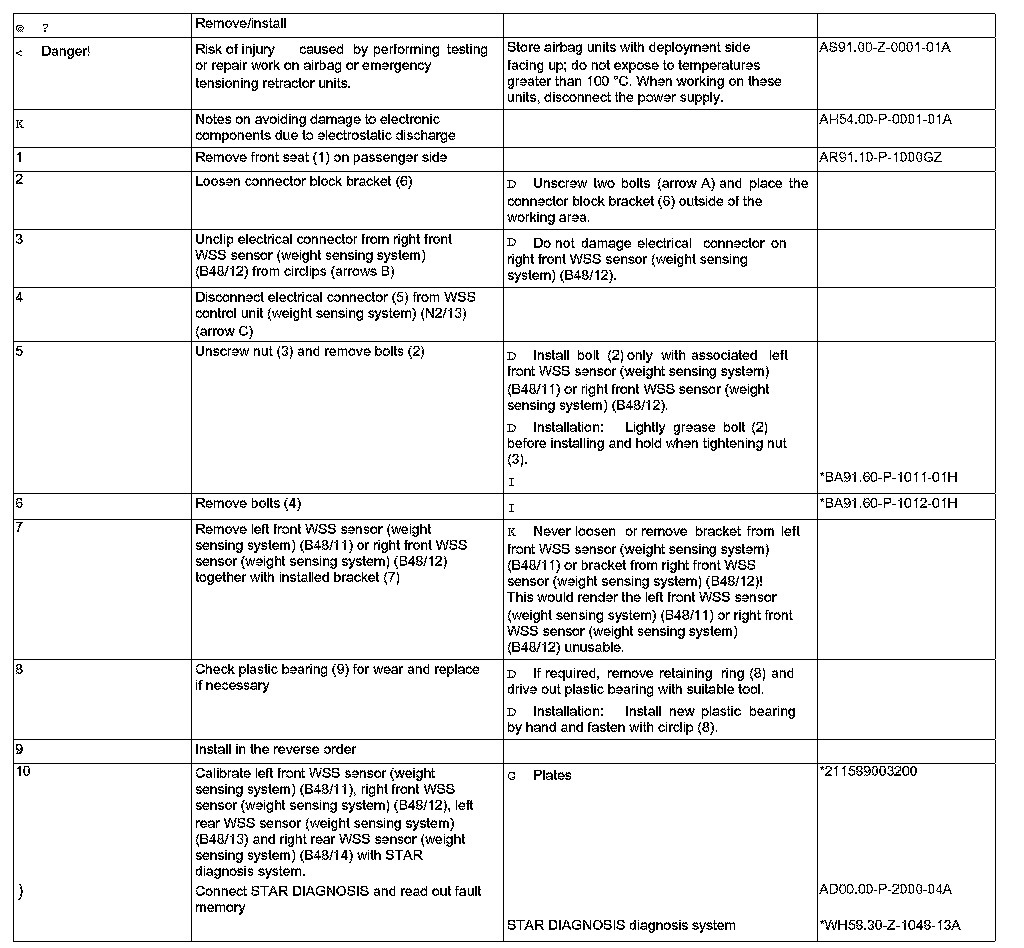

Steps 1 - 10:

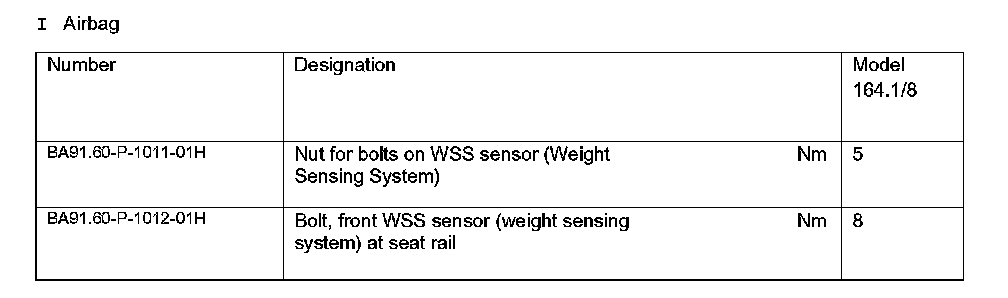

Airbag:
Special Tools:

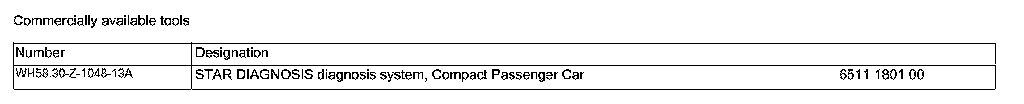

Commercially Available Tools:
