AR82.10-P-0004GZ Remove/Install Front Axle Level Sensors



AR82.10-P-0004GZ Remove/Install Front Axle Level Sensors

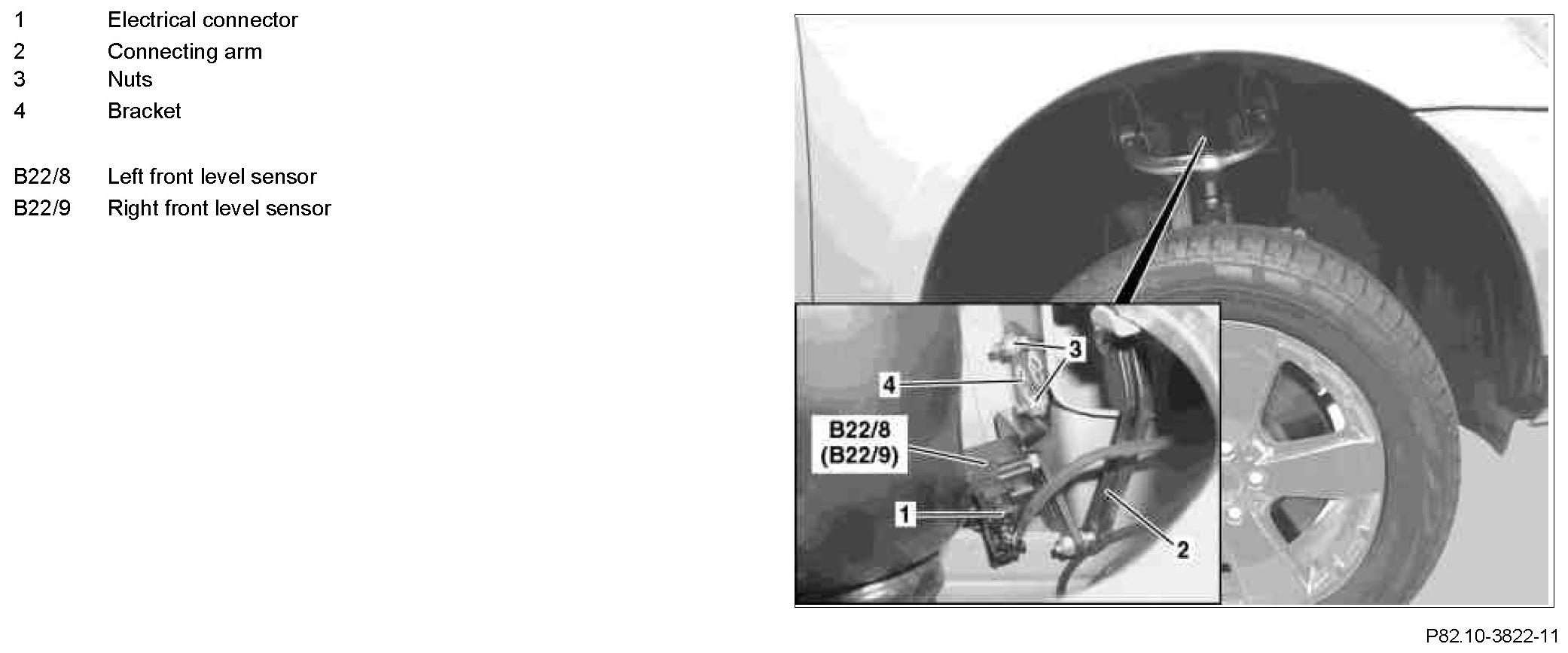

Component Identification:

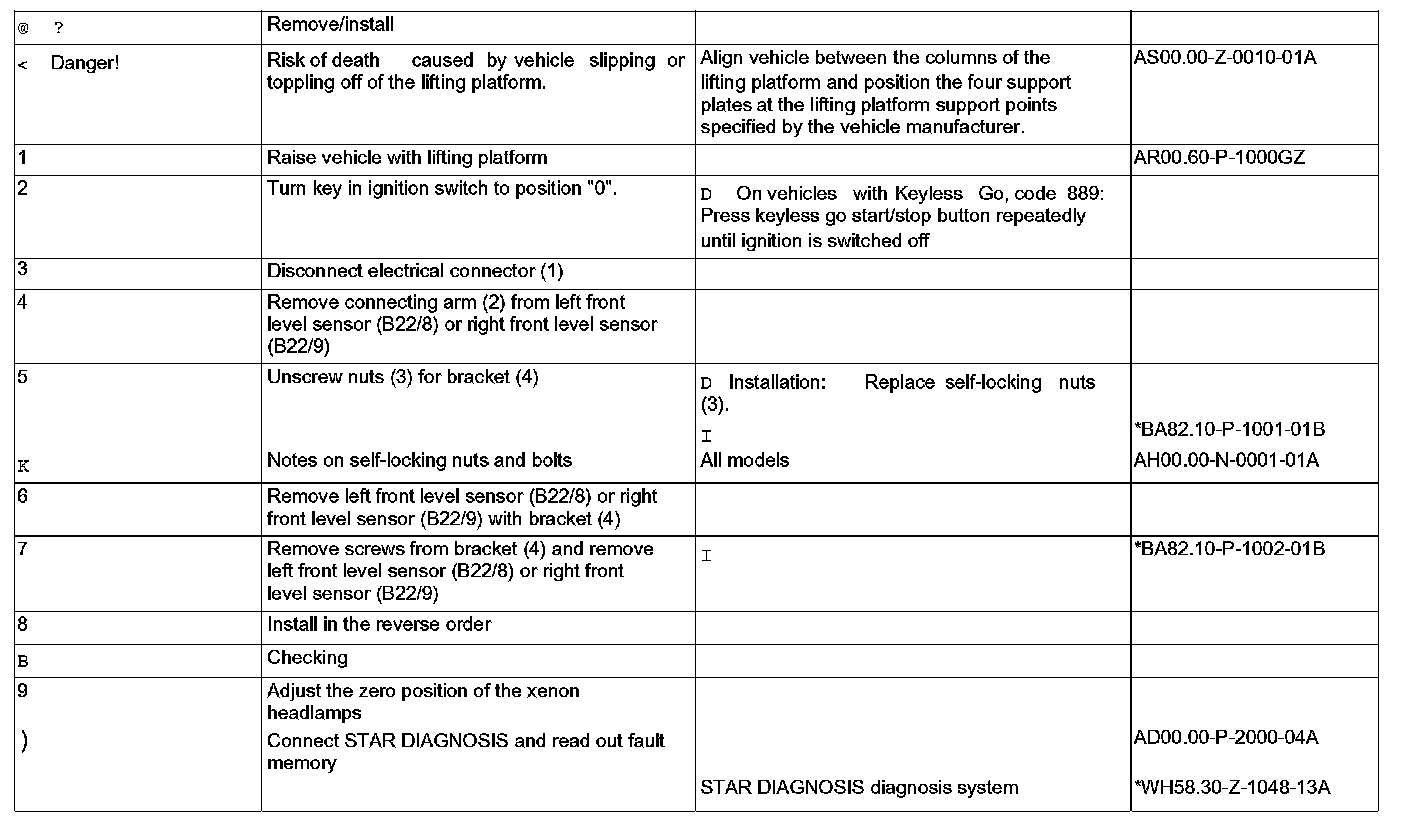

Steps 1 - 9:

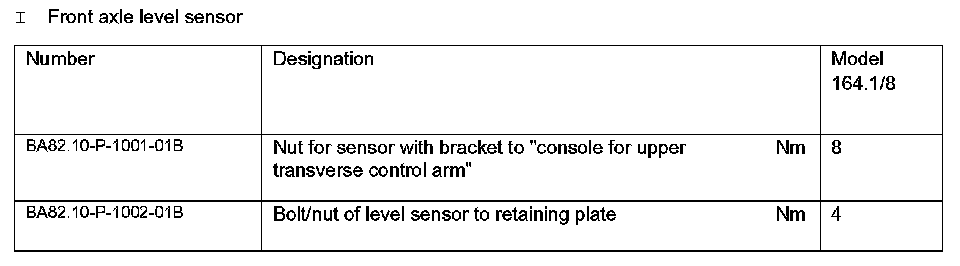

Front Axle Level Sensor:

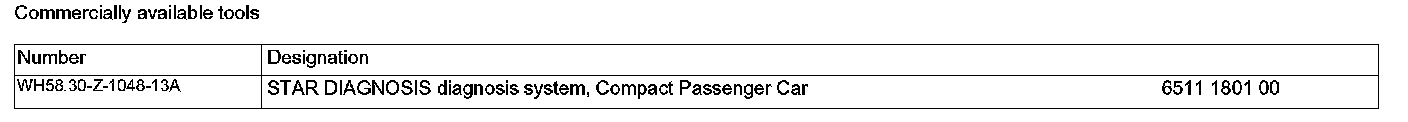

Commercially Available Tools:
