Humidity Sensor: Service and Repair
AR83.40-P-6740GZ Remove/Install Air
Humidity Sensor
- with CODE (581) Comfort automatic air conditioning

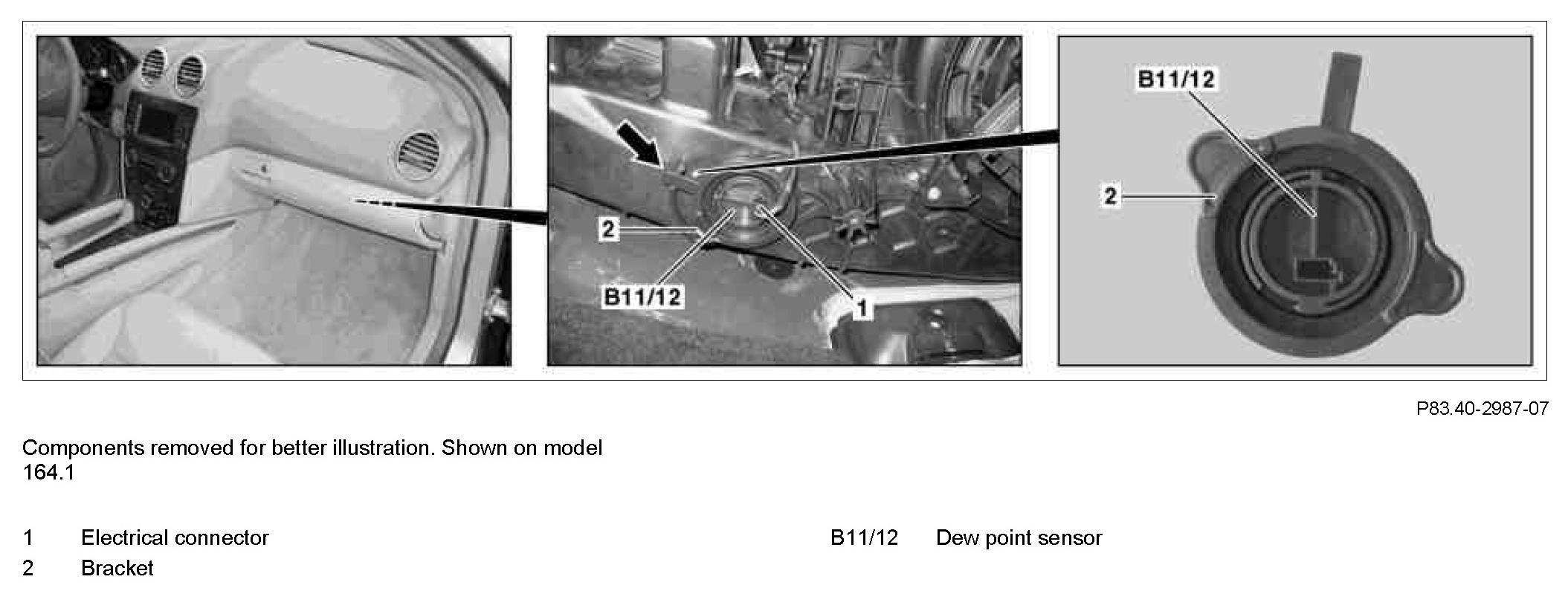

Component Identification:

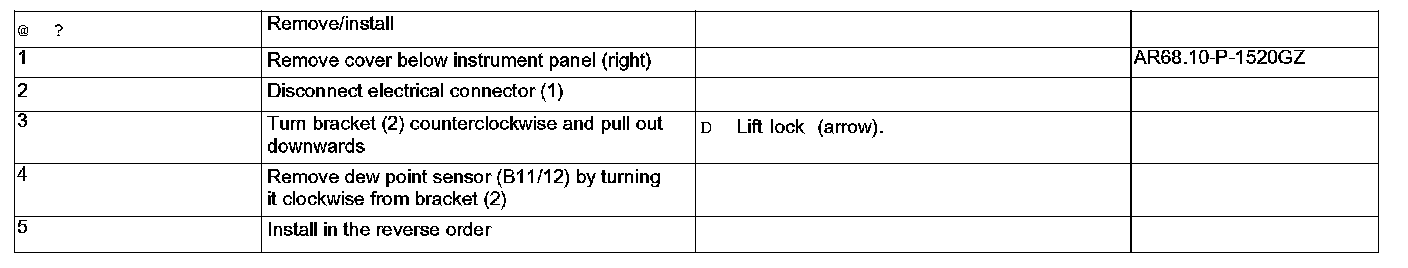

Steps 1 - 5:
