Evaporator Temperature Sensor / Switch: Service and Repair
AR83.30-P-8085GZ Remove/Install Evaporator Temperature Sensor

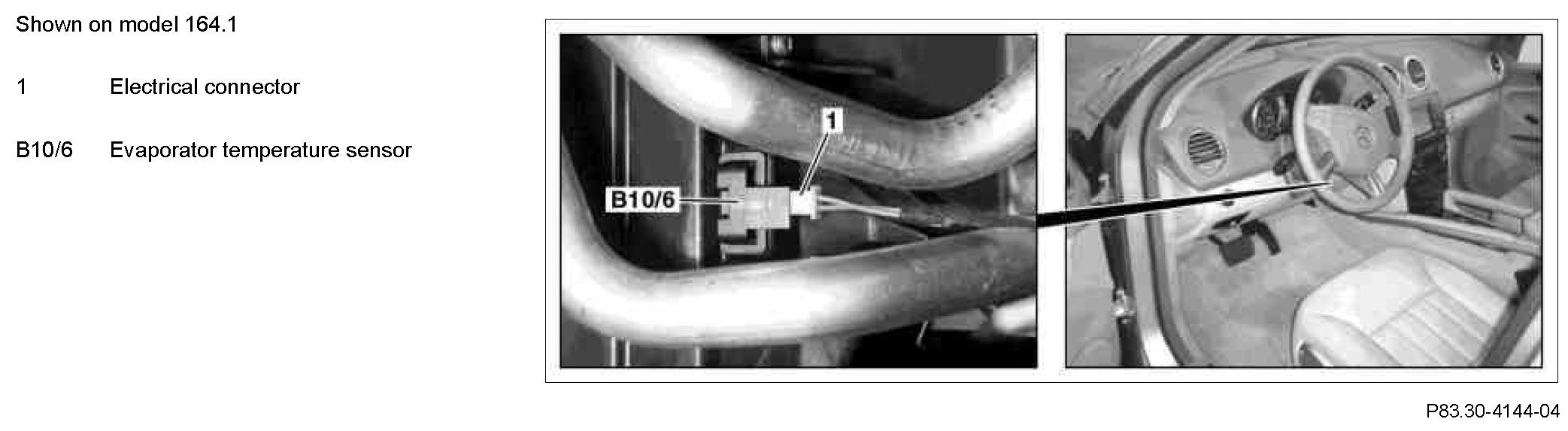

Component Identification:

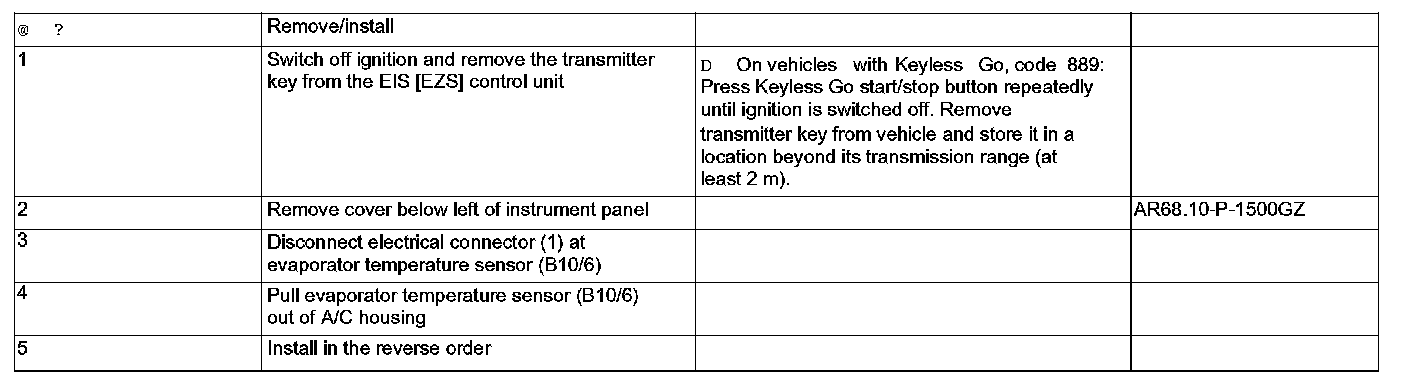

Steps 1 - 5:
