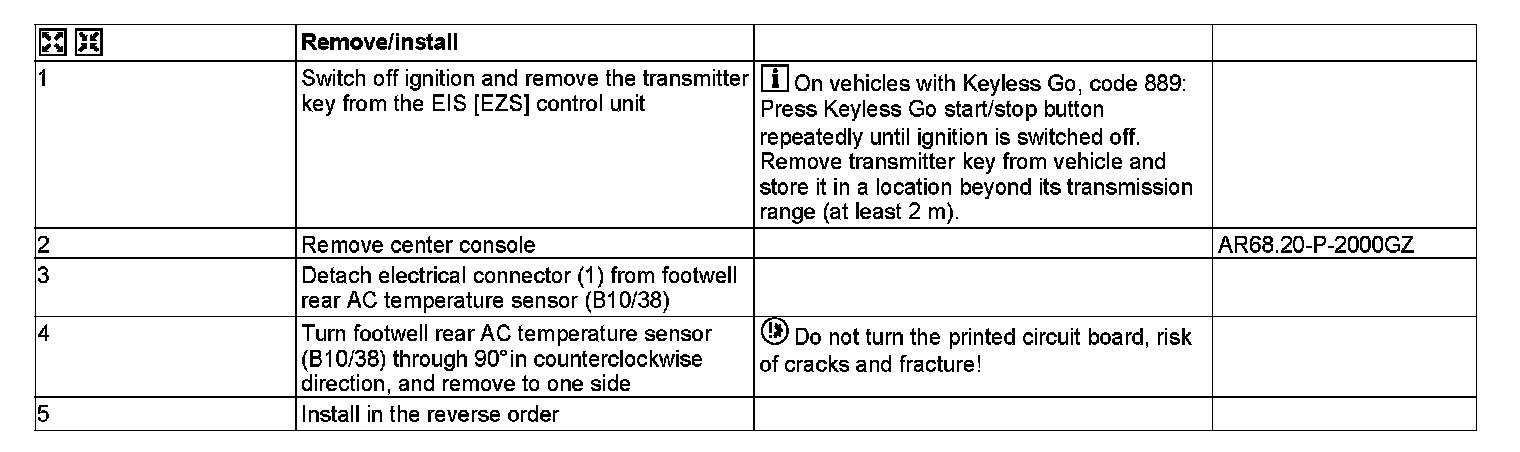

AR83.30-P-8087GZB Remove/Install Air Outlet Temperature Sensor




AR83.30-P-8087GZB Remove/Install Air Outlet Temperature Sensor
MODEL 164
Rear footwell

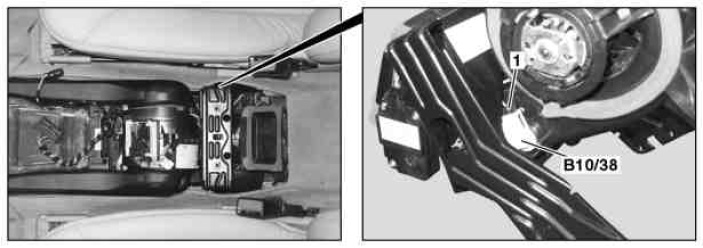

Blower motor removed for ease of illustration. Shown on model 164.1
1 Electrical connector
B10/38 Footwell rear AC temperature sensor
