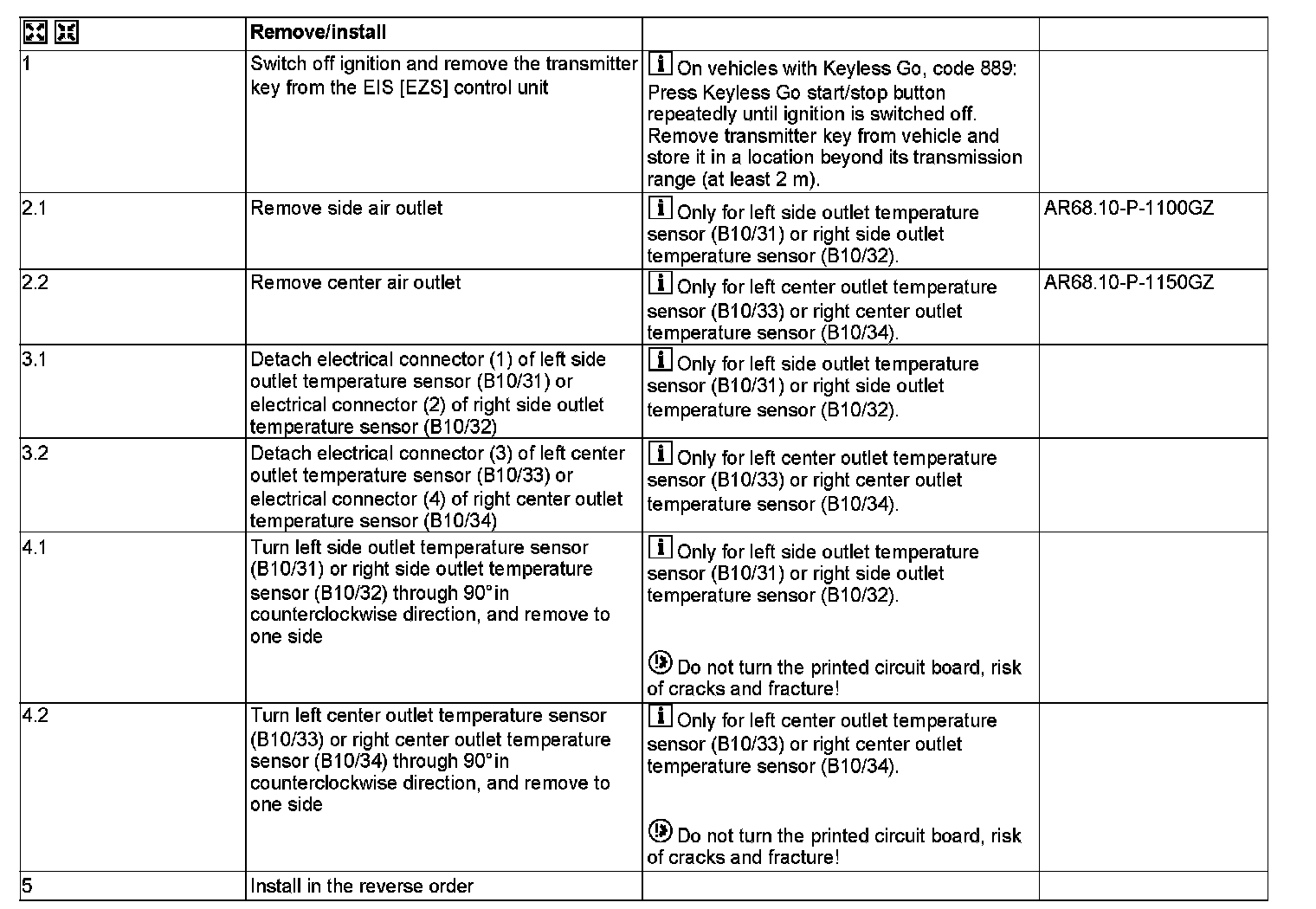

AR83.30-P-8087GZ Remove/Install Air Outlet Temperature Sensor

AR83.30-P-8087GZ Remove/Install Air Outlet Temperature Sensor
MODEL 164

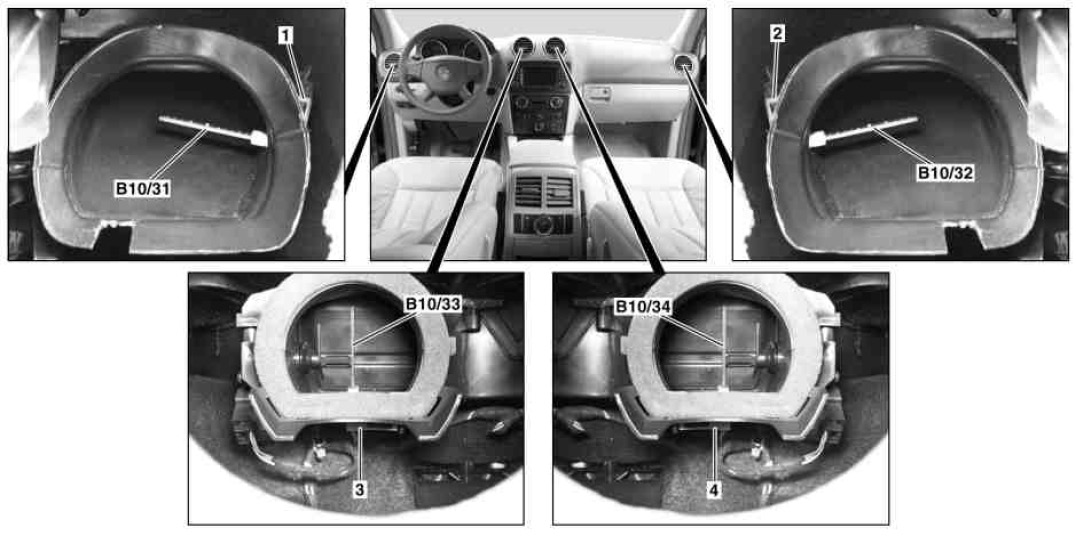

Side air outlets and center outlet





Shown on model 164.1
1 Electrical connector
2 Electrical connector
3 Electrical connector
4 Electrical connector
B10/31 Left side outlet temperature sensor
B10/32 Right side outlet temperature sensor
B10/33 Left center outlet temperature sensor
B10/34 Right center outlet temperature sensor
