Vacuum Brake Booster Diaphragm Position Sensor: Locations
BAS Diaphragm Travel Sensor

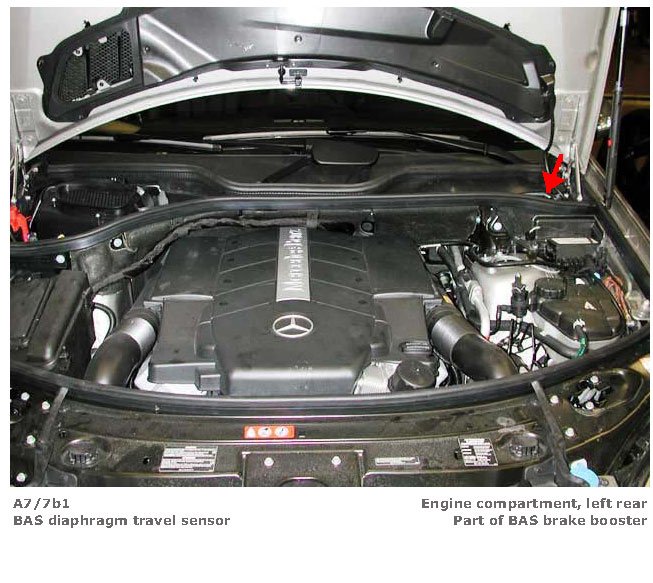

BAS Diaphragm Travel Sensor (View 1):

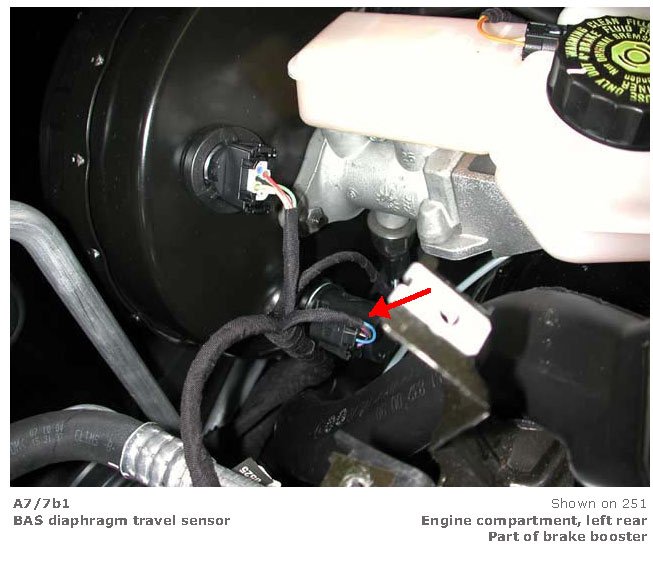

BAS Diaphragm Travel Sensor (View 2):
