Connector Locations



Wheel Speed Sensor Connector

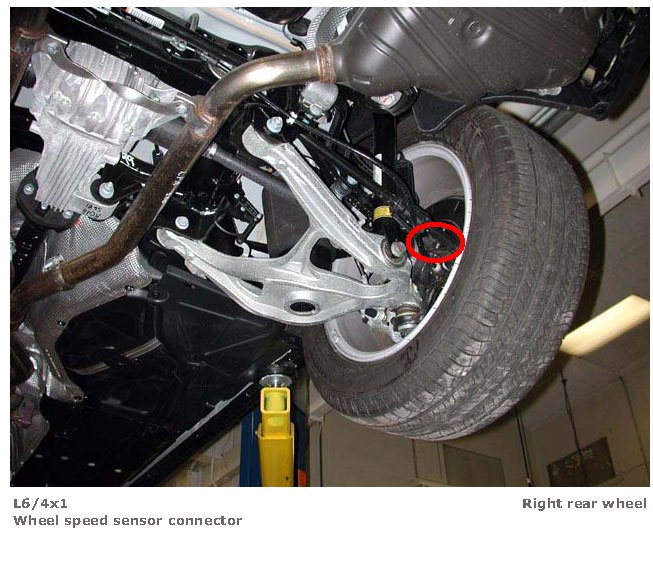

Wheel Speed Sensor Connector (View 1):

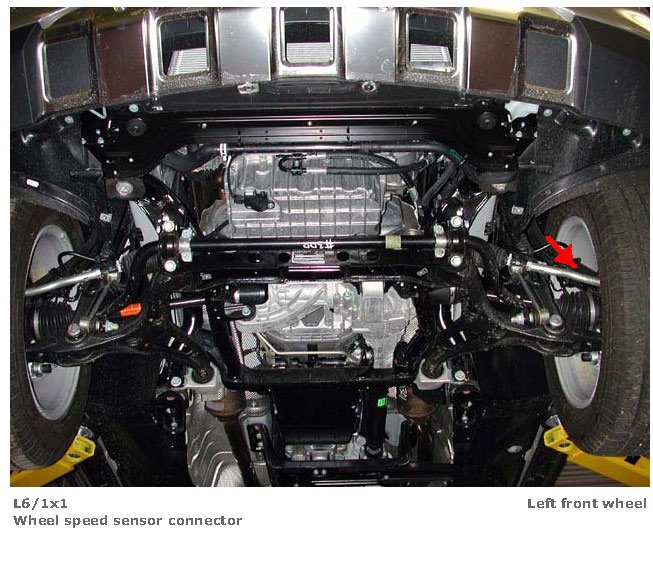

Wheel Speed Sensor Connector (View 2):

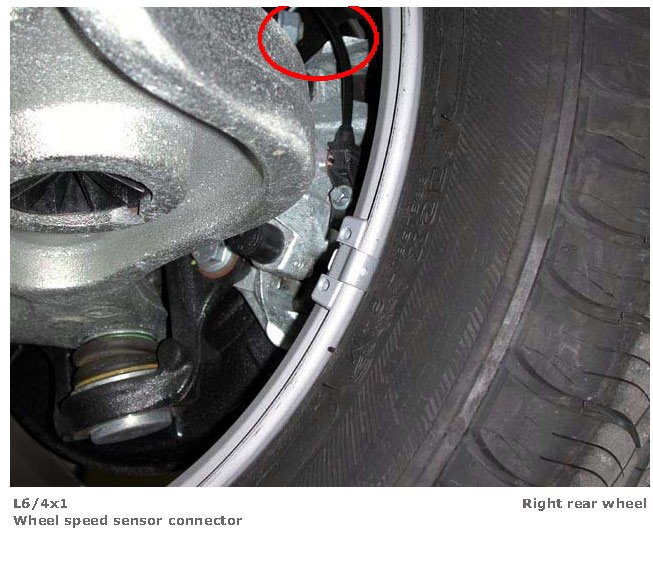

Wheel Speed Sensor Connector (View 1):

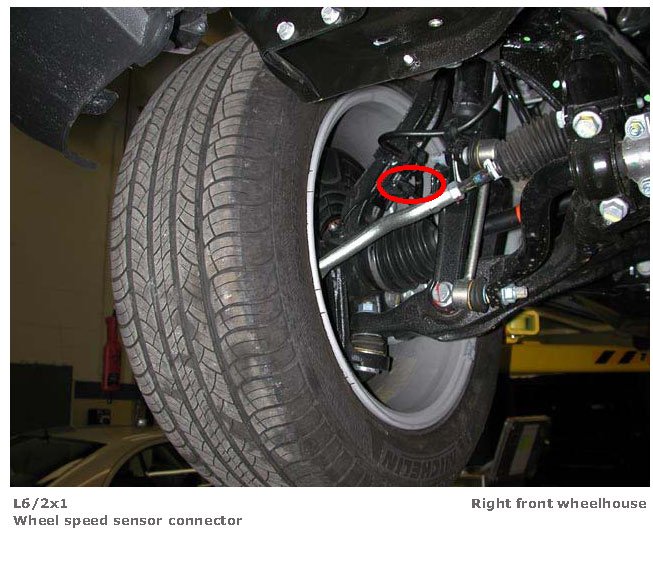

Wheel Speed Sensor Connector (View 2):

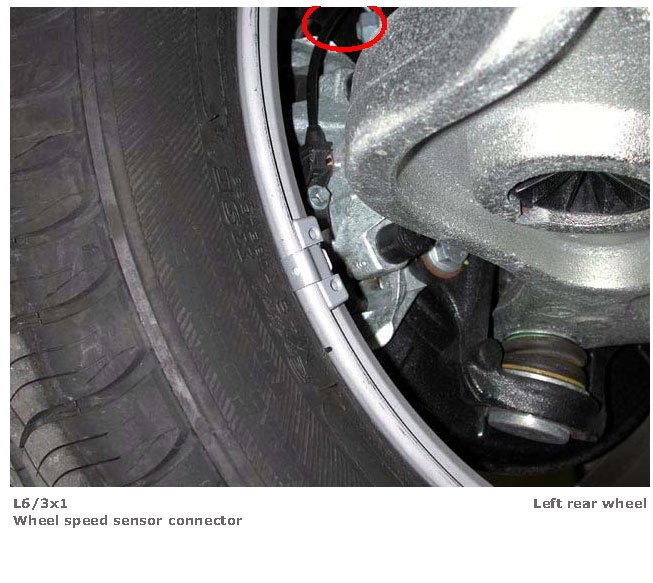

Wheel Speed Sensor Connector (View 1):

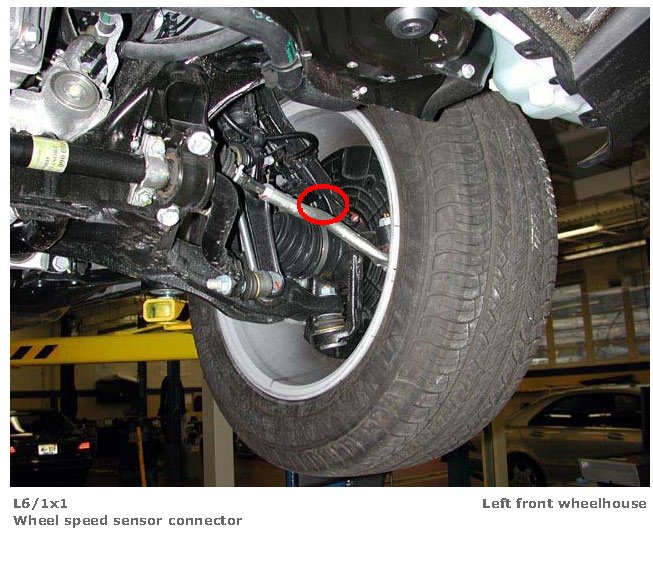

Wheel Speed Sensor Connector (View 2):

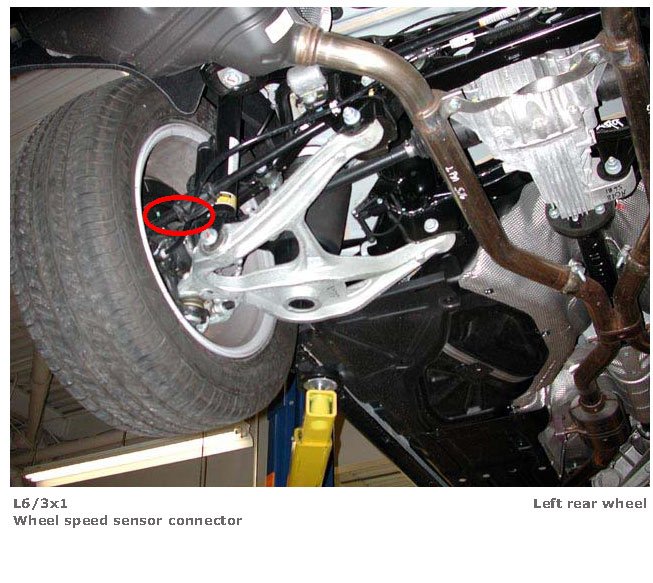

Wheel Speed Sensor Connector (View 1):




Wheel Speed Sensor Connector (View 2):
