Lateral Accelerometer: Service and Repair

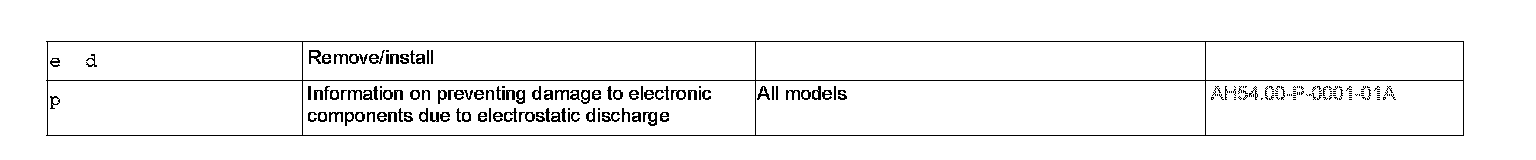

AR42.45-P-0841GZ Remove/install yaw rate and lateral acceleration sensor

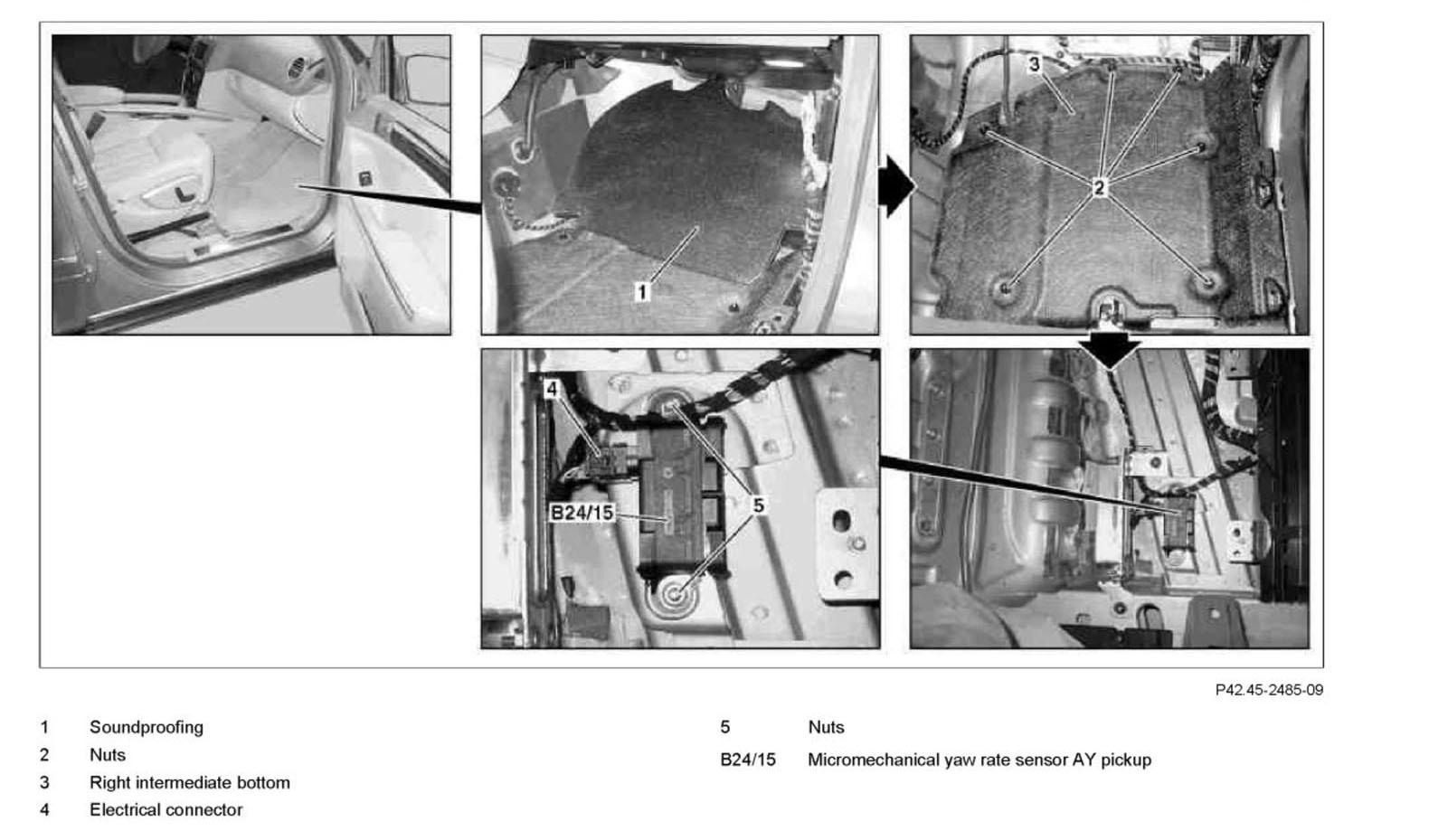

Component Identification:

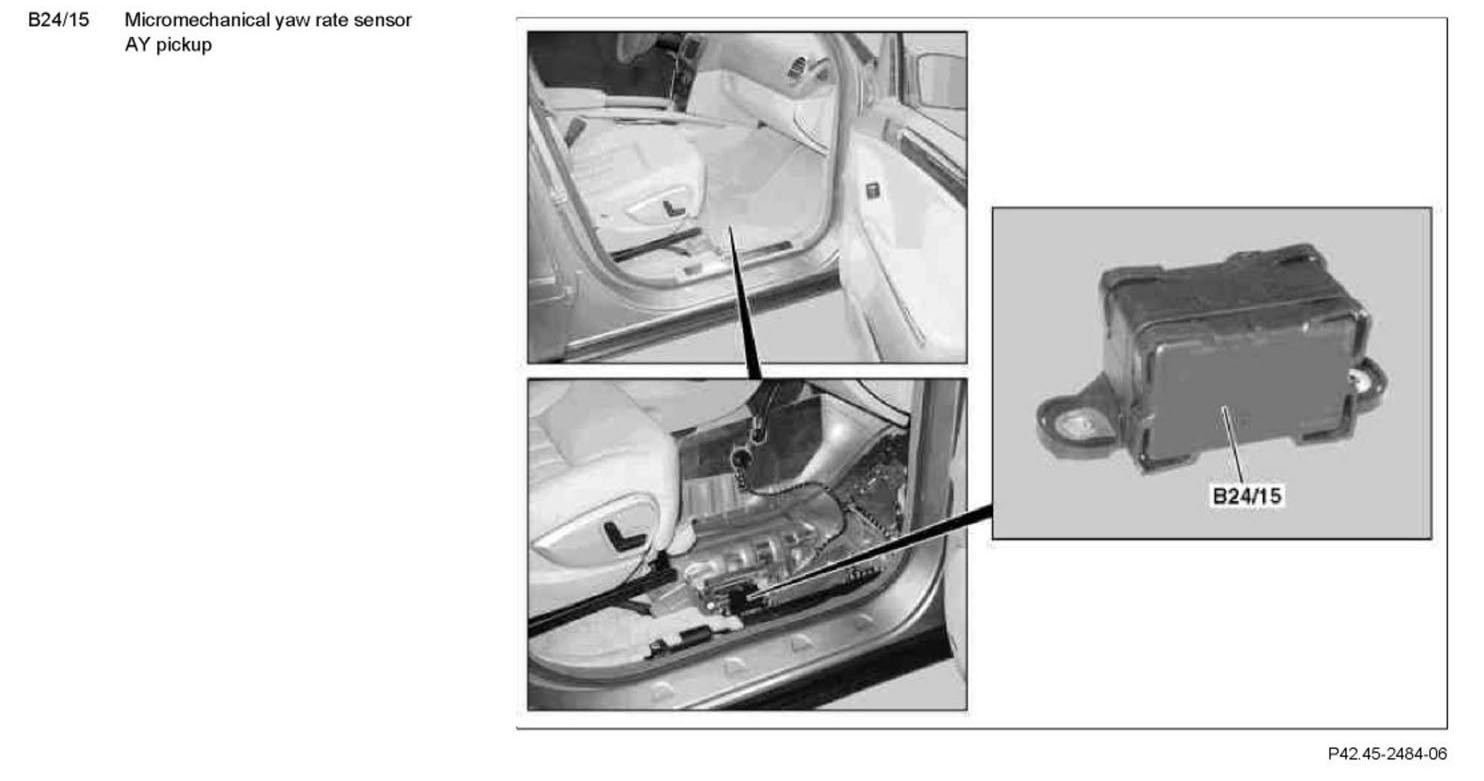

Component Identification:

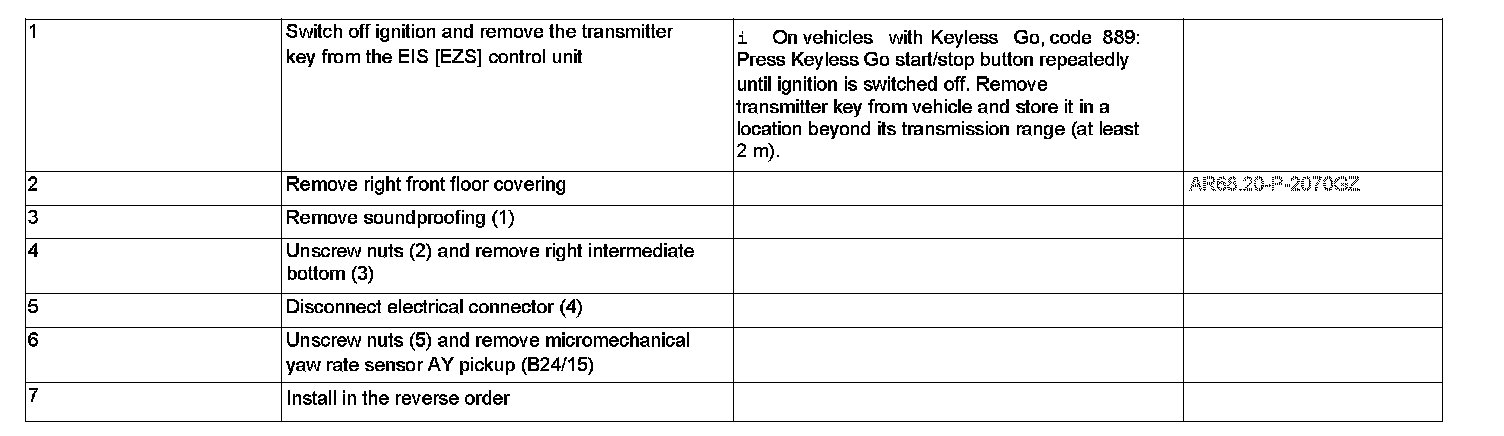

Steps 1 - 7:
