Distance Sensor: Service and Repair



AR30.30-P-1010GZ Remove/Install Distronic Sensor (DTR)
- with CODE (219) Distronic (DTR)

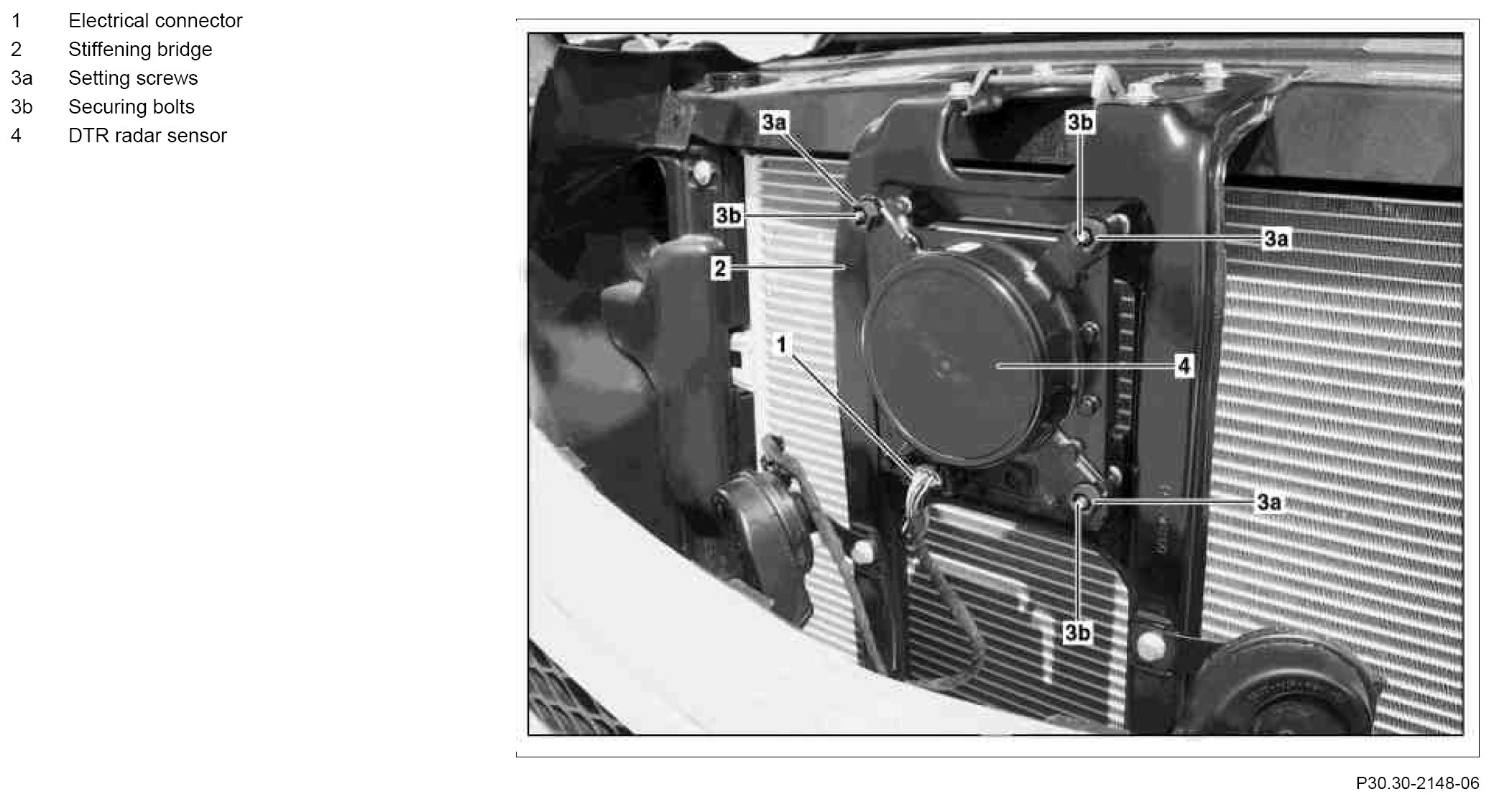

Component Identification:

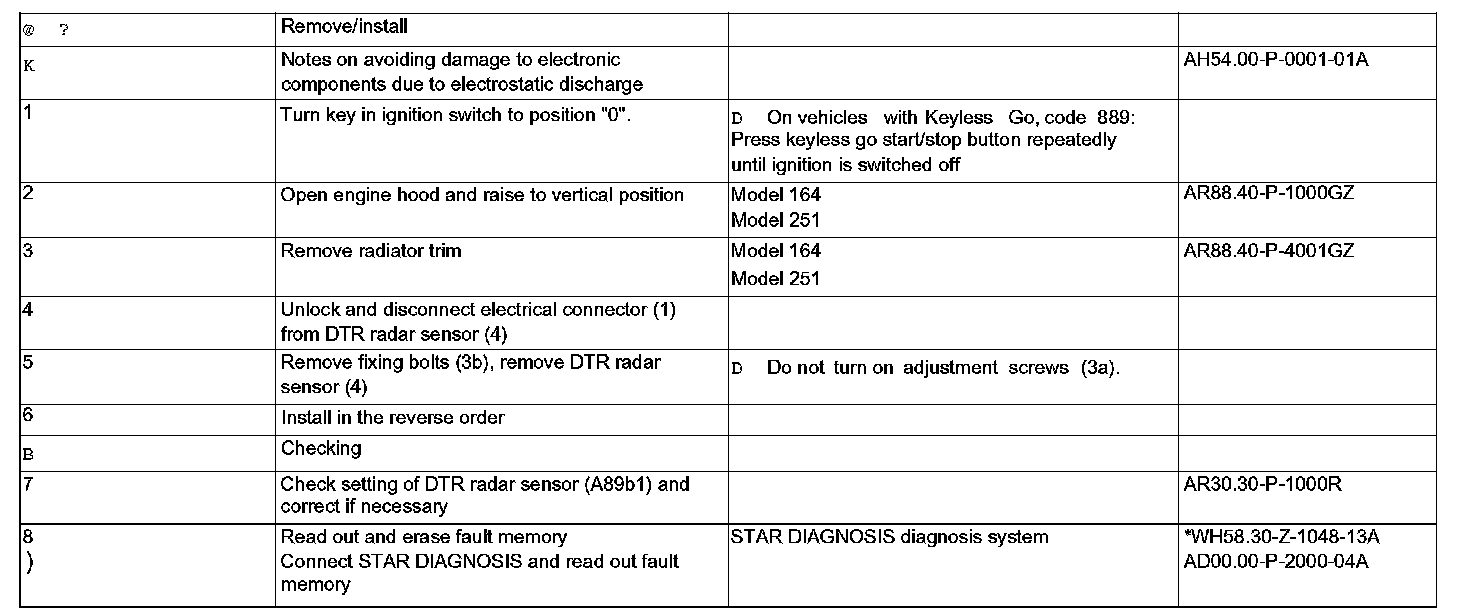

Steps 1 - 8:

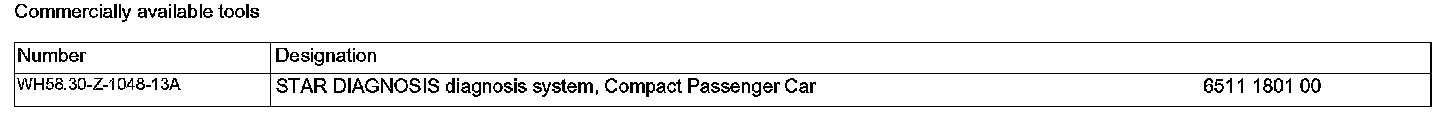

Commercially Available Tools:
