AR72.20-P-3602GZ Remove and Install Automatic Rear-End Door Position Sensor

AR72.20-P-3602GZ Remove and Install Automatic Rear-end Door Position Sensor
MODEL 164
- with CODE (890) Automatic liftgate

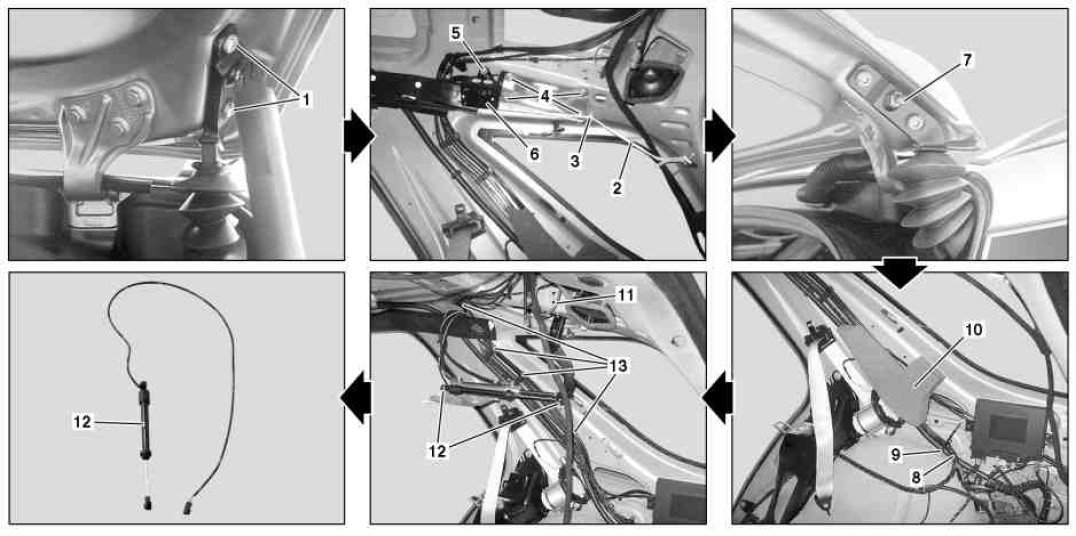

Shown on model 164.1

1 Bolts
2 Rescue line
3 Clip
4 Bolts
5 Screw
6 Bracket
7 Ball stud
8 Electrical connector
9 Cable tie
10 Foam rubber
11 Passage
12 Position sensor
13 Clips














110 589 03 59 00

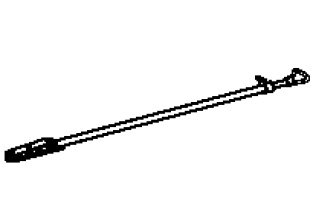

Mounting wedge





170 589 04 63 00
Support
