AR91.25-P-1435GZ Remove/Install Backrest Lumbar Support Switch



AR91.25-P-1435GZ Remove/Install Backrest Lumbar Support Switch
- as of model year 2009

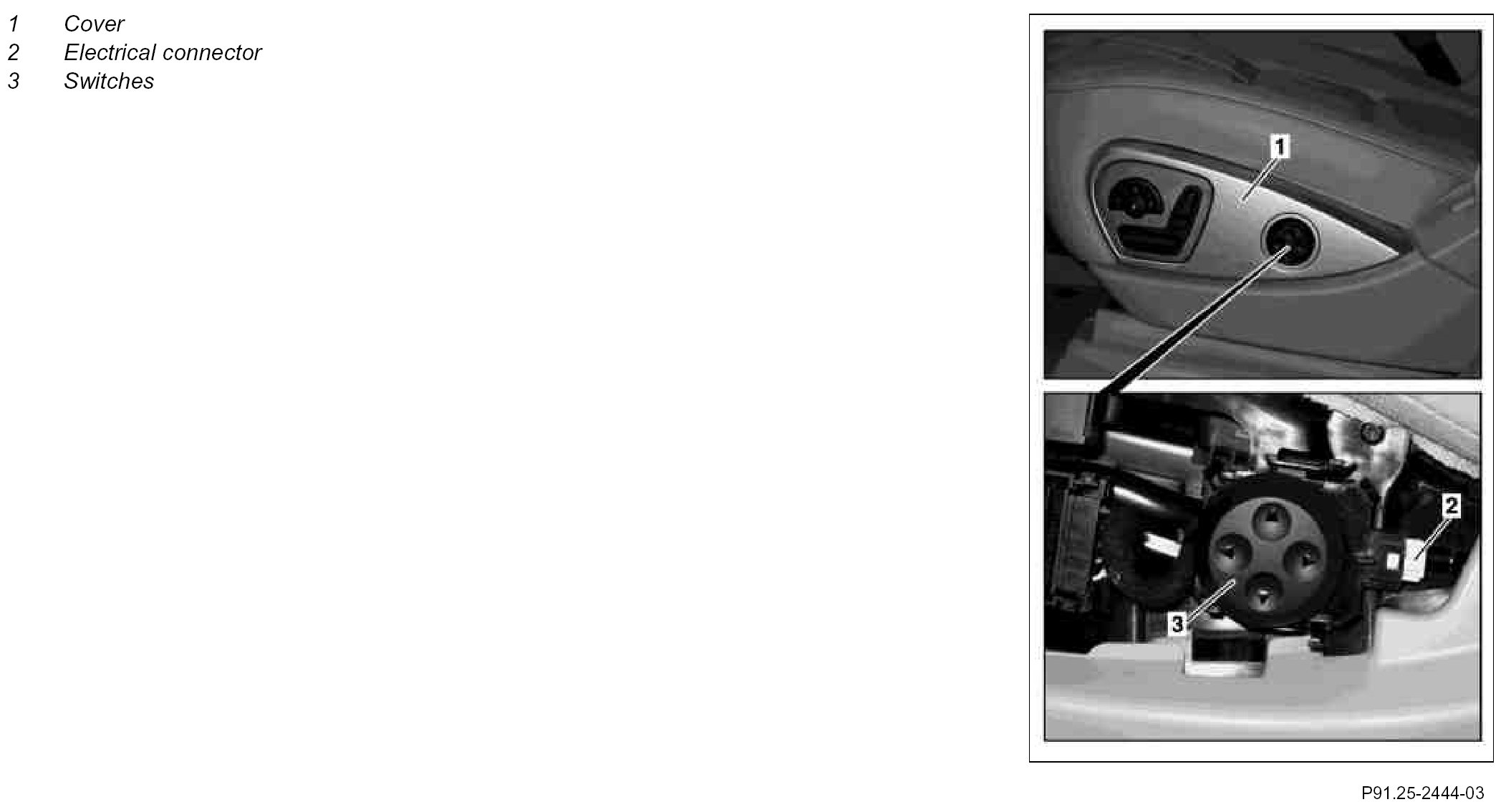

Component Identification:

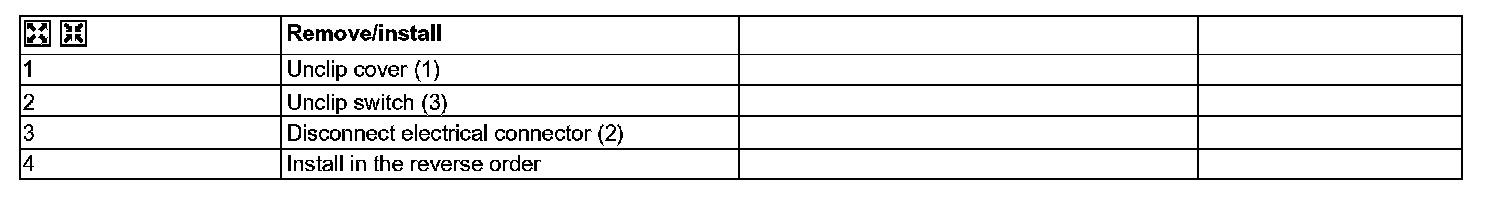

Steps 1 - 4:
