Mercedes Benz Truck
>>
2009
>>
ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Wiper and Washer Systems
>>
Wiper Relay
>>
Locations
>>
Wiper Relay, Rear
Wiper Relay, Rear
Wiper Relay, Rear

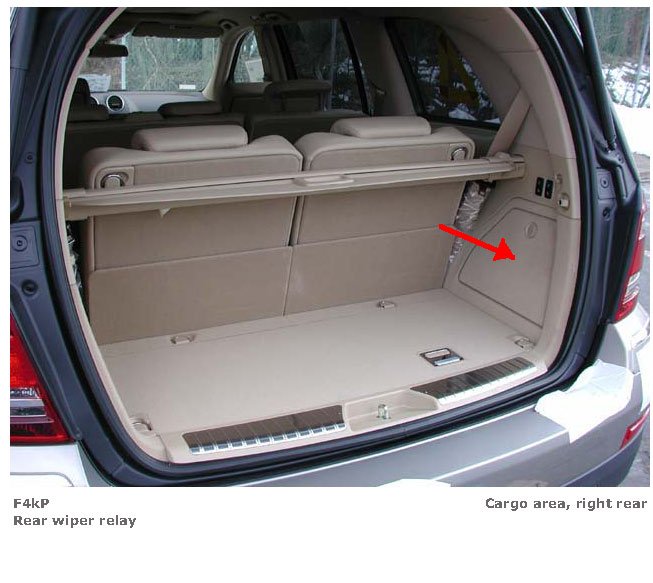

Rear Wiper Relay (View 1):

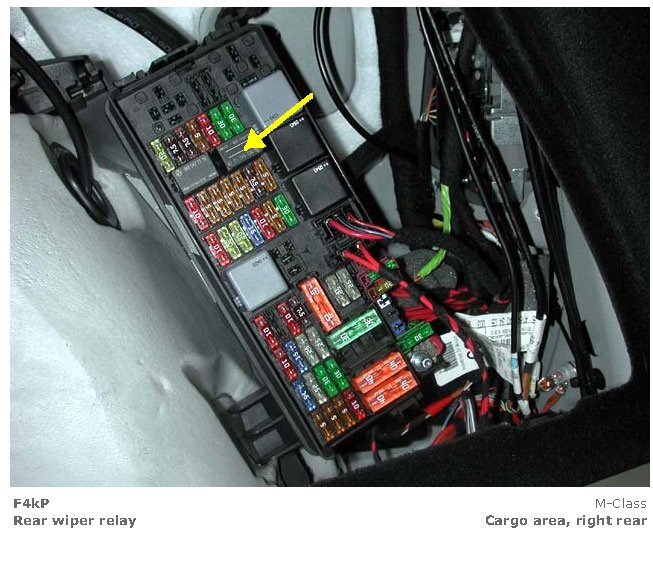

Rear Wiper Relay (View 2):

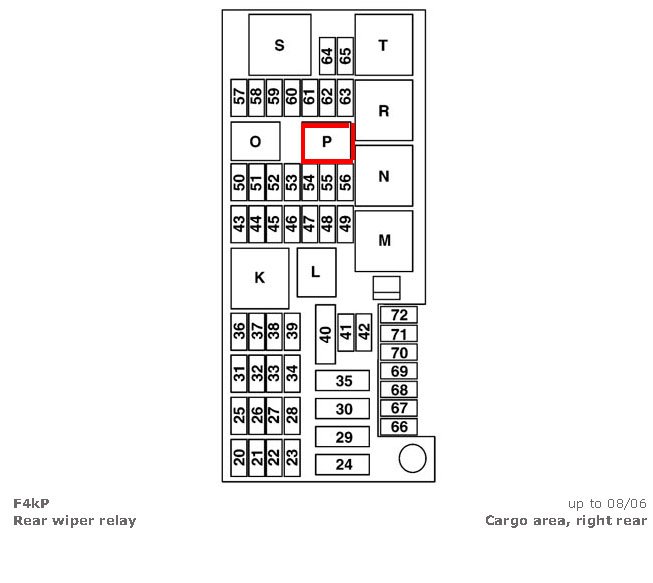

Rear Wiper Relay (View 3):

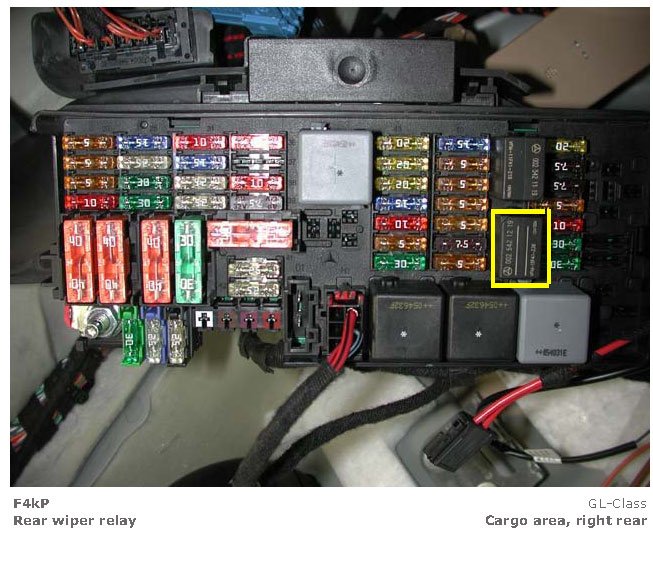

Rear Wiper Relay (View 4):
Rear Wiper Relay (View 5):
