Electrical Diagrams

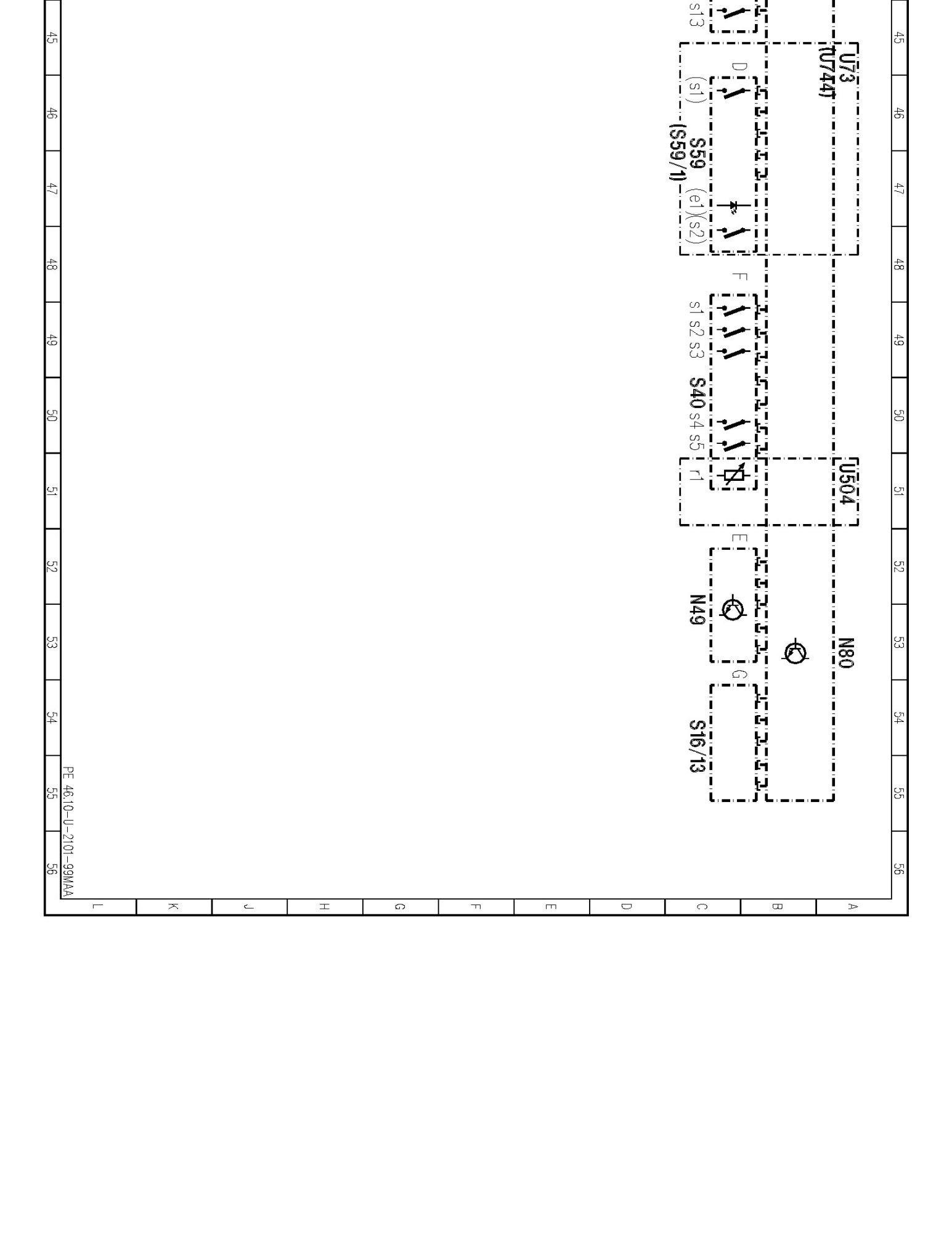

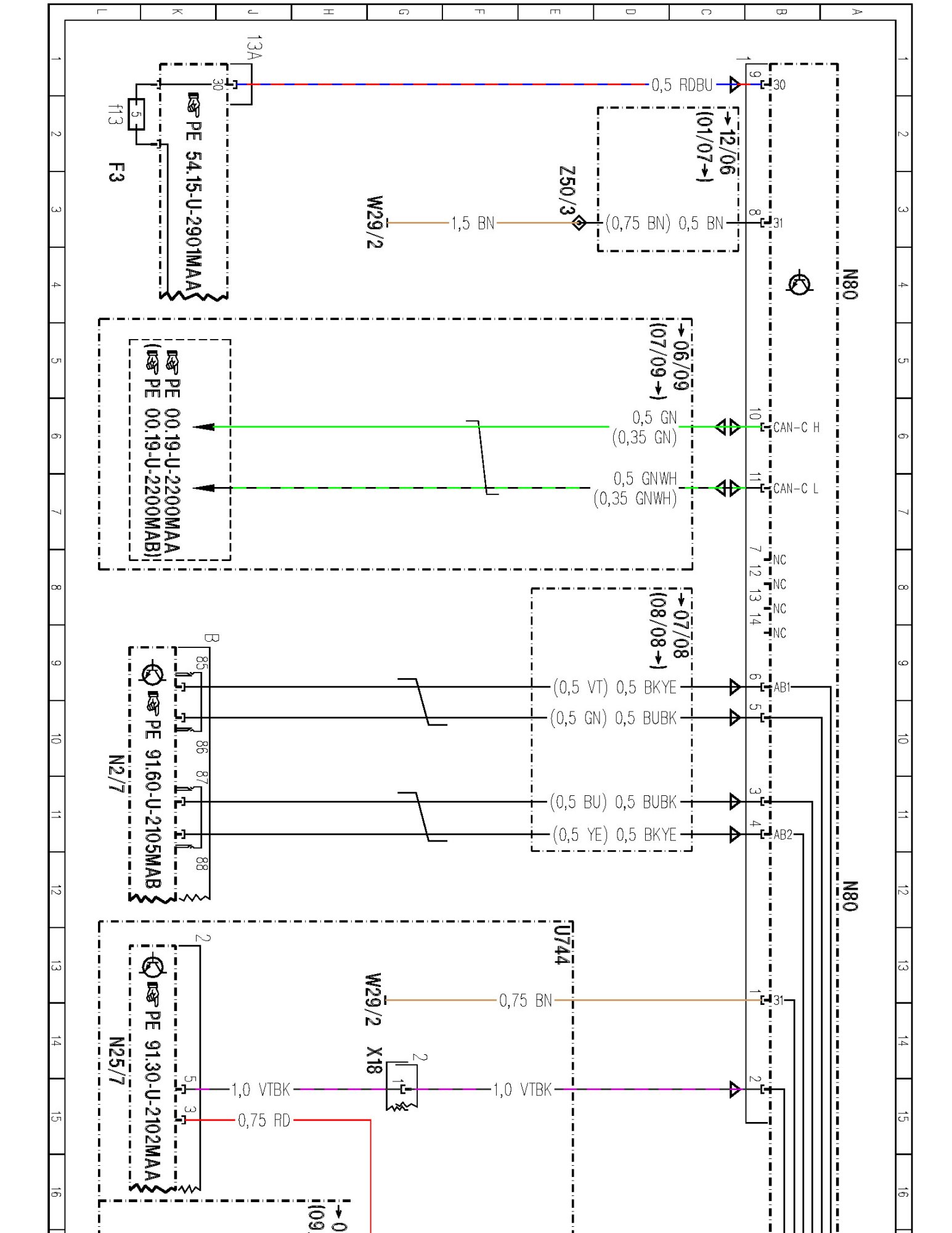

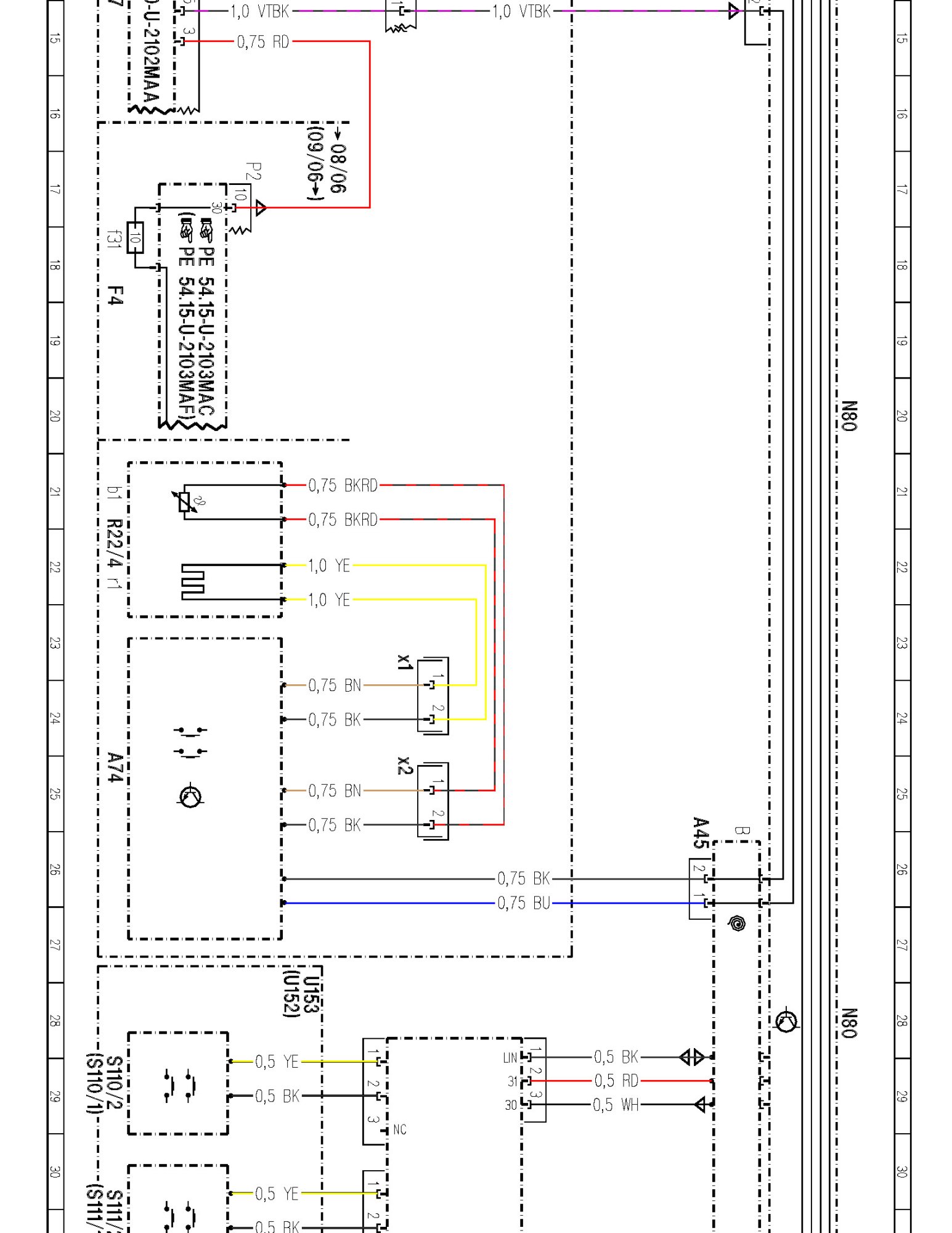

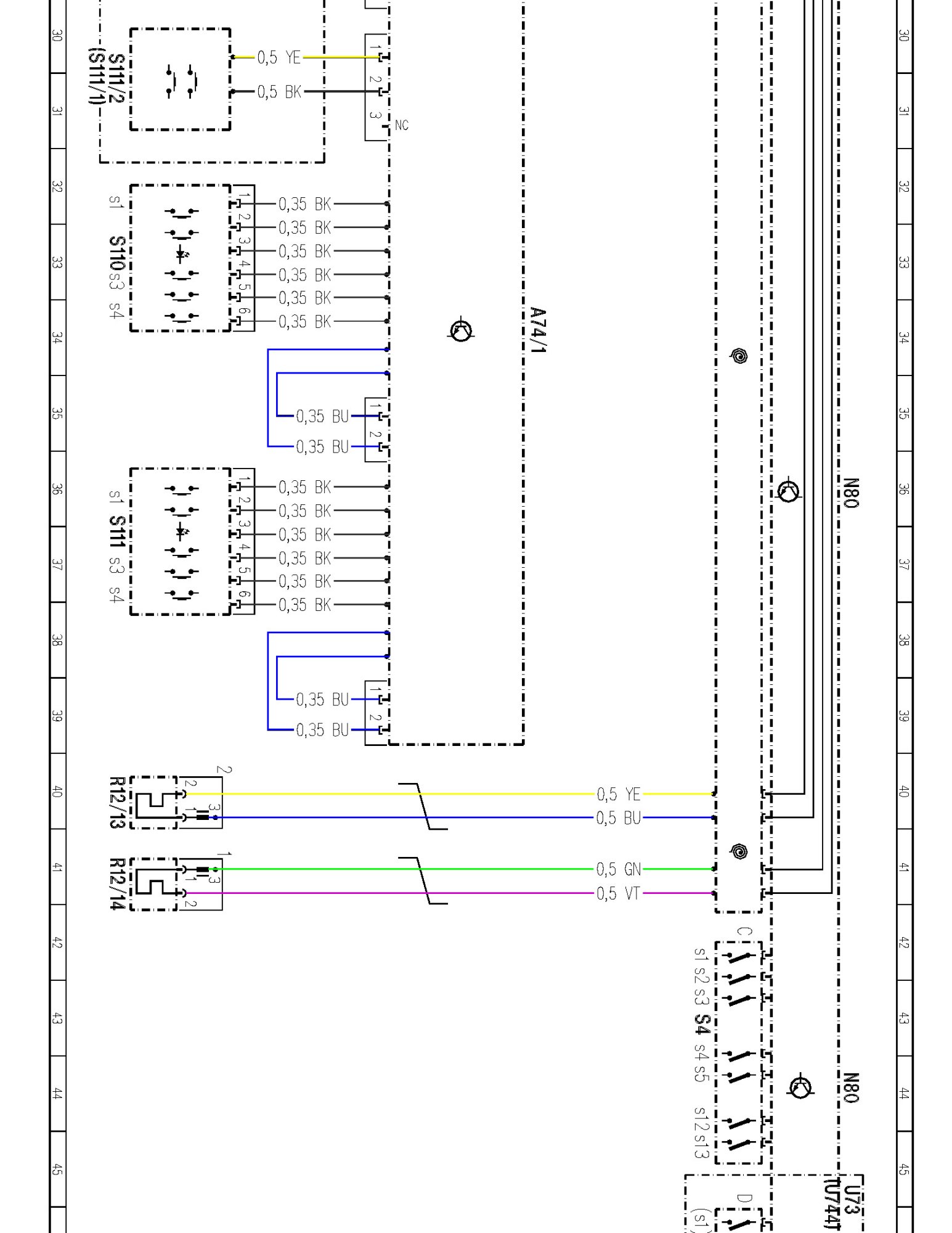

PE46.10-U-2101MAA Steering Column Module Control Module
- control unit N80



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
