Home >> Mercedes Benz Truck >> 2009 >> ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Navigation Module >> Service and Repair

Navigation Module: Service and Repair

AR82.85-P-7373GZ Remove/Install Navigation Processor
- 164.### #A up to 441247

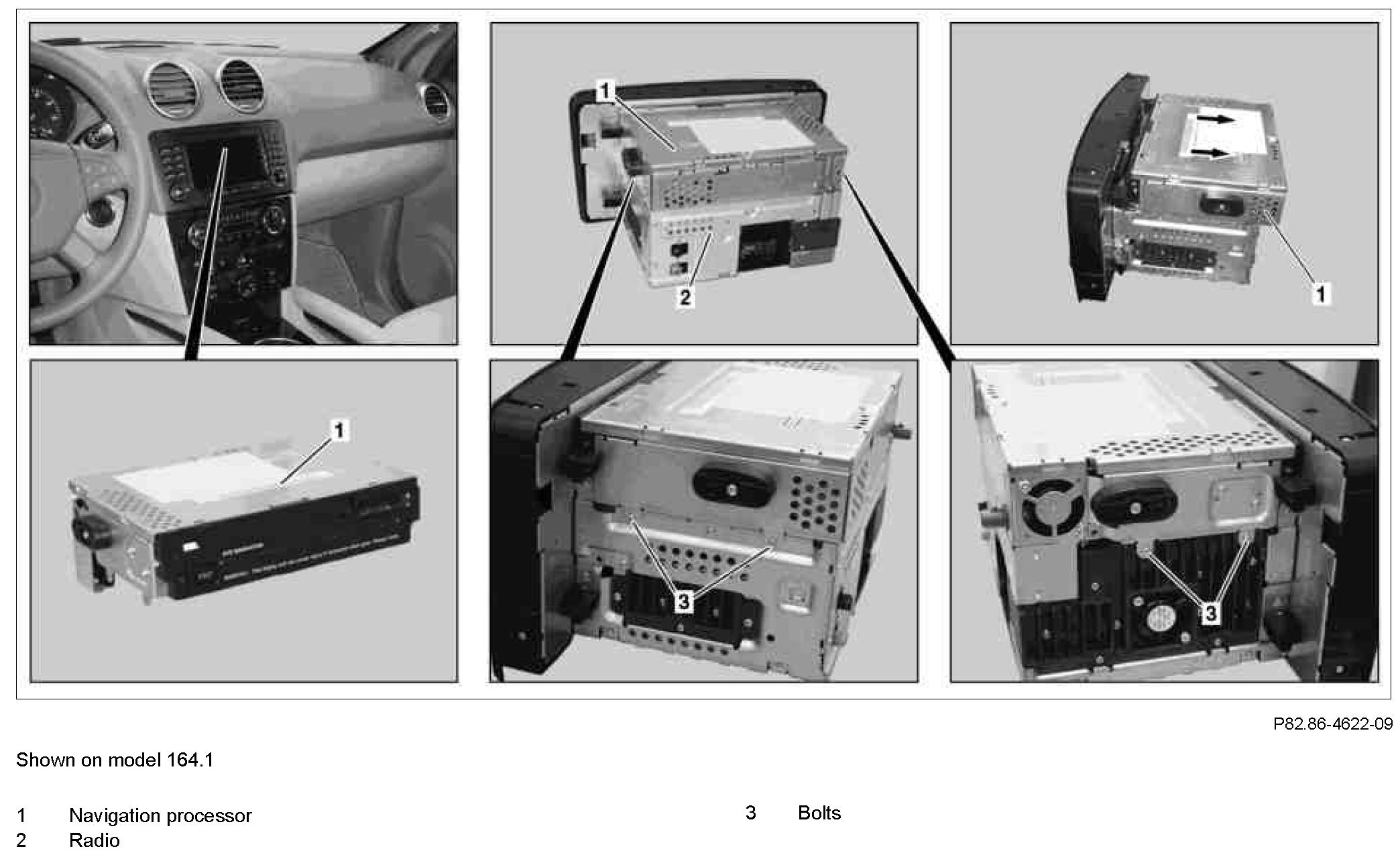

Component Identification:

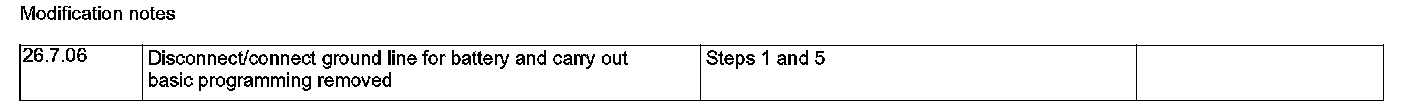

Modification Notes:

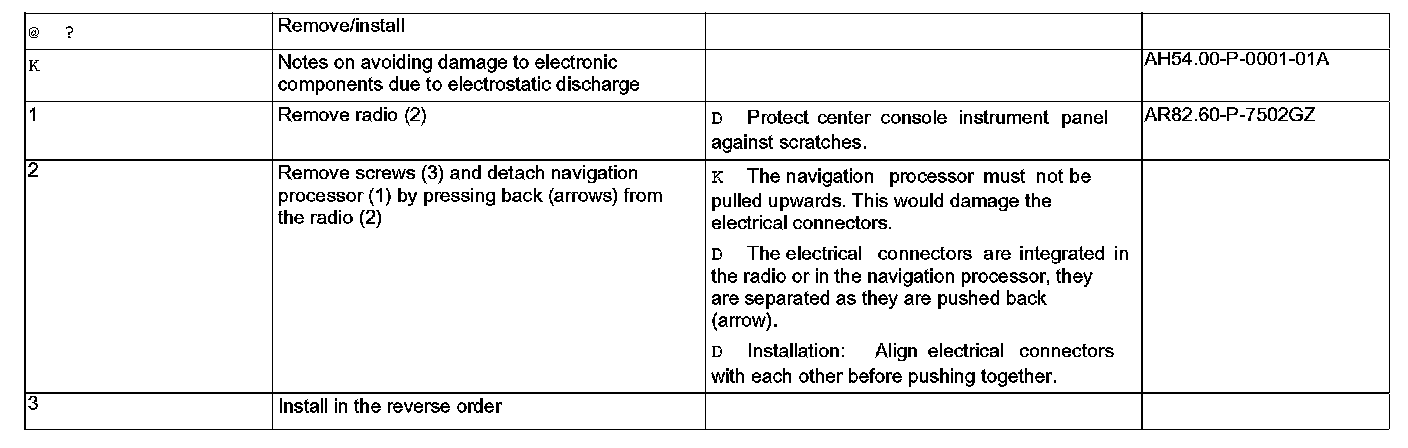

Steps 1 - 3:
