Home >> Mercedes Benz Truck >> 2009 >> ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Emergency Contact Module >> Description and Operation >> GF82.95-P-0004-01GQU Emergency Call System, Location Of Components

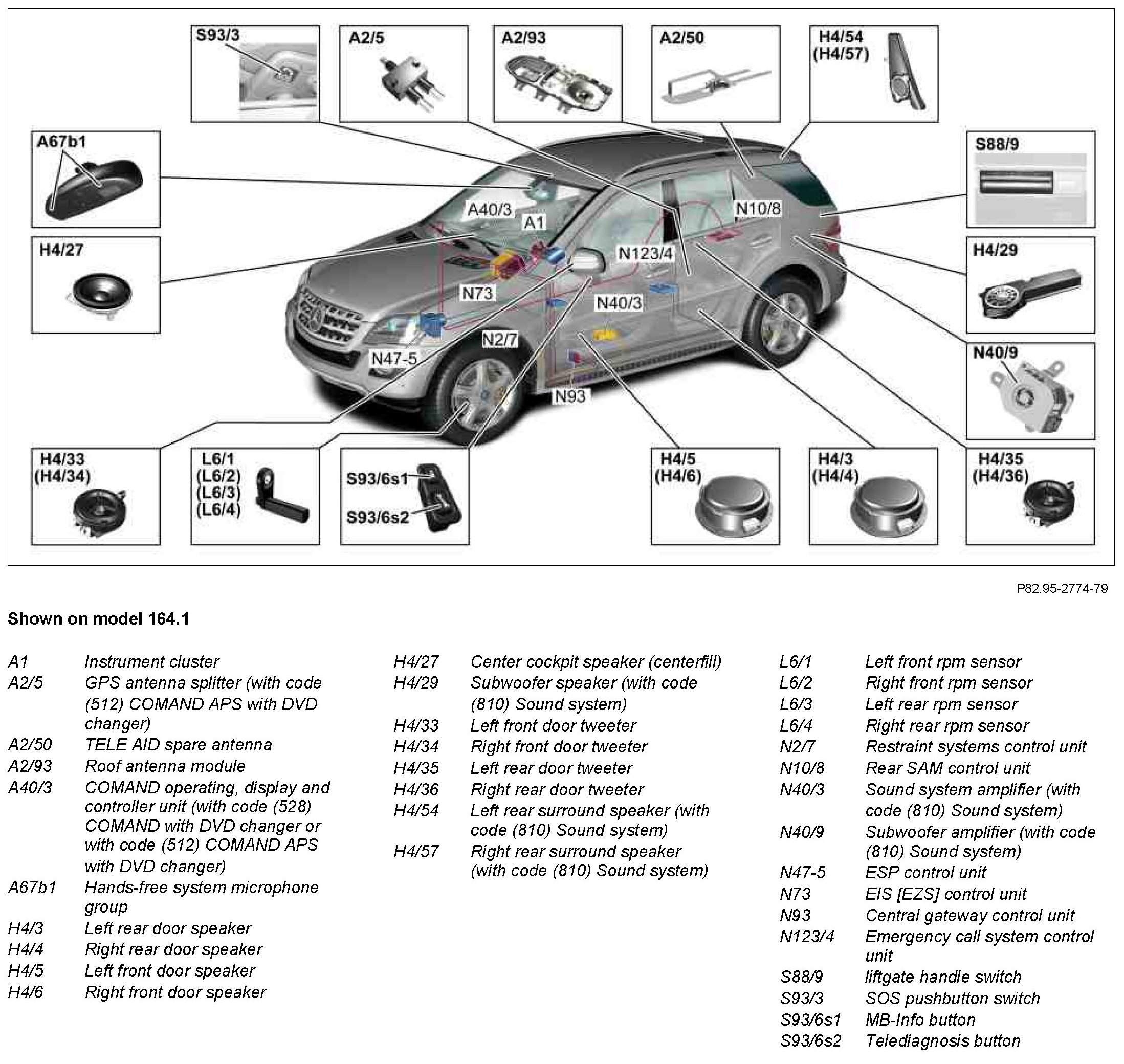

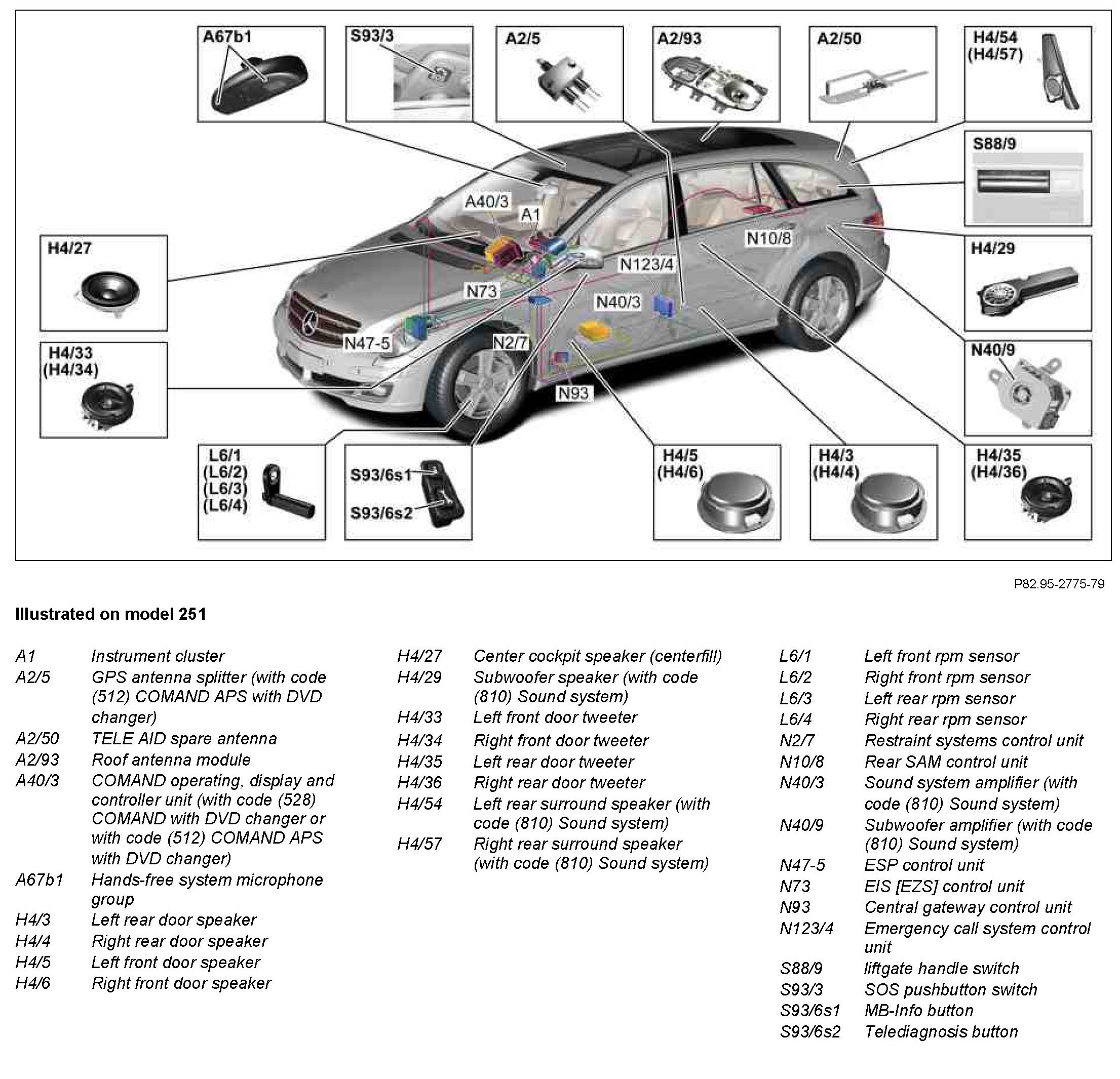

GF82.95-P-0004-01GQU Emergency Call System, Location Of Components



GF82.95-P-0004-01GQU Emergency Call System, Location Of Components
- with CODE (359) TELE AID emergency call system



Component Identification:





Component Identification:
