AR65.10-P-9080-05GZ Apply Adhesive Material To Antenna Module Cover

AR65.10-P-9080-05GZ Apply Adhesive Material To Antenna Module Cover

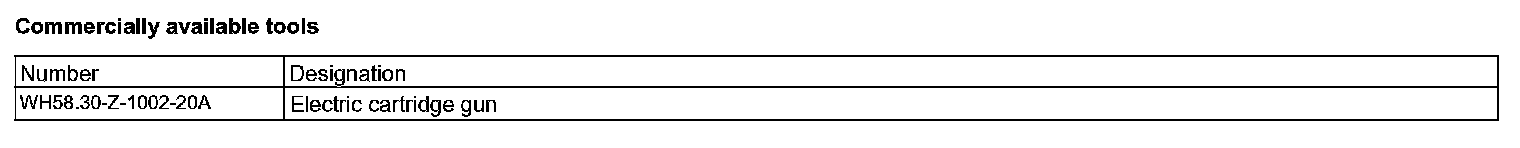

Commercially Available Tools:

Repair Materials:

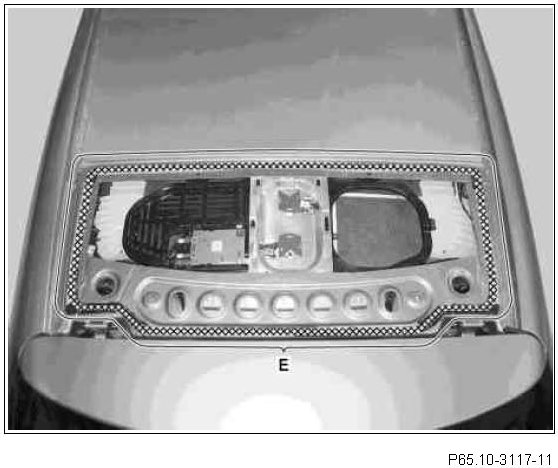

Wear cotton gloves. Ensure that there are no fingerprints on the bonding surface (area E).

1. Cut triangular opening in application nozzle so that adhesive can be applied with a height of approx 14 mm and a width of approx. 8 mm.
2. Guide application nozzle along bonding surface (area E) on body flange, squeezing out adhesive evenly.

Remove contamination caused by the adhesive immediately. Completely squeeze out excess adhesive from cartridges immediately after applying adhesive and dispose of adhesive as per local regulations.
