Control Unit: Service and Repair



AR35.40-P-7500GZ Remove/install differential lock control unit
- with CODE (430) Offroad package

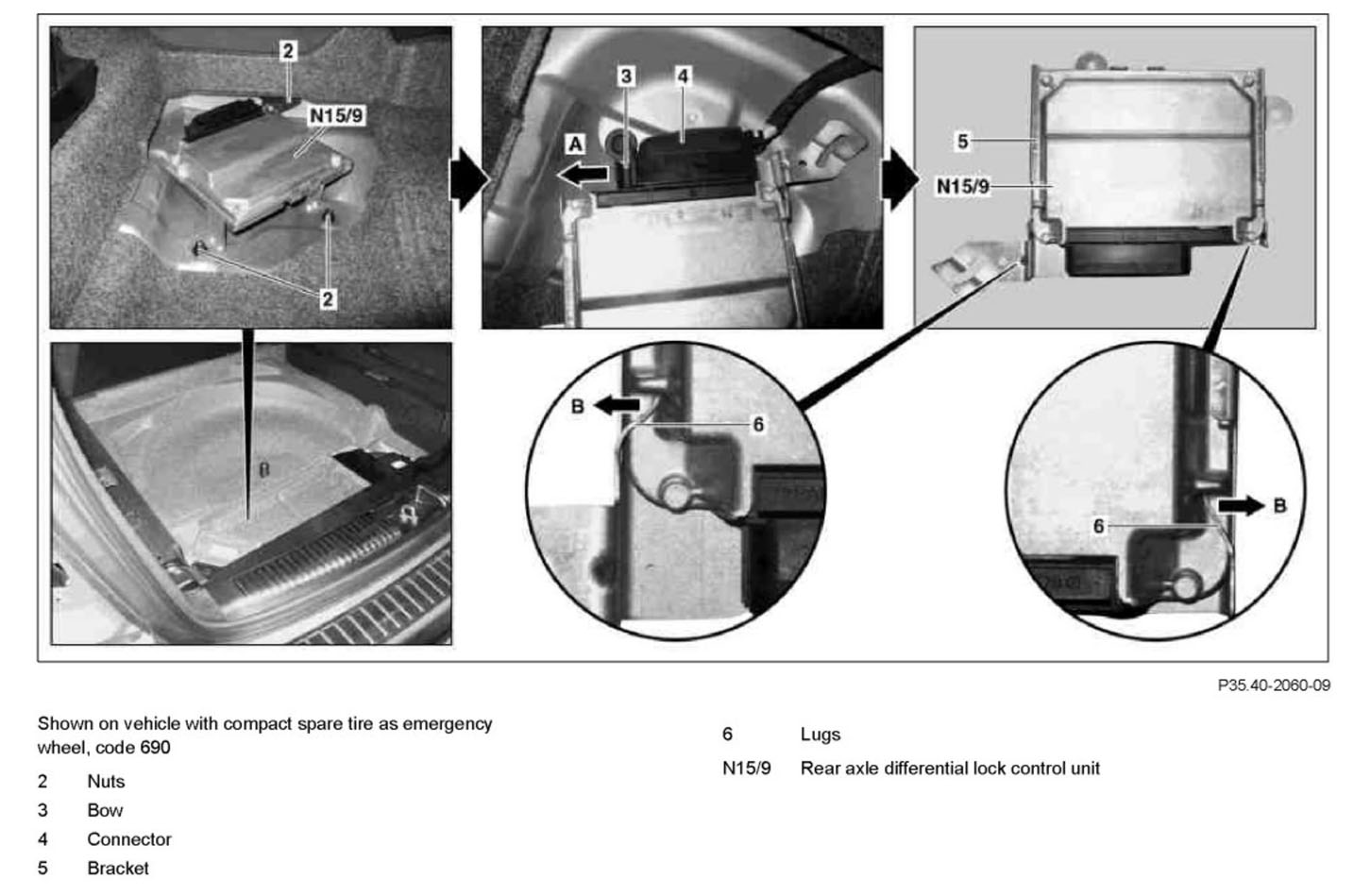

Component Identification:

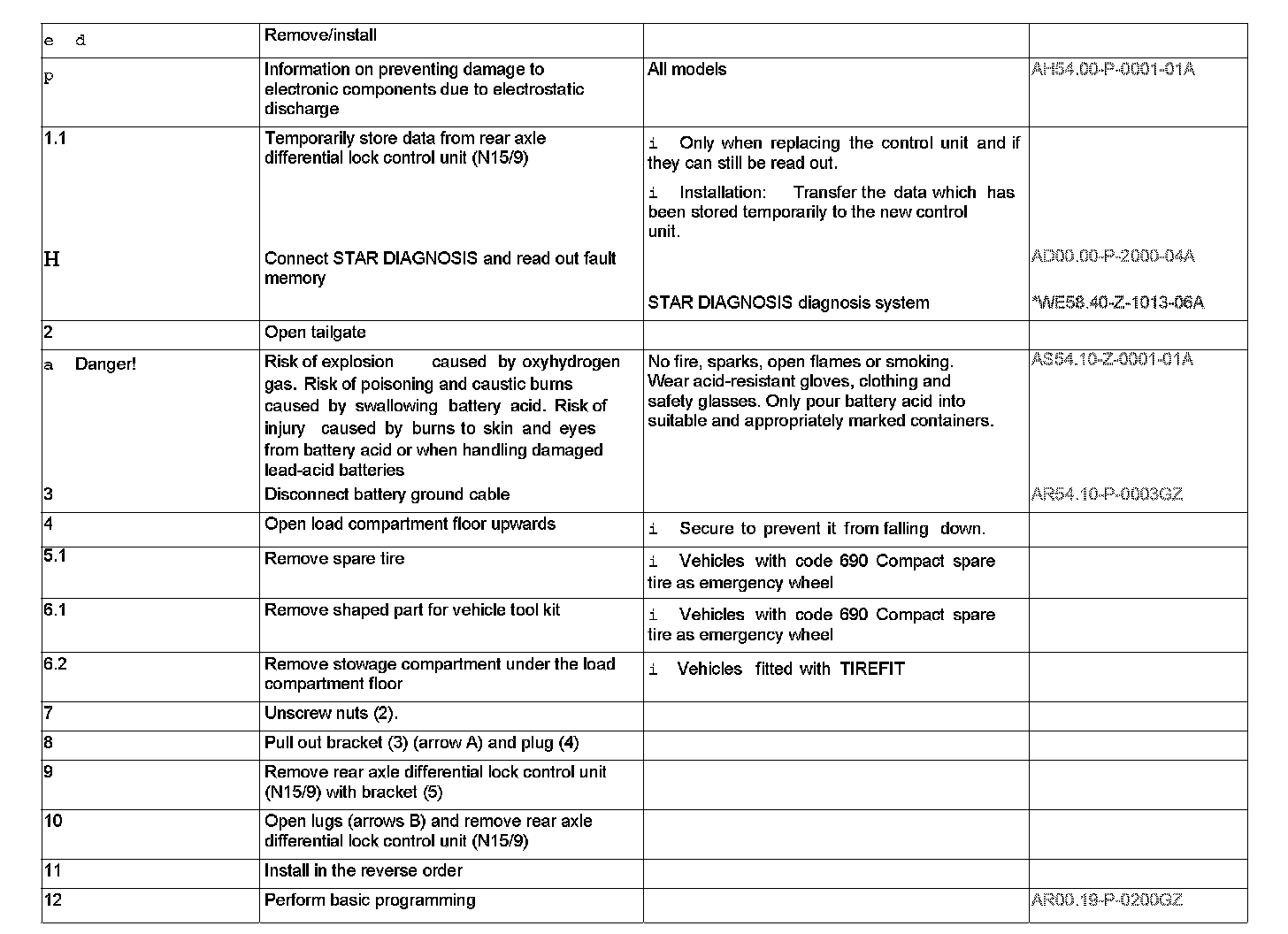

Steps 1-12:




Workshop equipment/MB testers:
