GF07.16-P-0001-14OGG Common Rail Diesel Injection (CDI) Location of Components on Engine



GF07.16-P-0001-14OGG Common Rail Diesel Injection (CDI) Location Of Components On Engine
- as of model year 09

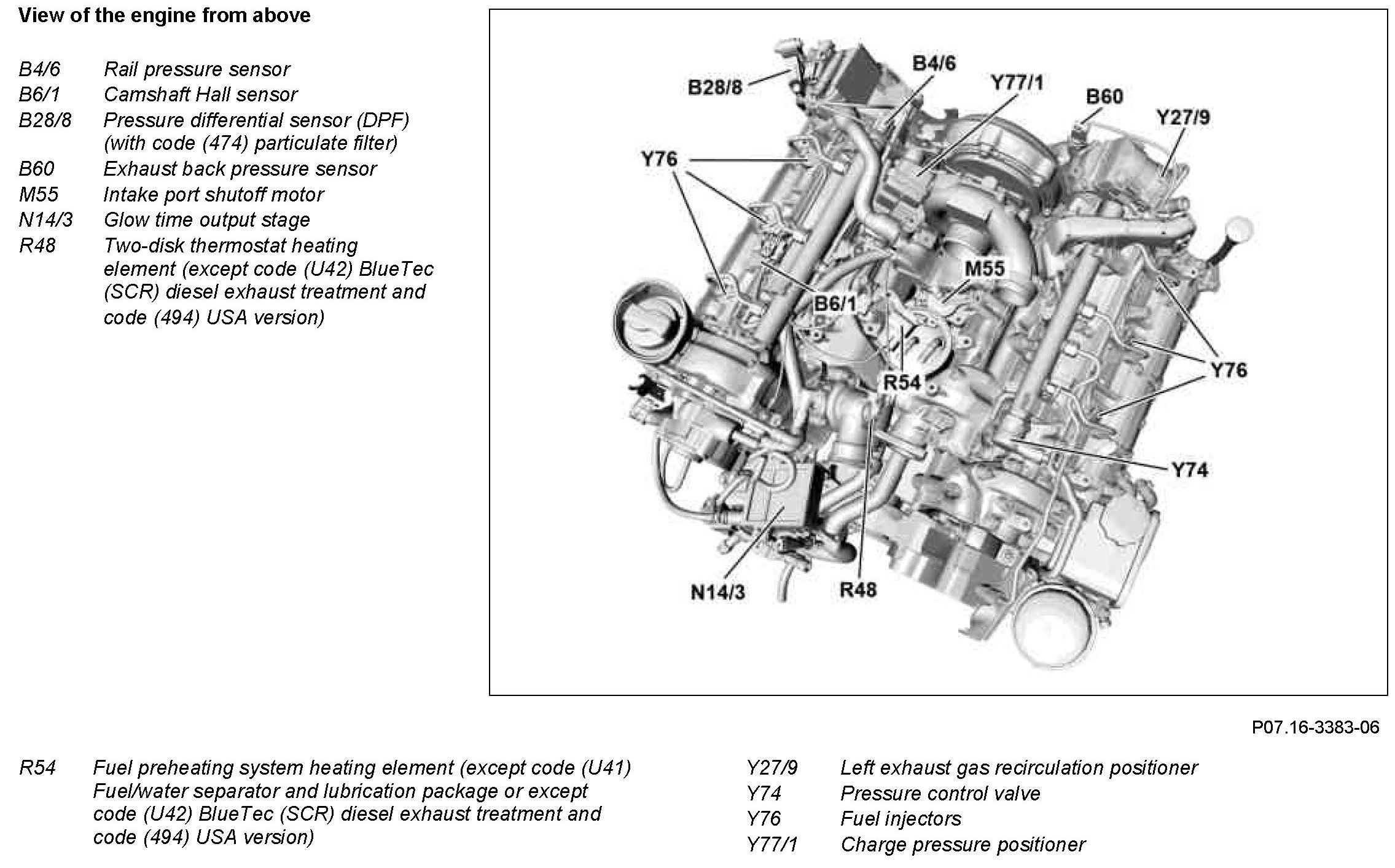

Component Identification:

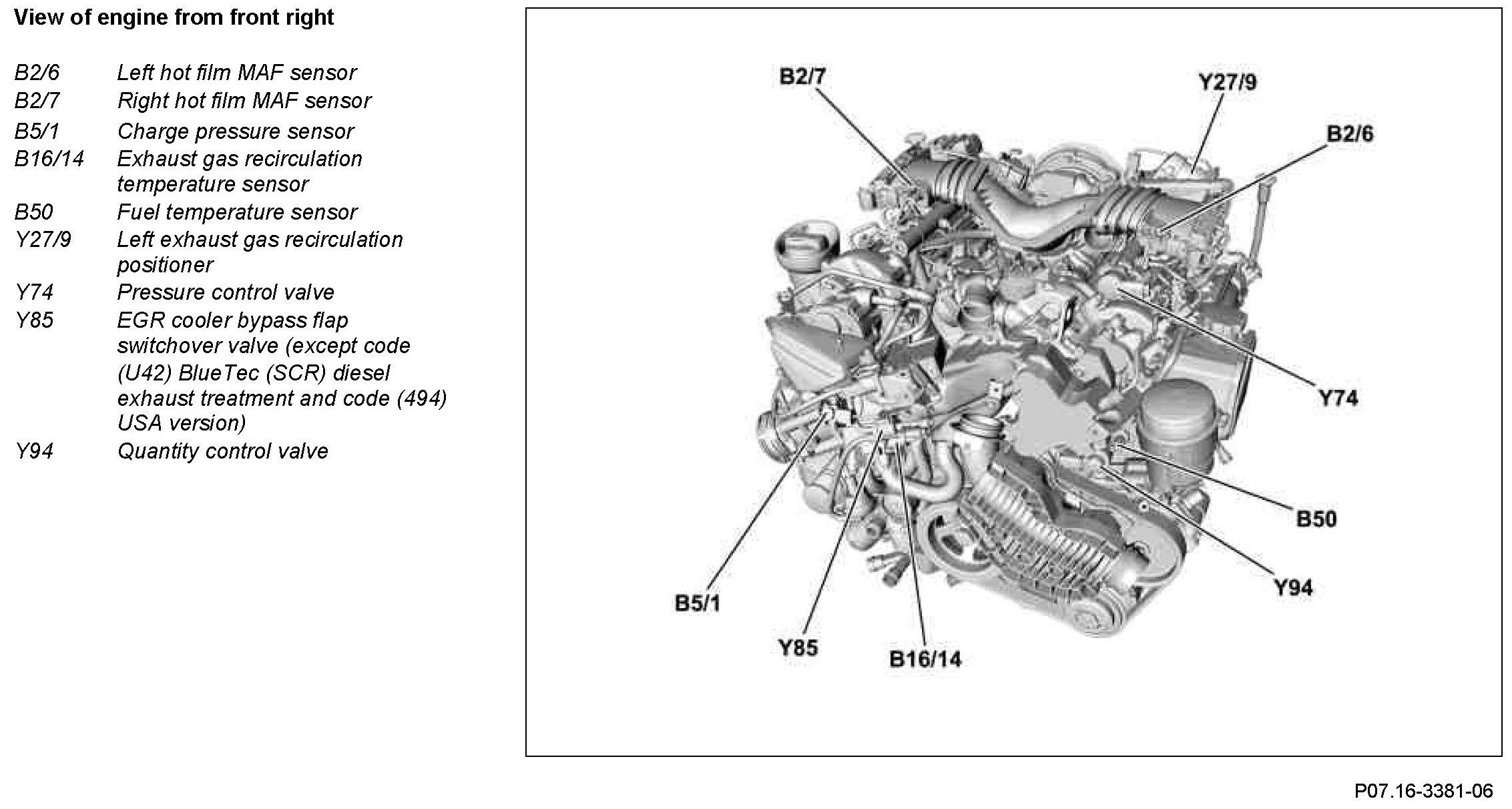

Component Identification:





Component Identification:
