Mercedes Benz Truck
>>
2009
>>
ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Tank
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
Remove/Install
Fuel Tank

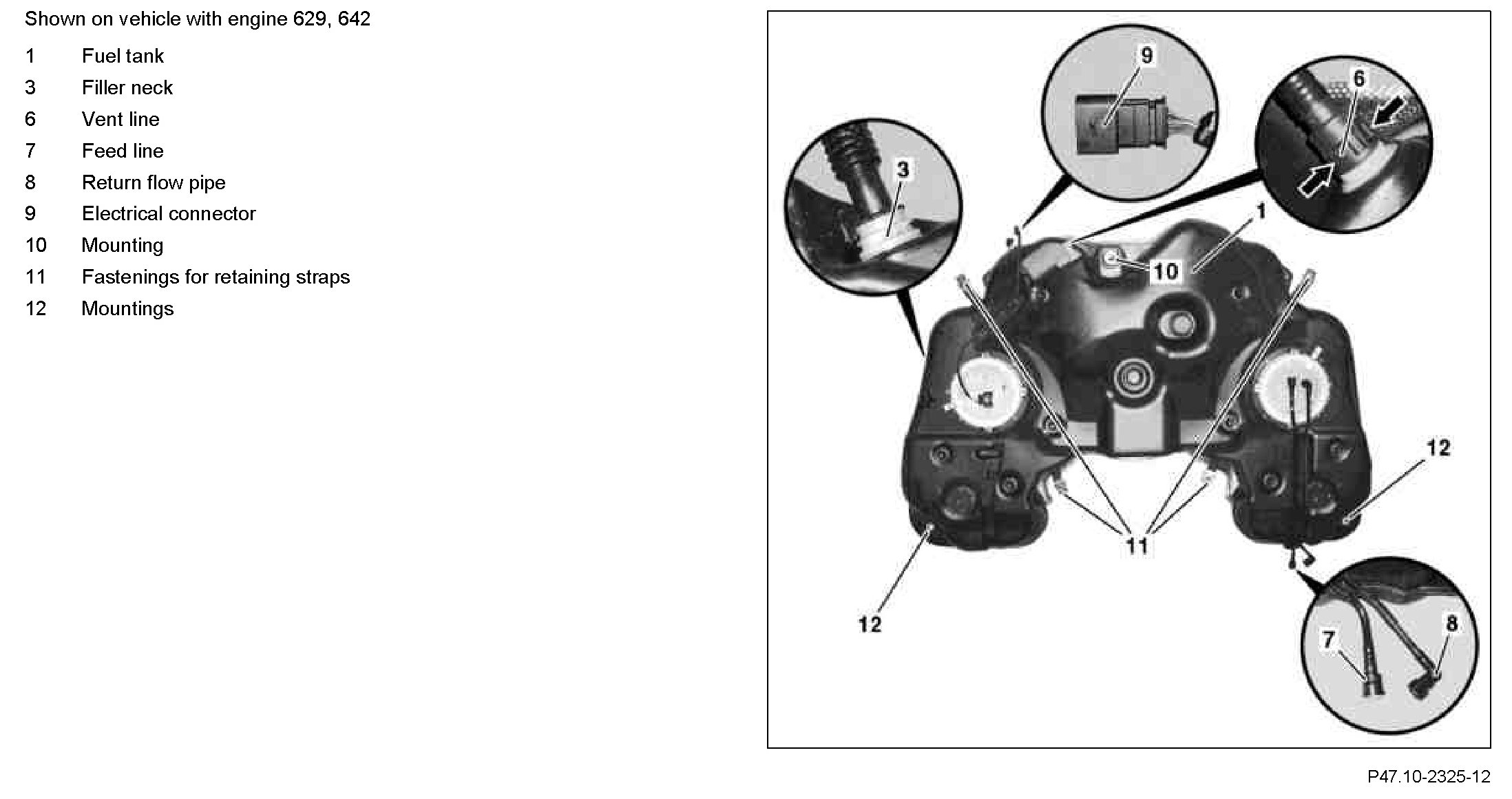

Component Identification:

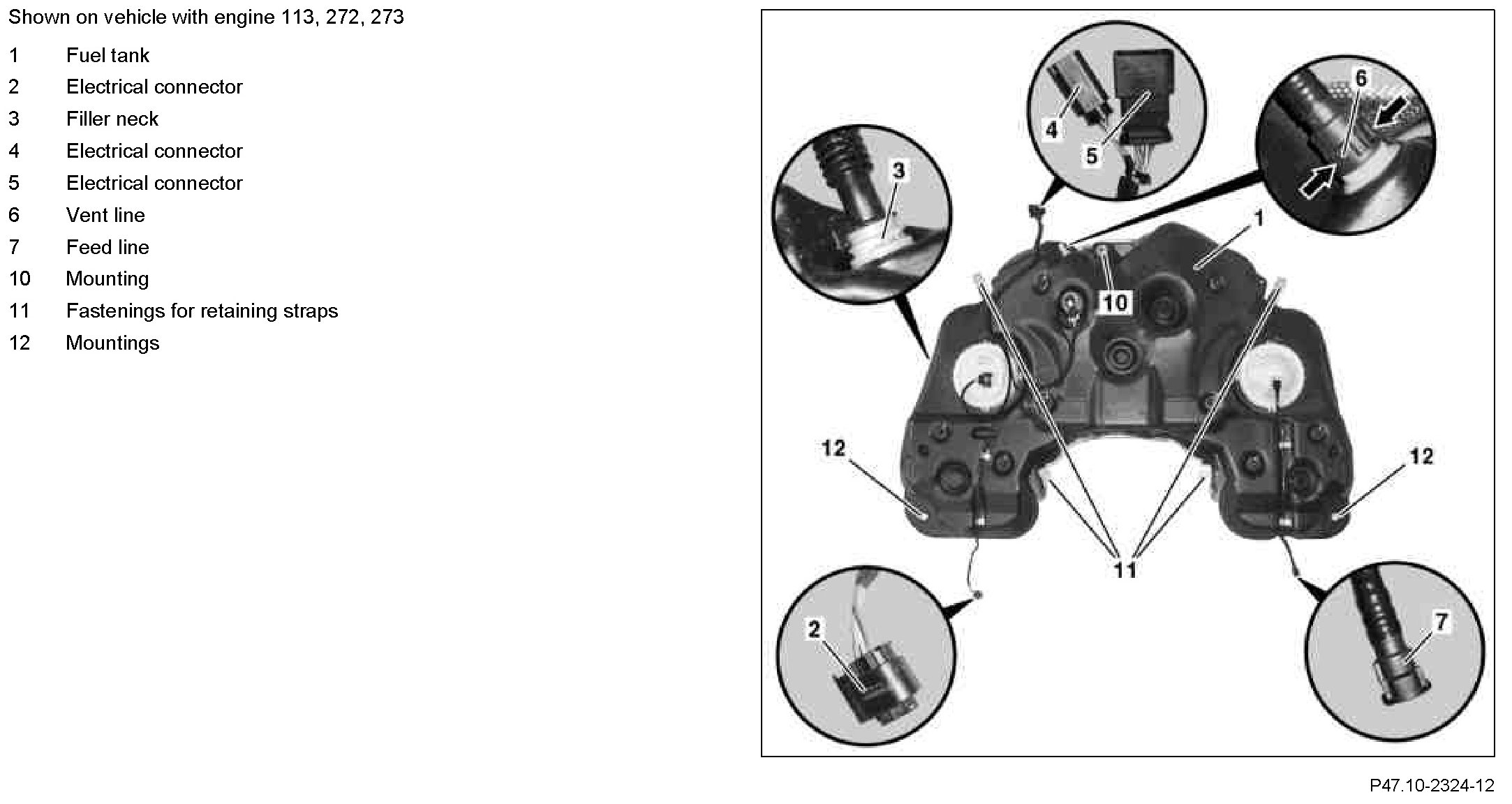

Component Identification:

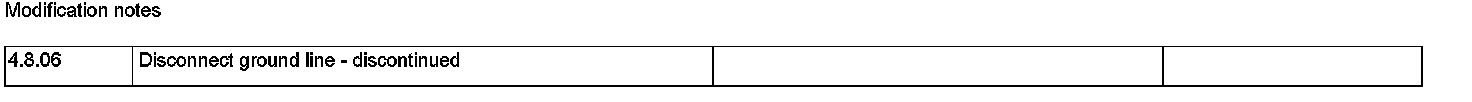

Modification Notes:

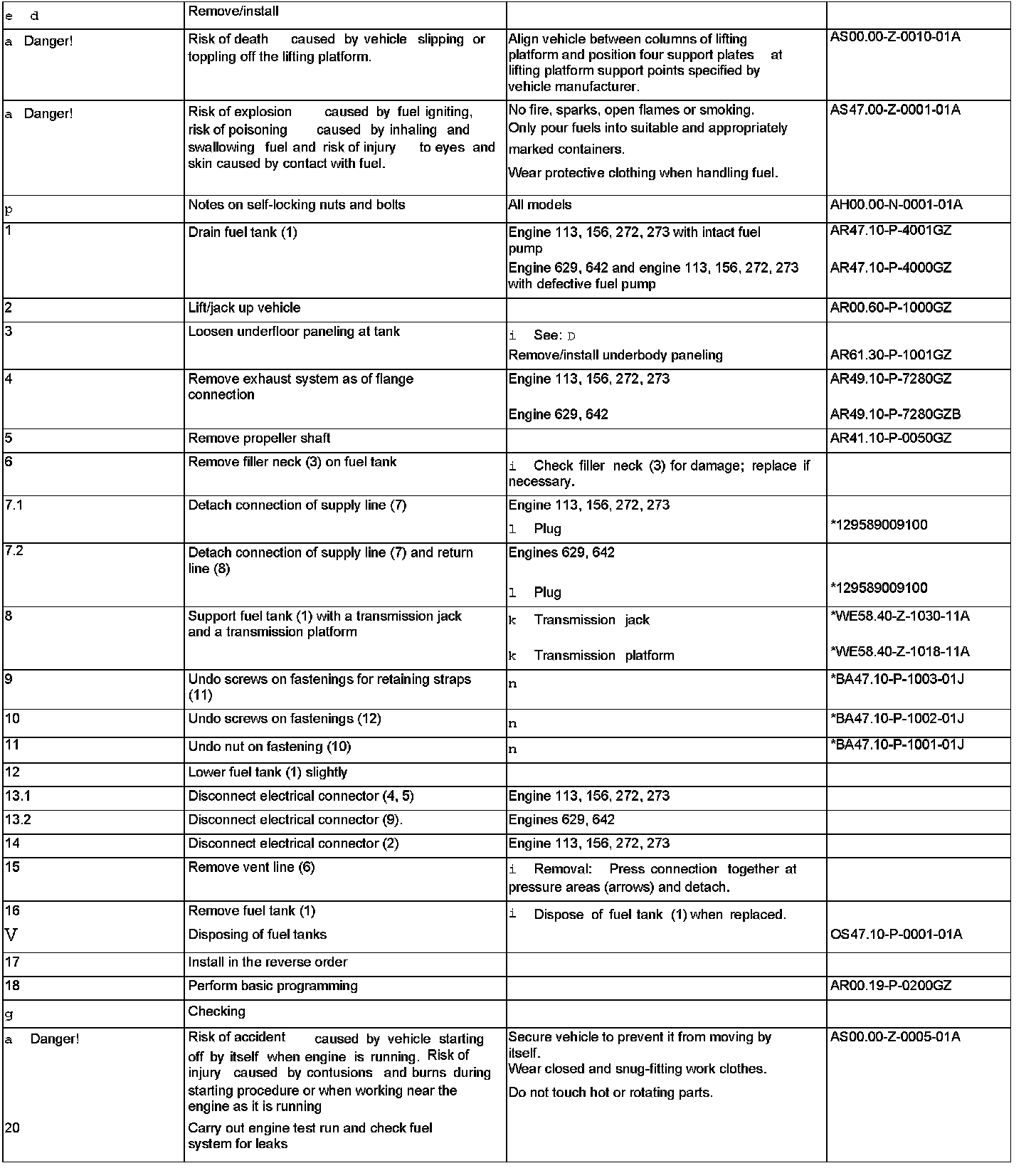

Steps 1 - 20:

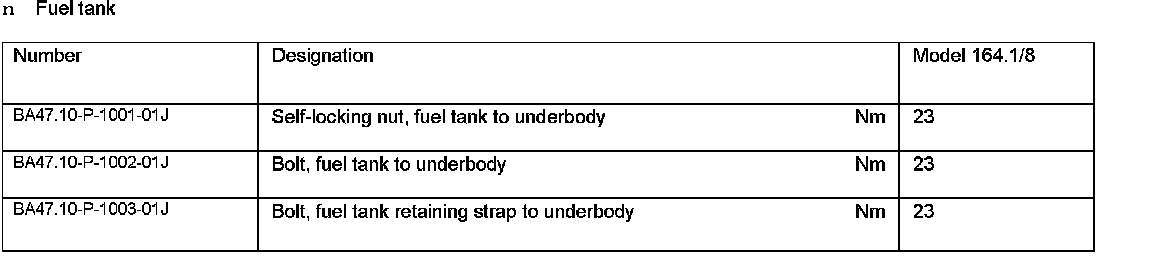

Fuel Tank:

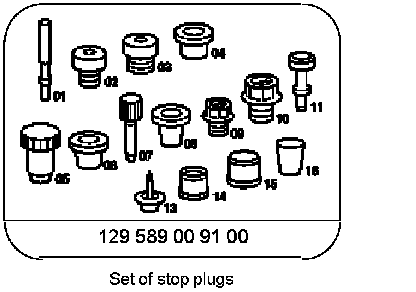

Special Tools:

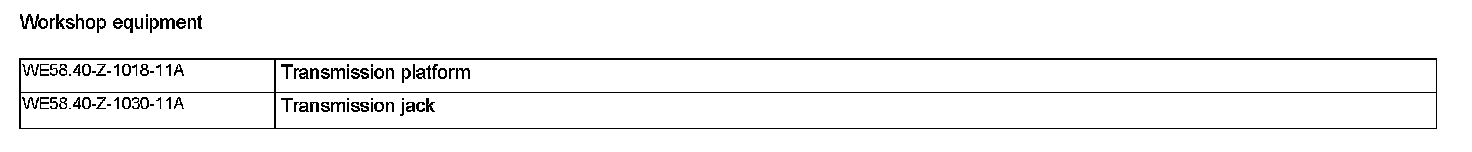

Workshop Equipment:
